Container catalogue

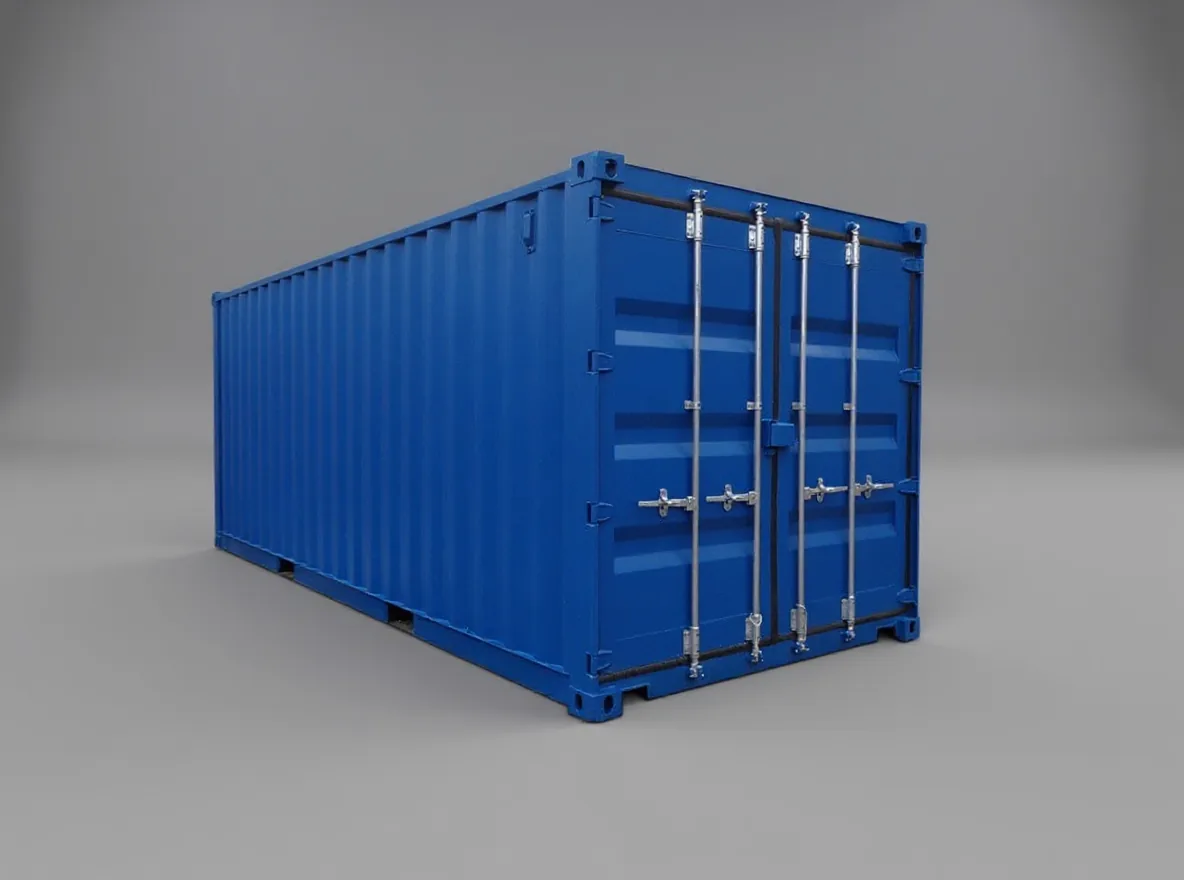

20 ft Low Cube Container One way

20 ft box at the 2438 mm ISO 1C height, doors at one end.

Length

6 058 mm

Width

2 438 mm

Height

2 438 mm

Max payload

28 330 kg

Internal volume

31 m³

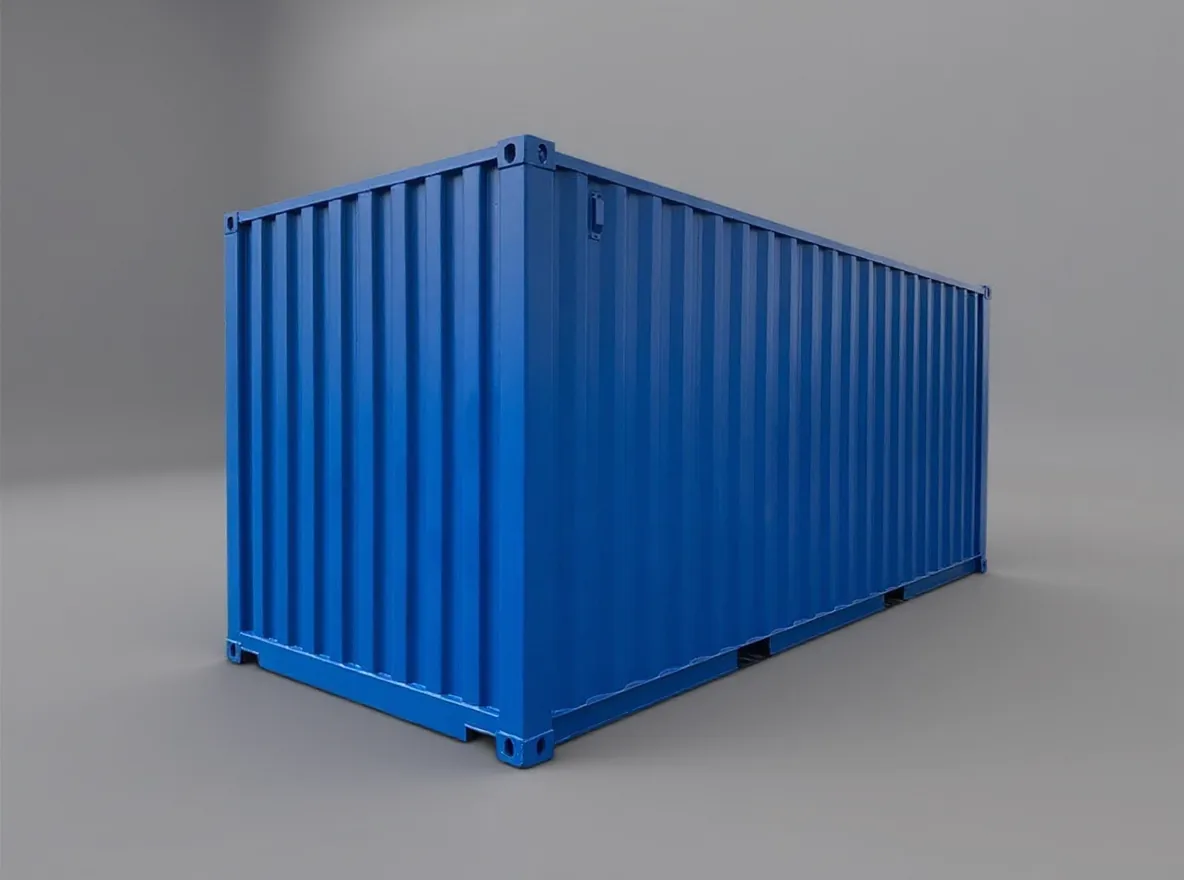

20 ft Standard Dry Van Container One way

The baseline 20 ft general purpose box, doors at one end.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

28 480 kg

Internal volume

33 m³

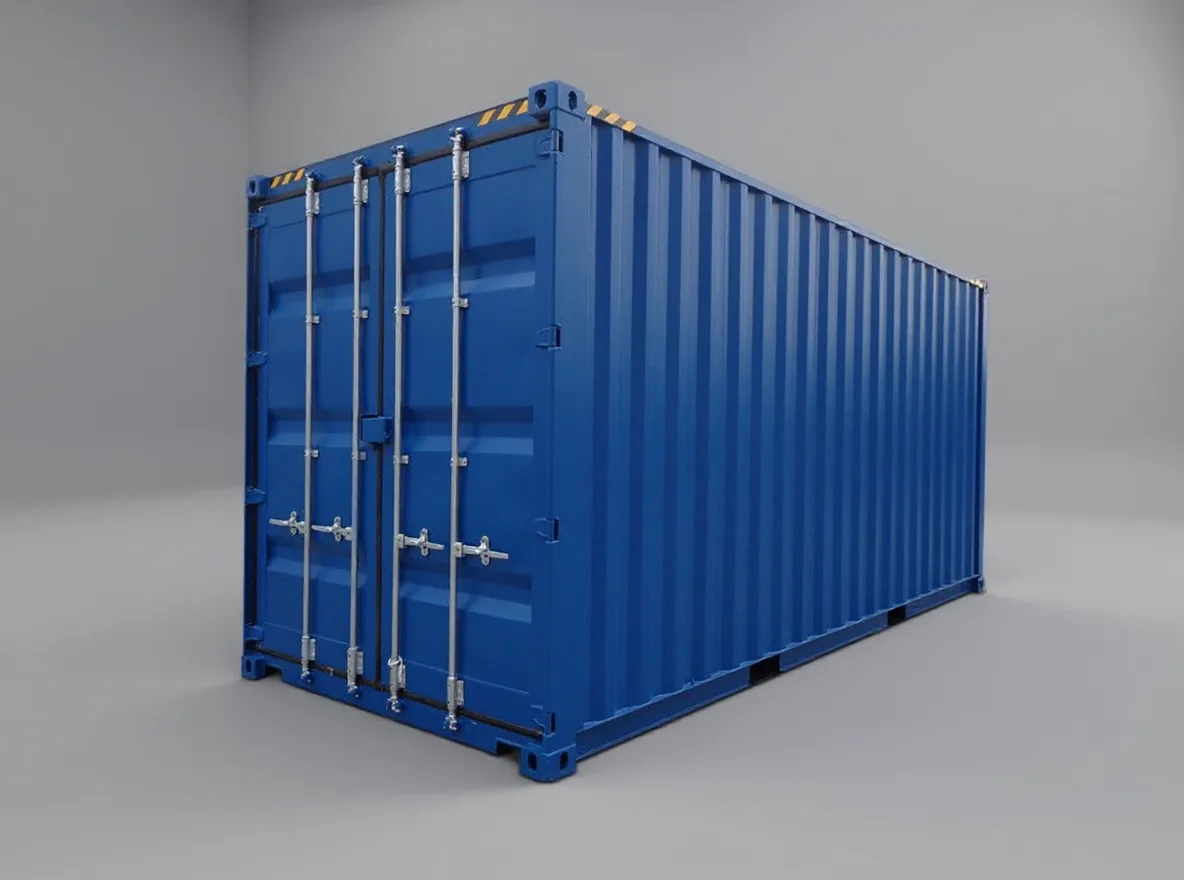

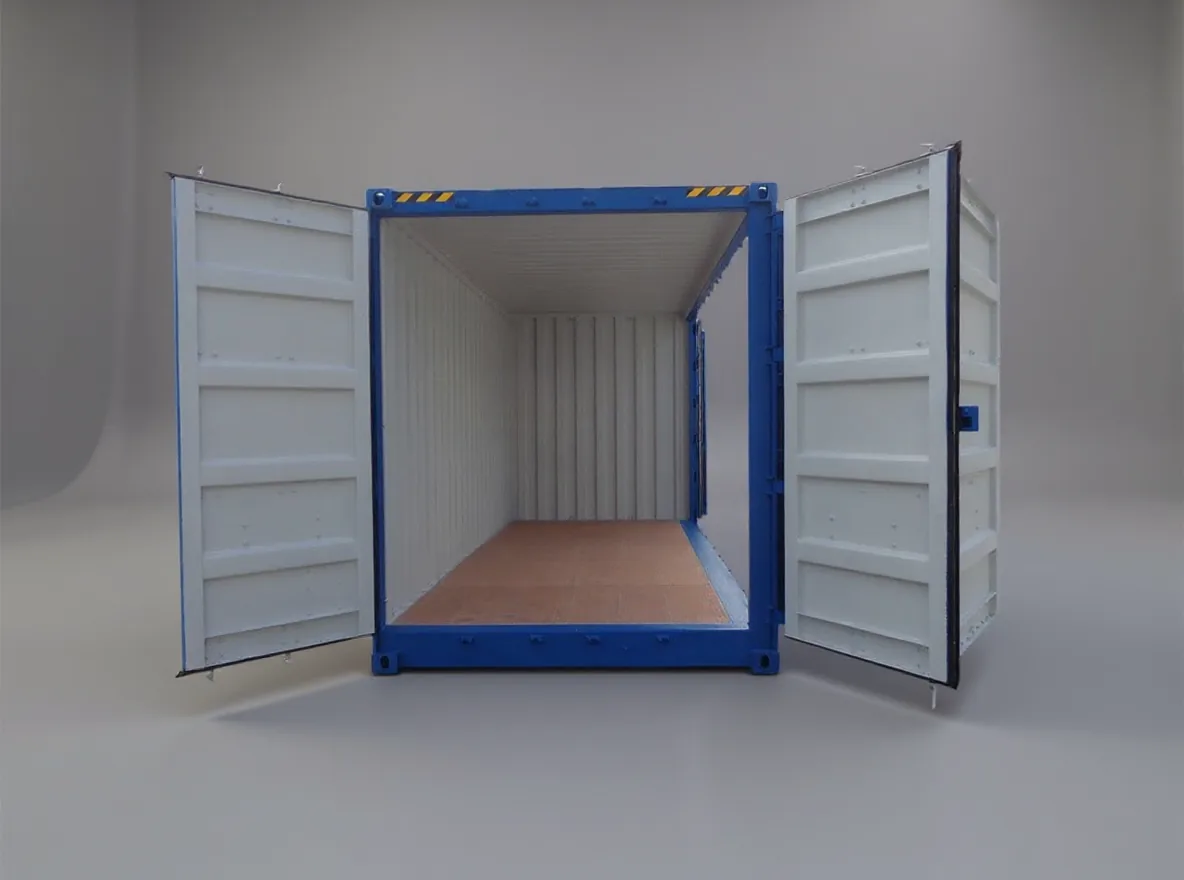

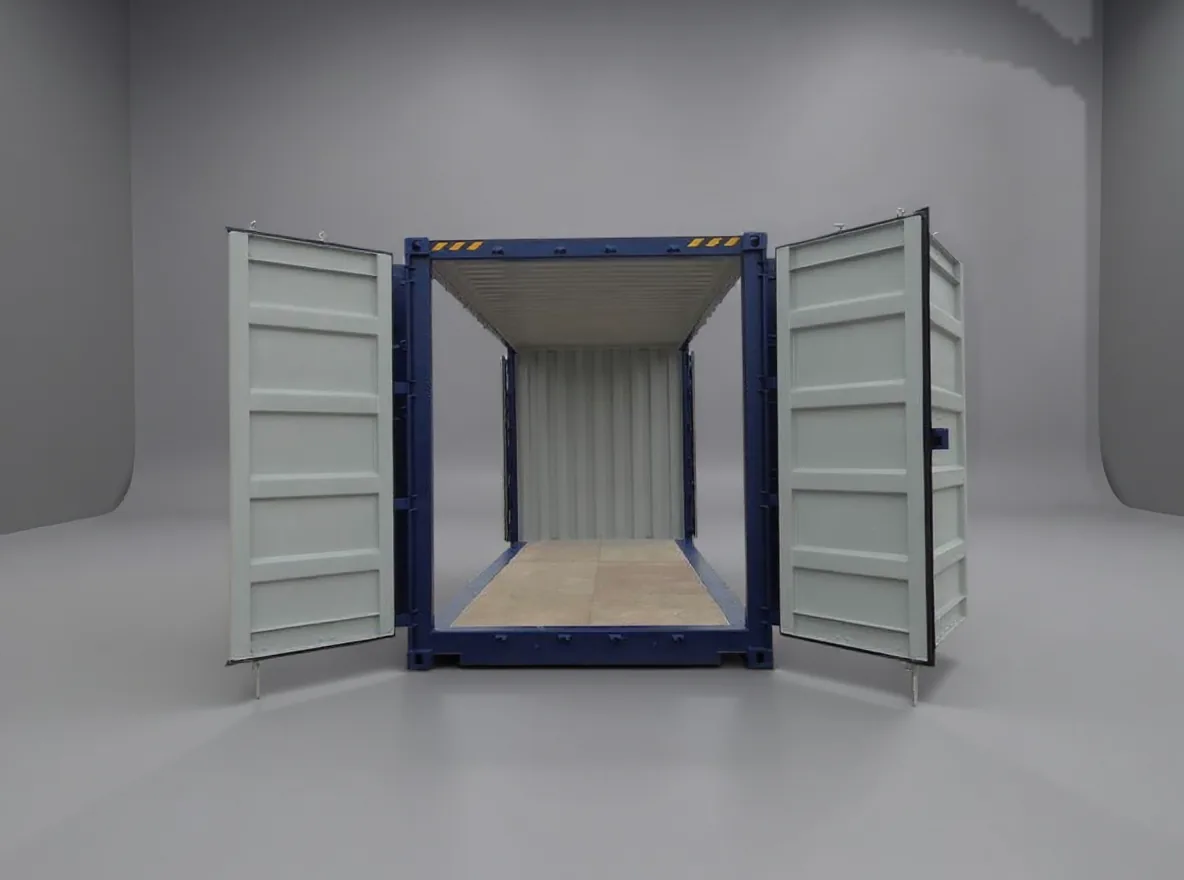

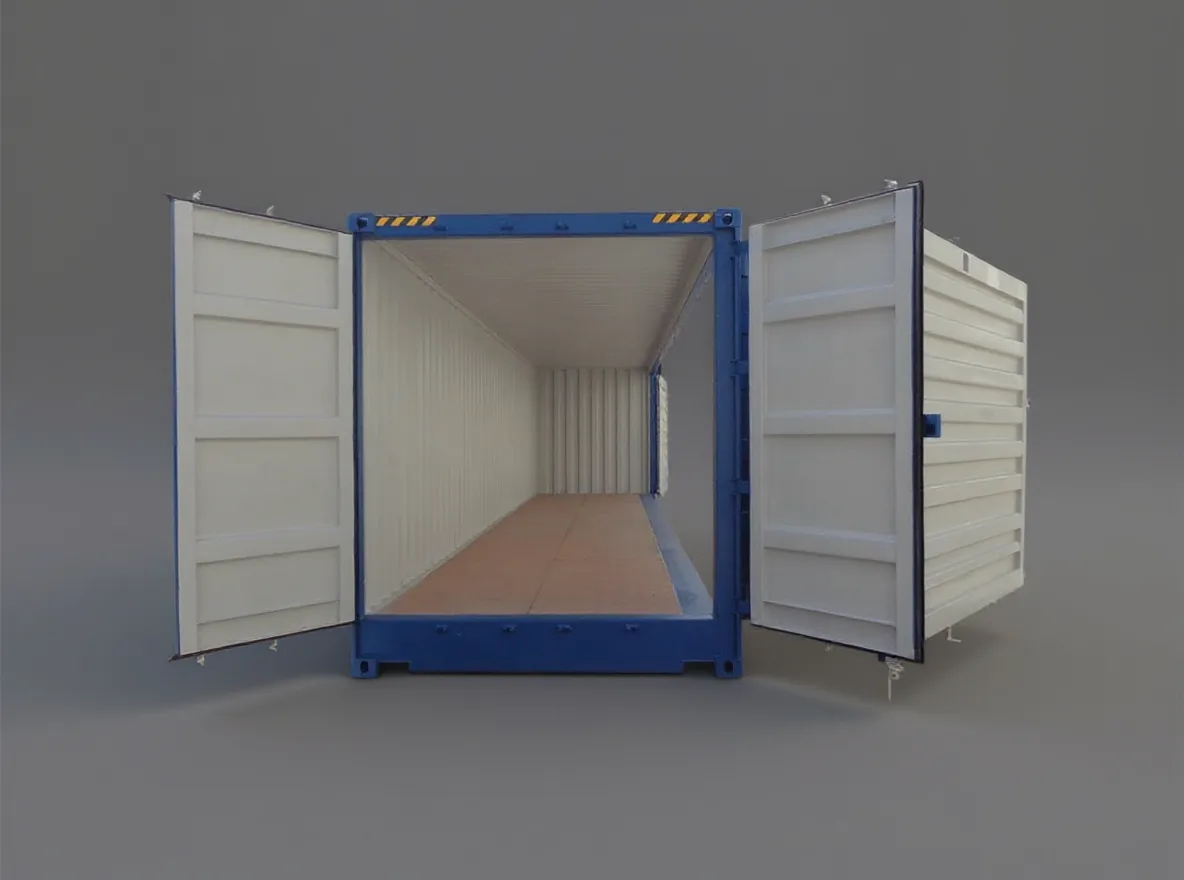

20 ft High Cube Container One way

20 ft box at 2896 mm high cube height, doors at one end.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

28 330 kg

Internal volume

37 m³

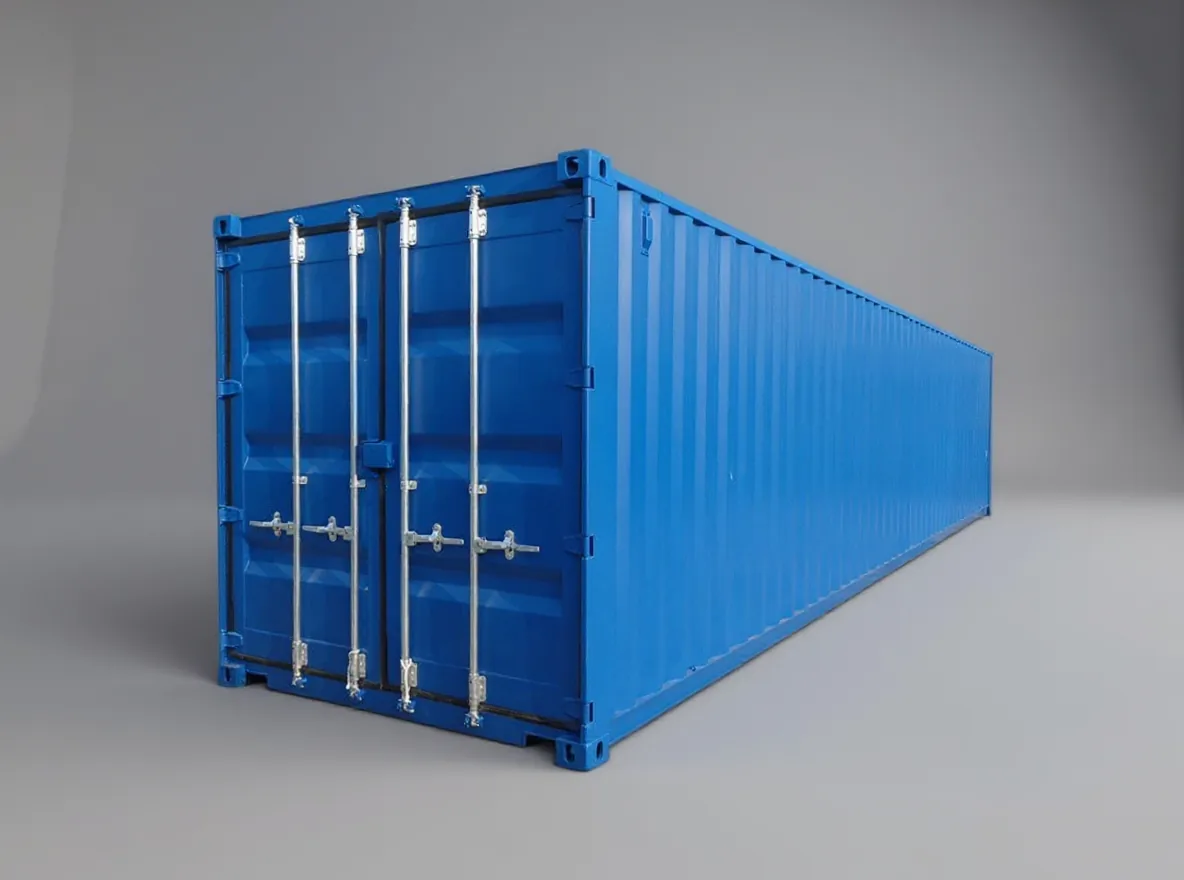

40 ft Standard Dry Van Container One way

The baseline 40 ft general purpose box, doors at one end.

Length

12 192 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 100 kg

Internal volume

68 m³

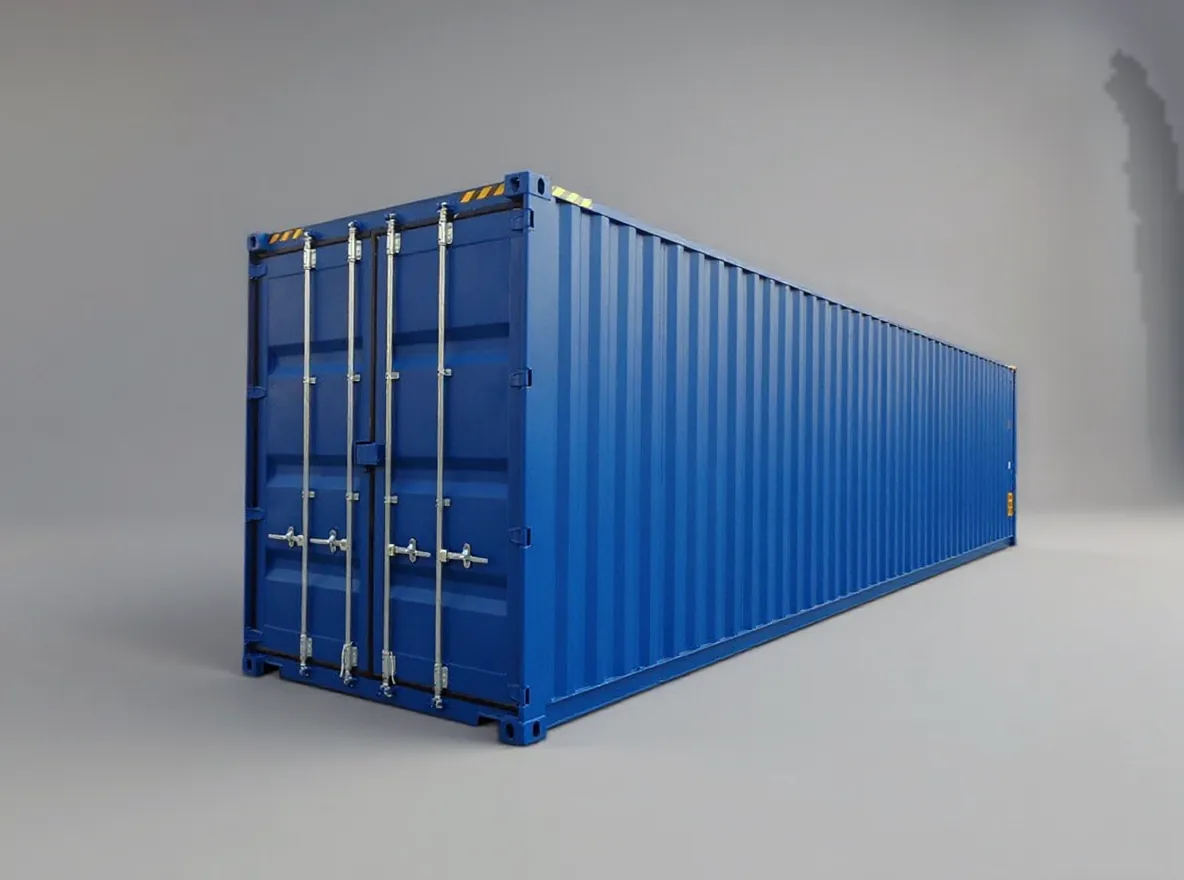

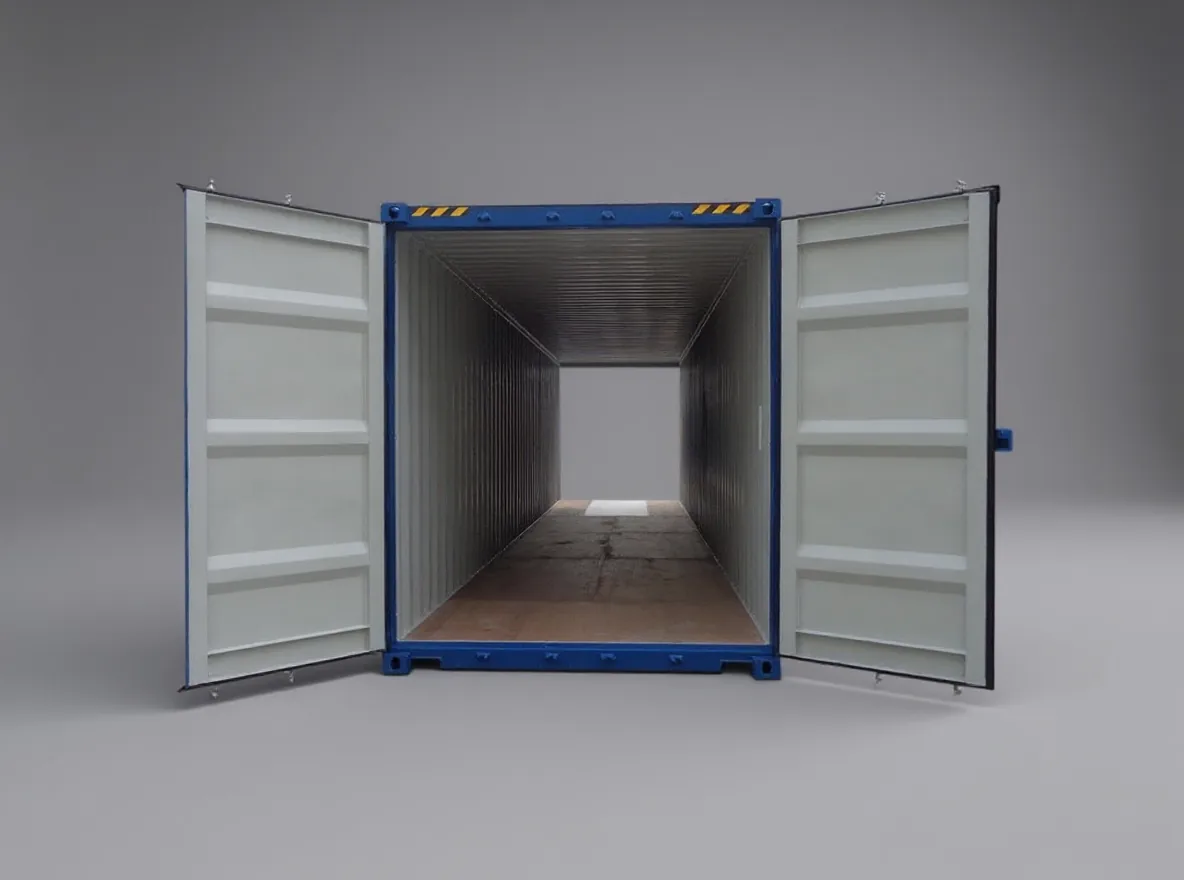

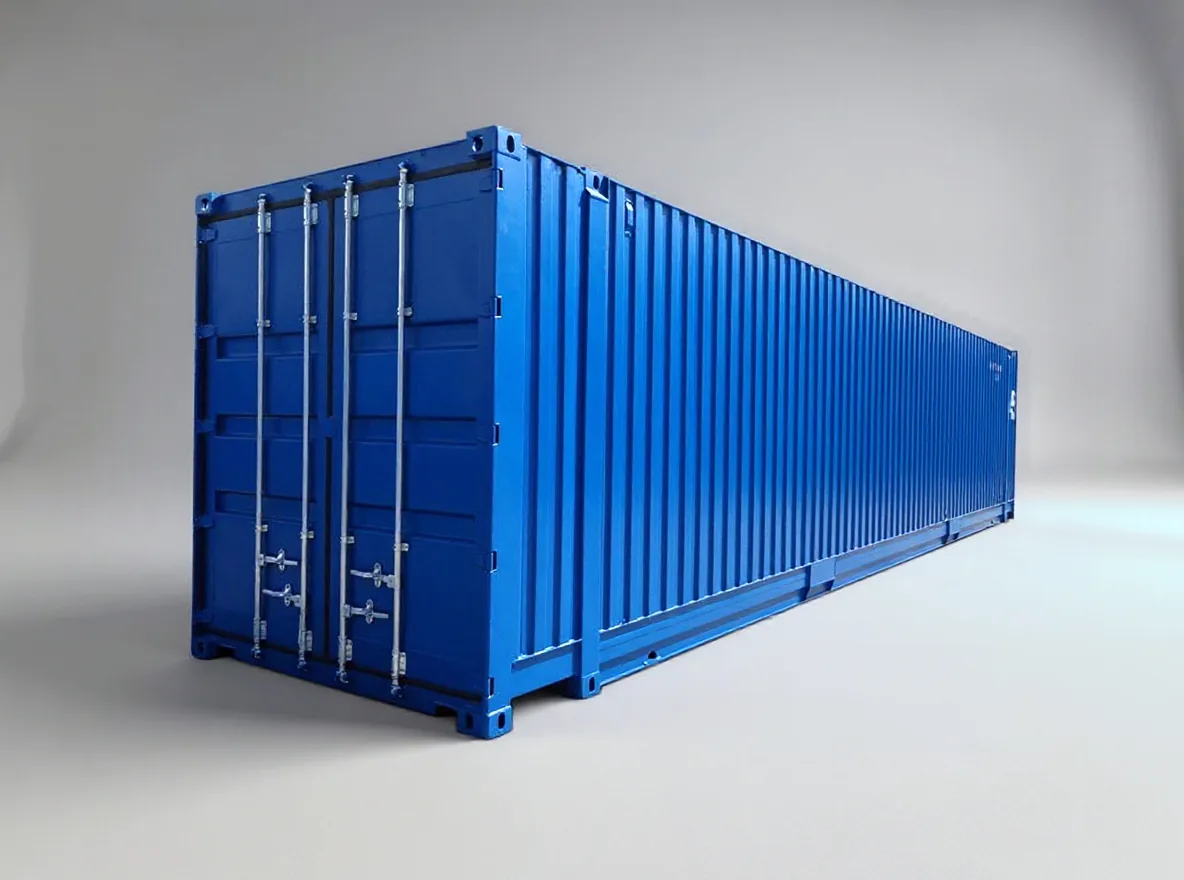

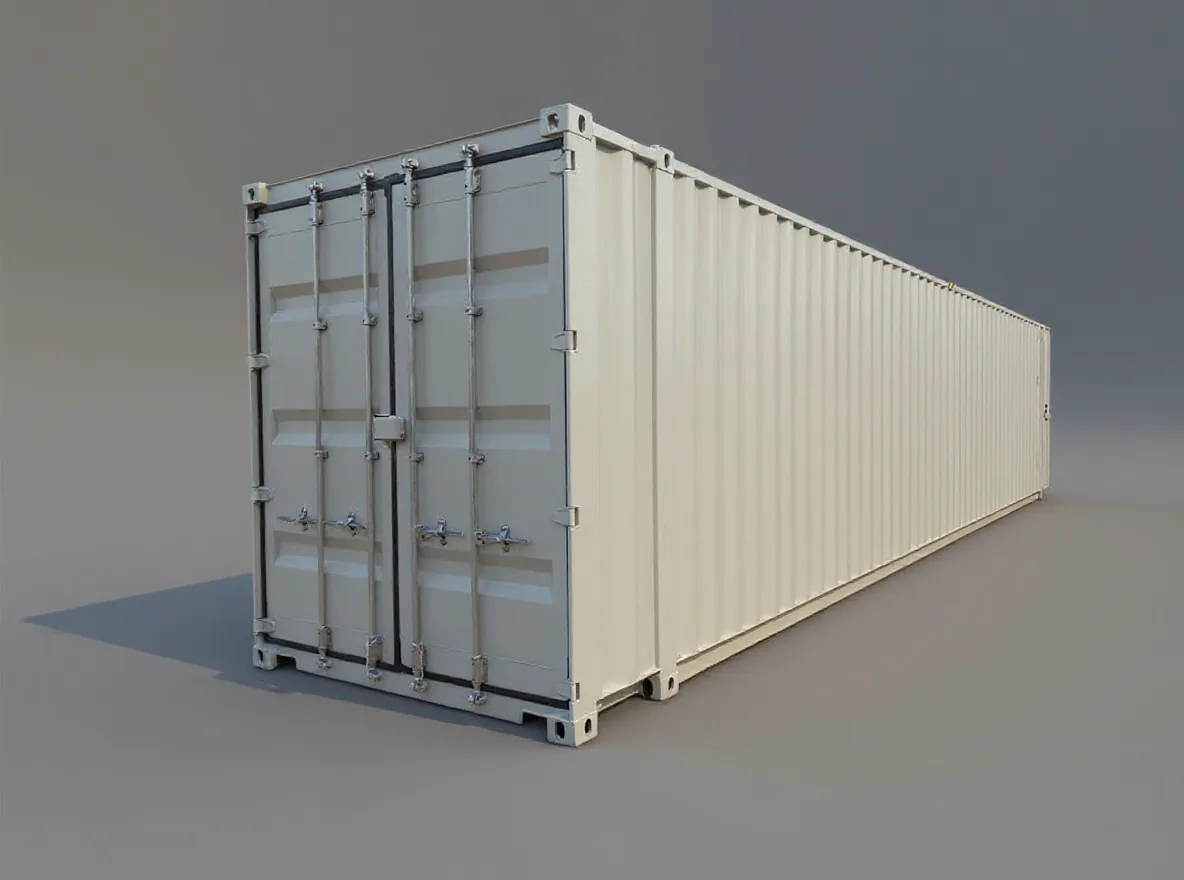

40 ft High Cube Container One way

40 ft box at 2896 mm high cube height, doors at one end.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

27 000 kg

Internal volume

76 m³

45 ft High Cube Container One way

45 ft high cube box on ISO 1EEE external dimensions.

Length

13 716 mm

Width

2 438 mm

Height

2 896 mm

Max payload

27 860 kg

Internal volume

86 m³

45 ft High Cube Pallet Wide Container One way

45 ft high cube widened to 2500 mm for two Euro pallets abreast.

Length

13 716 mm

Width

2 500 mm

Height

2 896 mm

Max payload

29 140 kg

Internal volume

89 m³

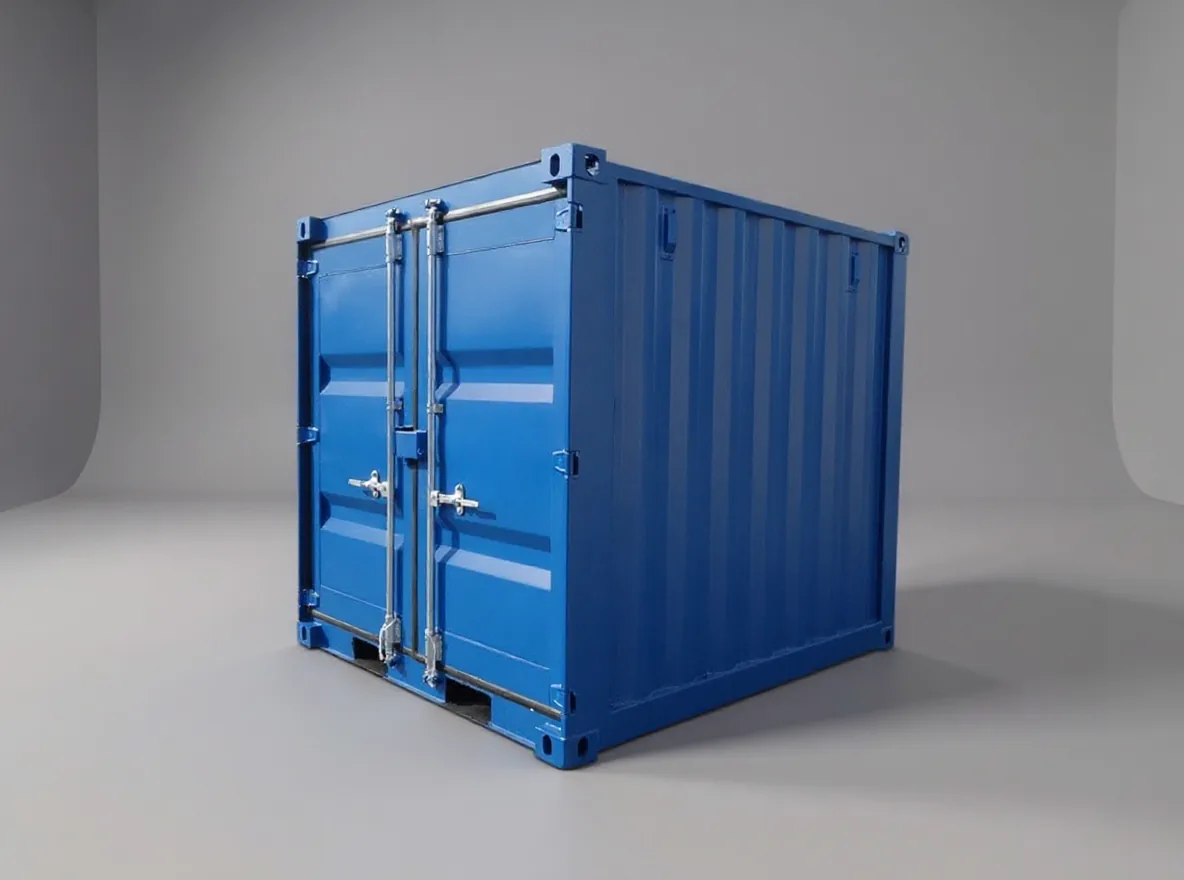

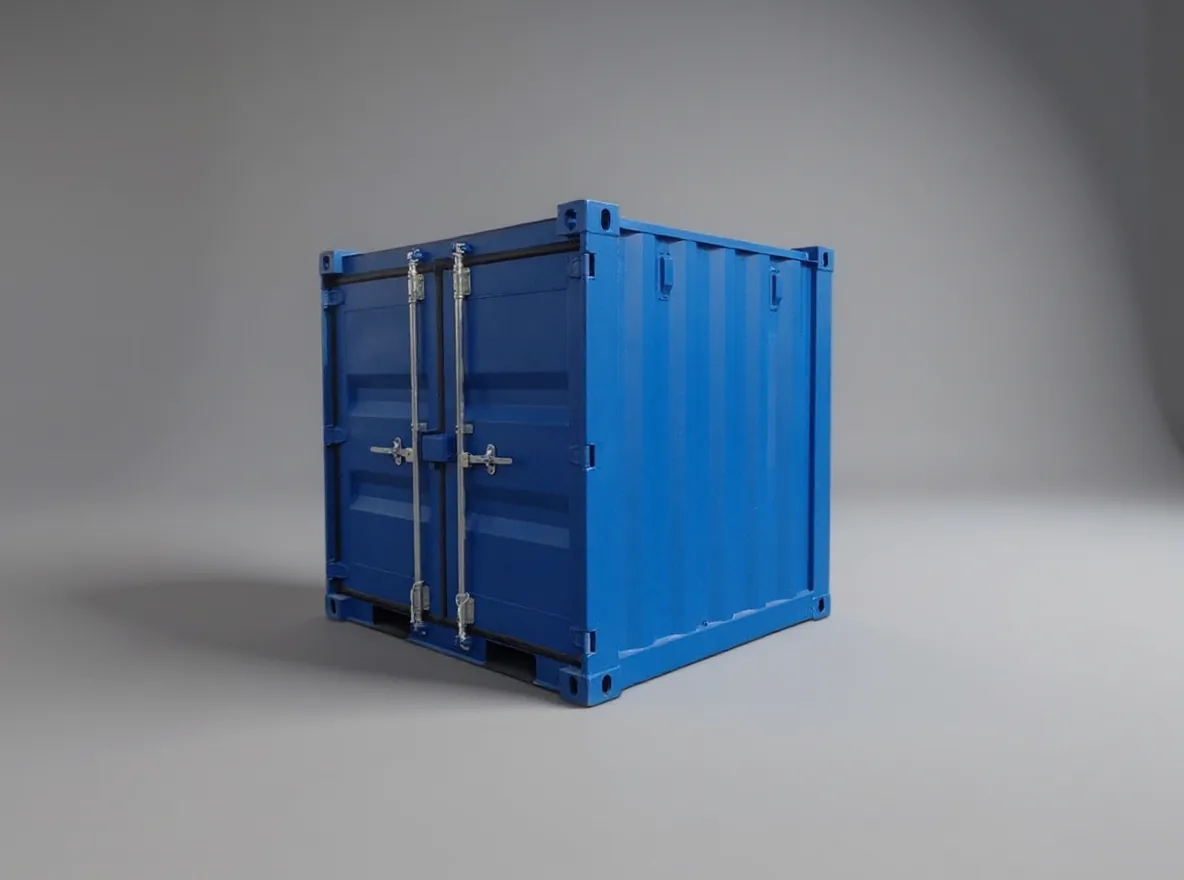

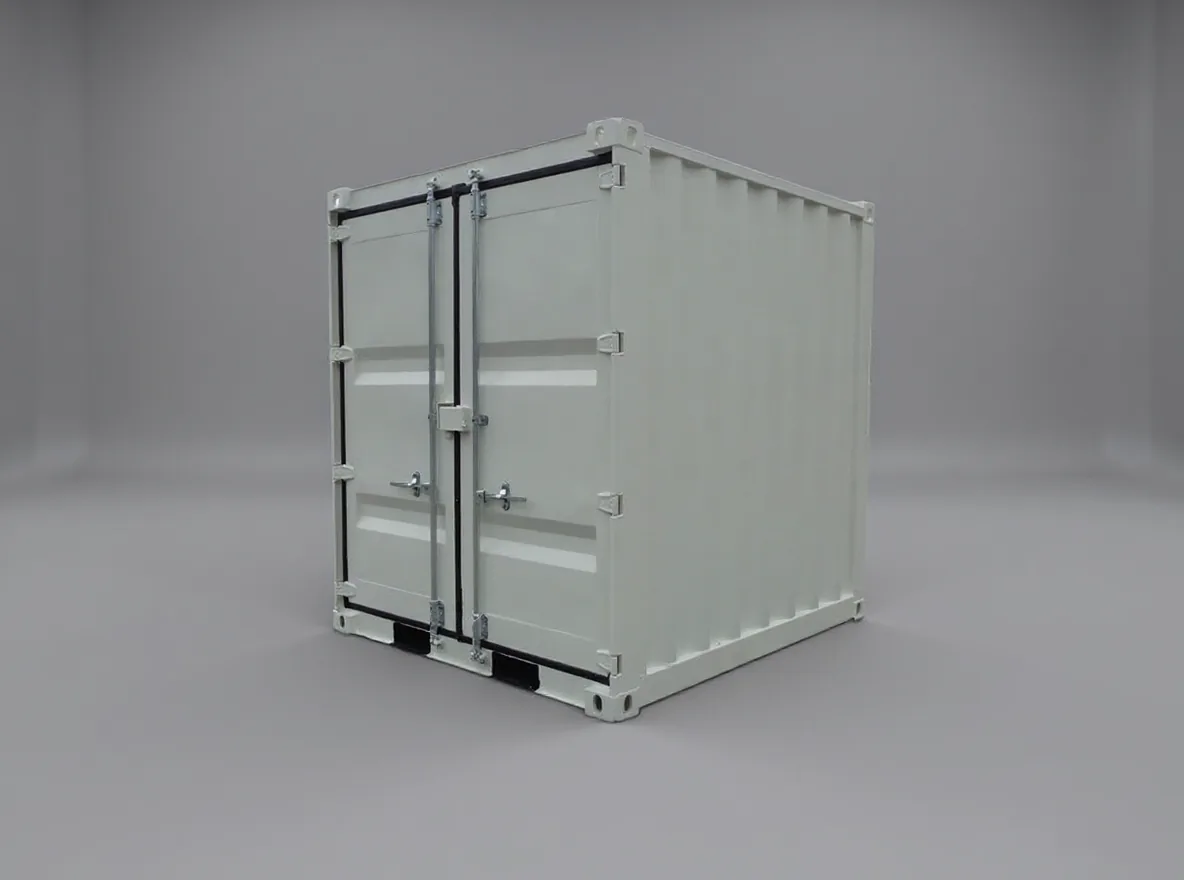

6 ft Mini Container One way

Smallest storage box in the range, non ISO footprint.

Length

1 829 mm

Width

1 960 mm

Height

1 920 mm

Max payload

4 400 kg

Internal volume

5 m³

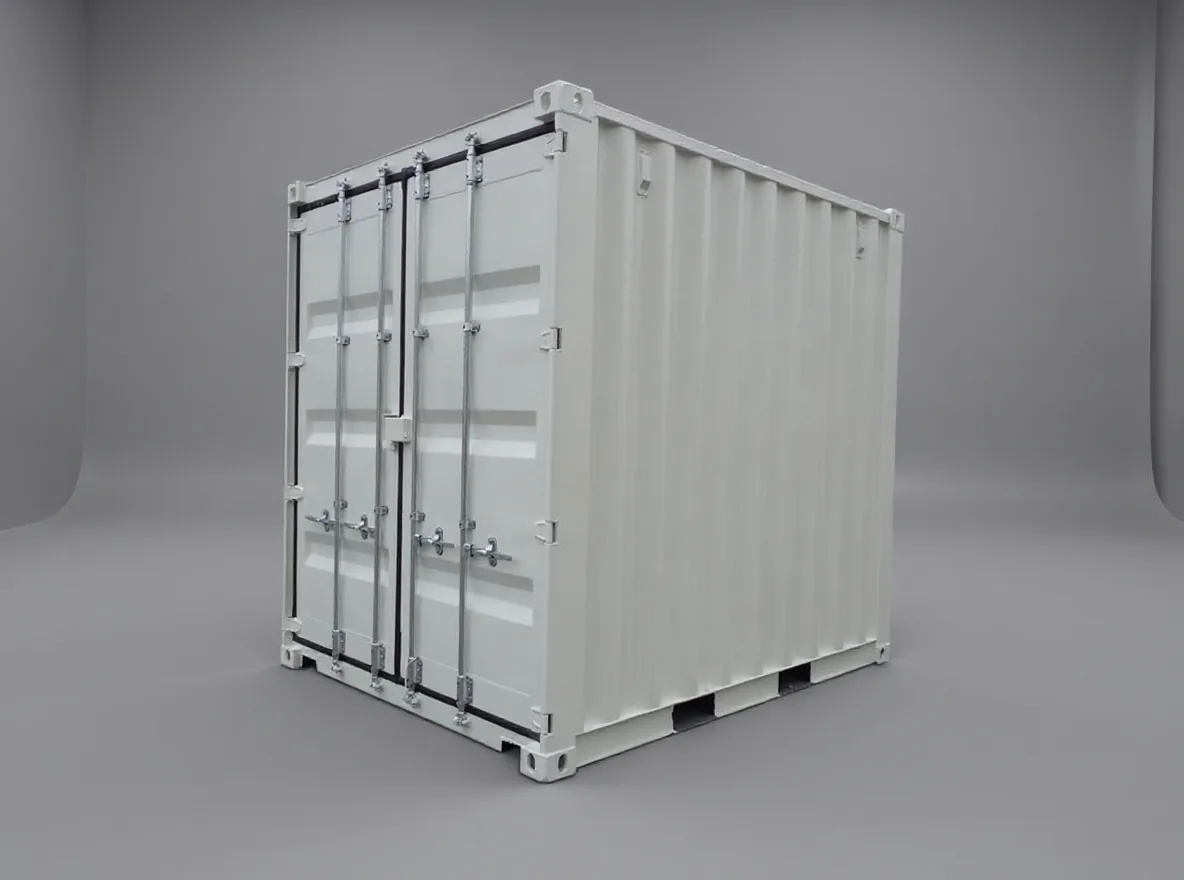

8 ft Mini Container One way

8 ft storage box, non ISO footprint.

Length

2 438 mm

Width

2 200 mm

Height

2 260 mm

Max payload

5 100 kg

Internal volume

10 m³

8 ft High Cube Mini Container One way

8 ft storage box at raised 2565 mm height, non ISO footprint.

Length

2 438 mm

Width

2 200 mm

Height

2 565 mm

Max payload

5 000 kg

Internal volume

11 m³

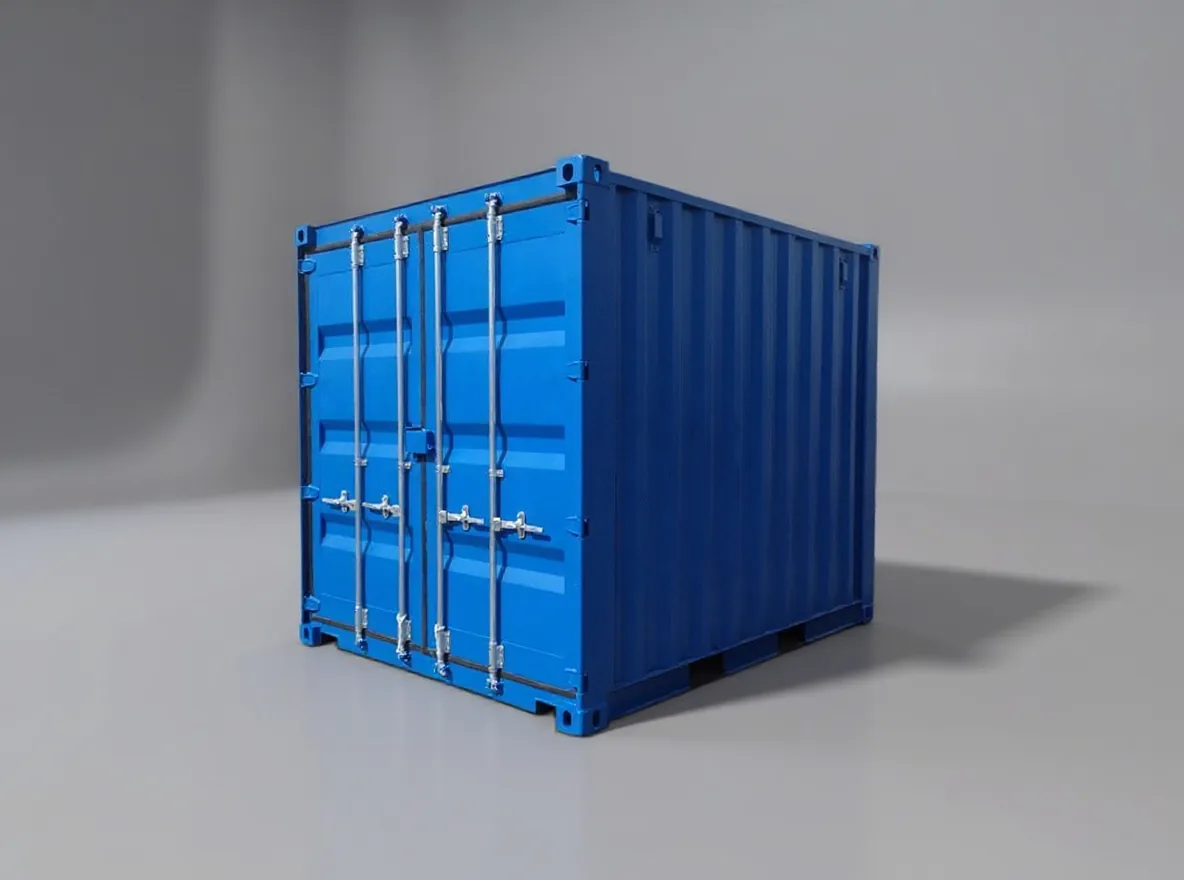

10 ft Mini Container One way

10 ft box on the ISO 1D length at 2591 mm height.

Length

2 991 mm

Width

2 438 mm

Height

2 591 mm

Max payload

8 910 kg

Internal volume

16 m³

10 ft High Cube Mini Container One way

10 ft box at 2896 mm high cube height.

Length

2 991 mm

Width

2 438 mm

Height

2 896 mm

Max payload

10 000 kg

Internal volume

18 m³

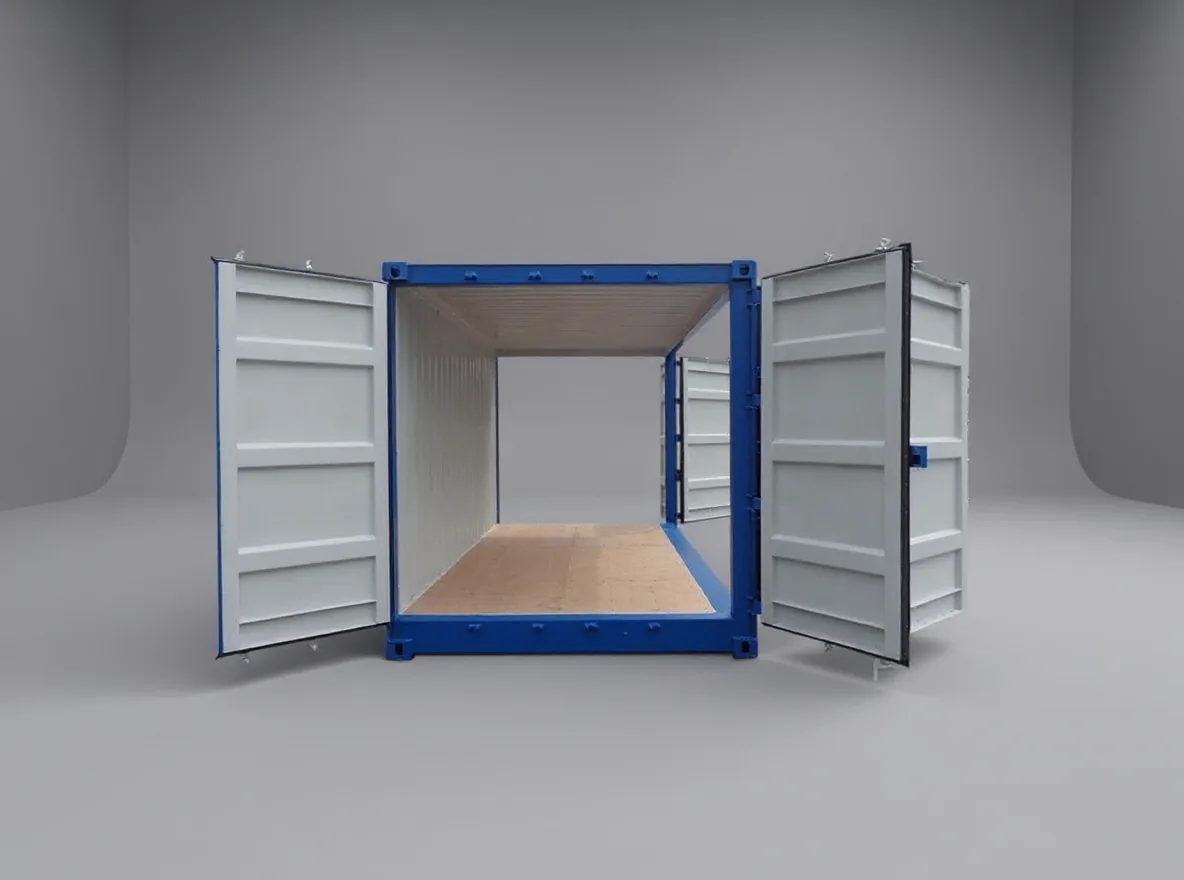

20 ft Double Door Container One way

20 ft box with doors at both ends.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

28 180 kg

Internal volume

33 m³

20 ft High Cube Double Door Container One way

20 ft high cube with doors at both ends.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

28 030 kg

Internal volume

37 m³

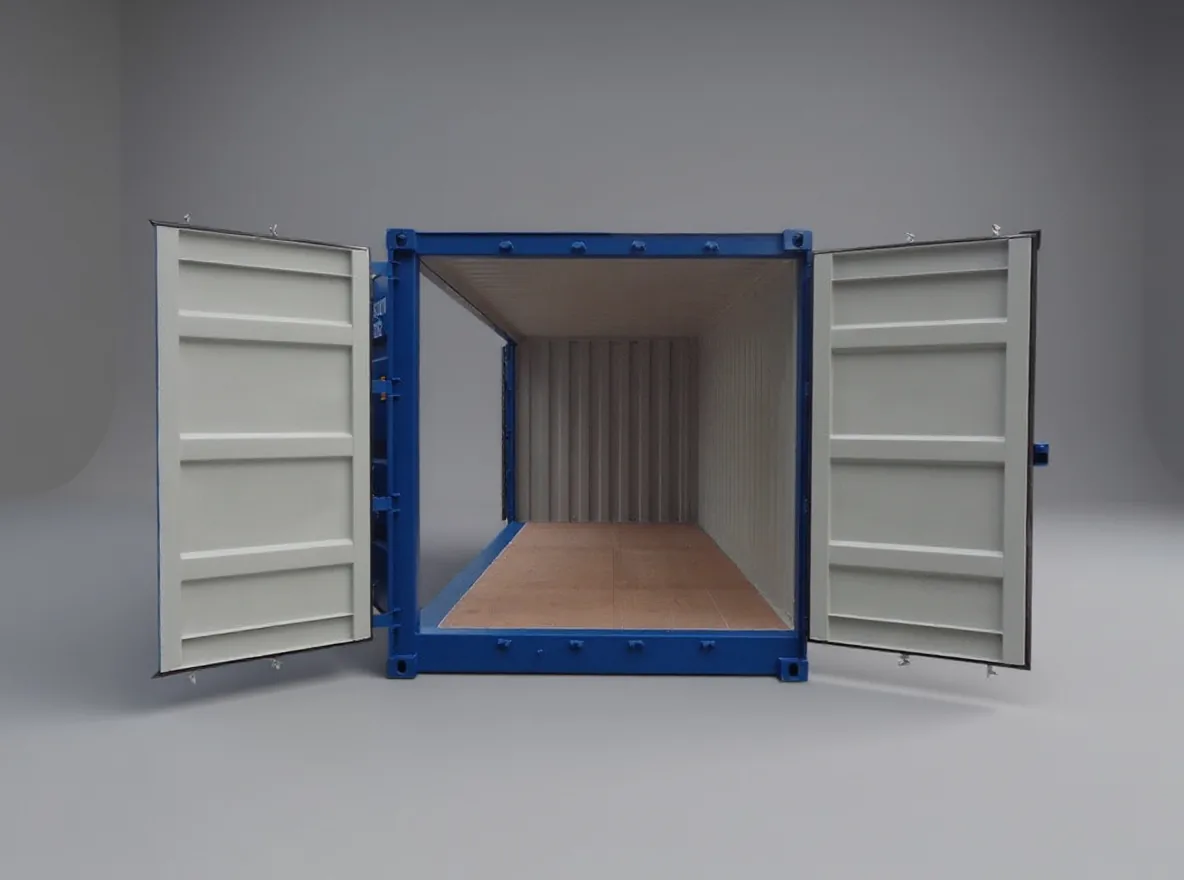

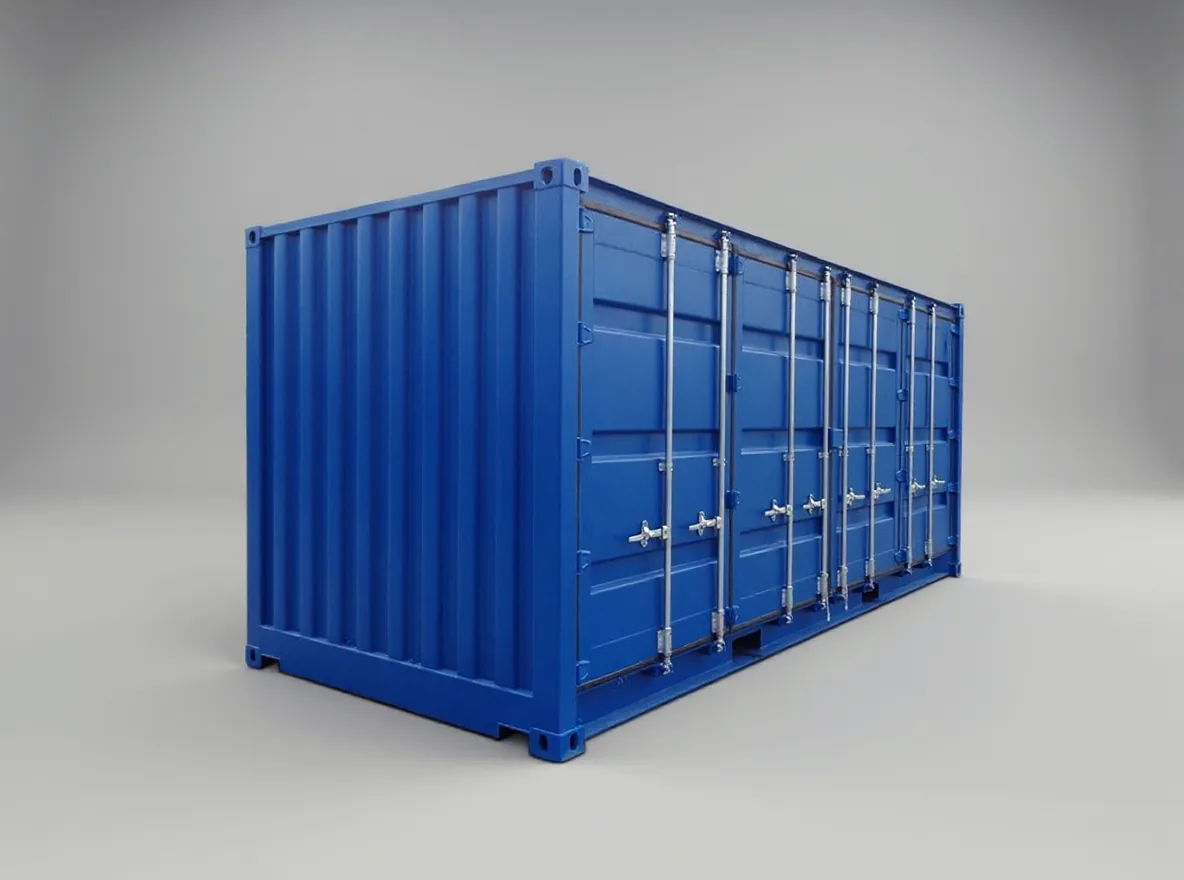

20 ft Side Door Container One way

20 ft box with an end door and a full length side door.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 400 kg

Internal volume

33 m³

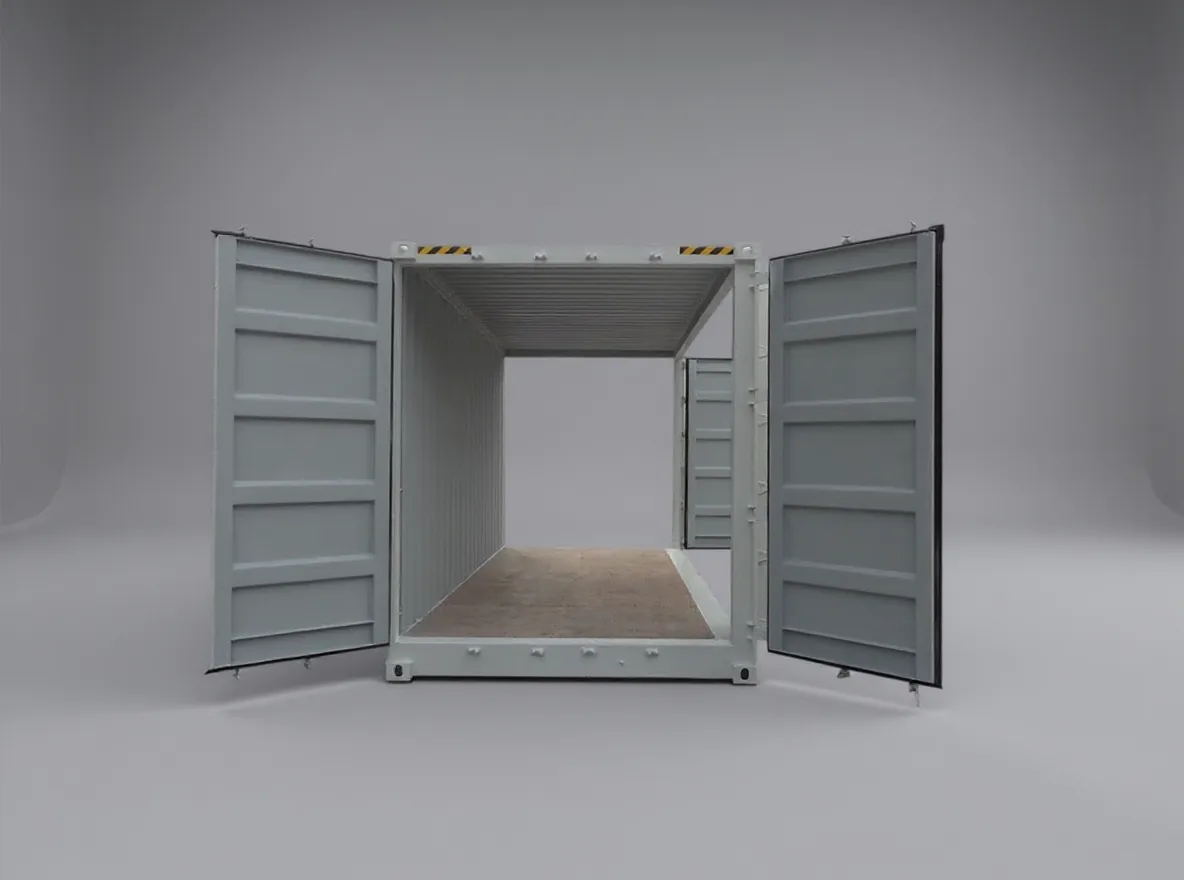

20 ft High Cube Side Door Container One way

20 ft high cube with an end door and a full length side door.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

27 230 kg

Internal volume

35 m³

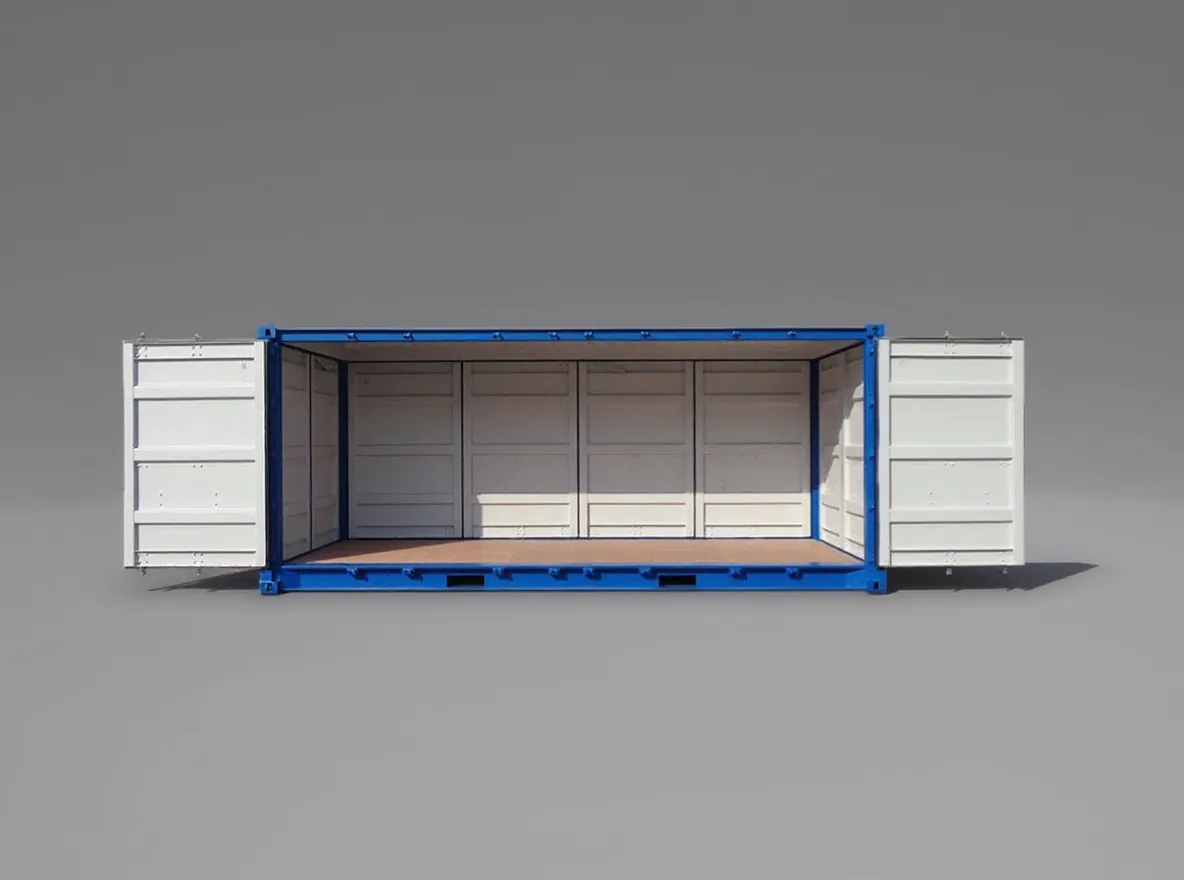

20 ft Double Side Door Container One way

20 ft box with an end door and side doors on both long sides.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

26 800 kg

Internal volume

30 m³

20 ft High Cube Double Side Door Container One way

20 ft high cube with an end door and side doors on both long sides.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

26 580 kg

Internal volume

34 m³

20 ft Double Door plus Side Door Container One way

20 ft box with doors at both ends and one side door.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 150 kg

Internal volume

31 m³

20 ft High Cube Double Door plus Side Door Container One way

20 ft high cube with doors at both ends and one side door.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

26 930 kg

Internal volume

35 m³

20 ft Double Door plus Double Side Door Container One way

20 ft box with doors at both ends and both long sides.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

26 580 kg

Internal volume

30 m³

20 ft High Cube Double Door plus Double Side Door Container One way

20 ft high cube with doors at both ends and both long sides.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

26 320 kg

Internal volume

34 m³

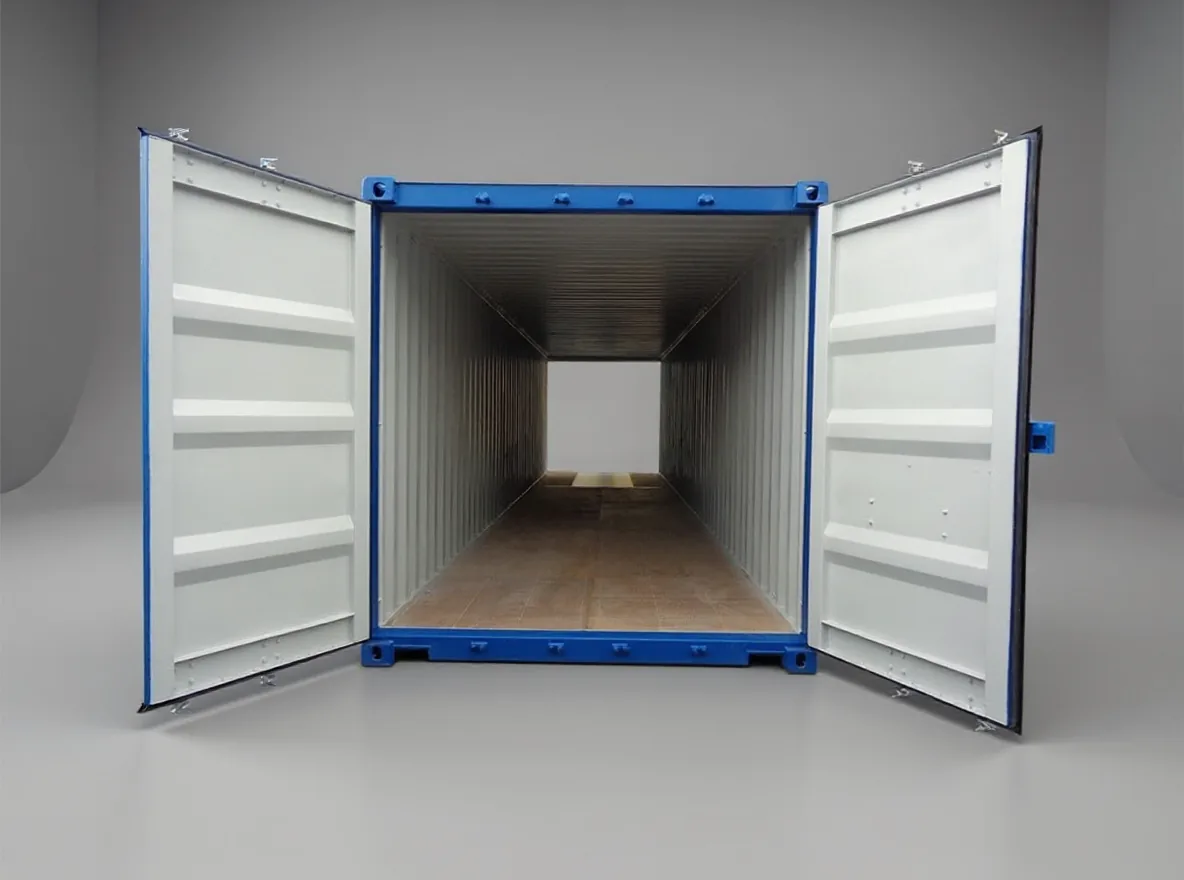

40 ft Double Door Container One way

40 ft box with doors at both ends.

Length

12 192 mm

Width

2 438 mm

Height

2 591 mm

Max payload

26 680 kg

Internal volume

67 m³

40 ft High Cube Double Door Container One way

40 ft high cube with doors at both ends.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

26 480 kg

Internal volume

76 m³

40 ft High Cube Side Door Container One way

40 ft high cube with an end door and a full length side door.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

26 020 kg

Internal volume

68 m³

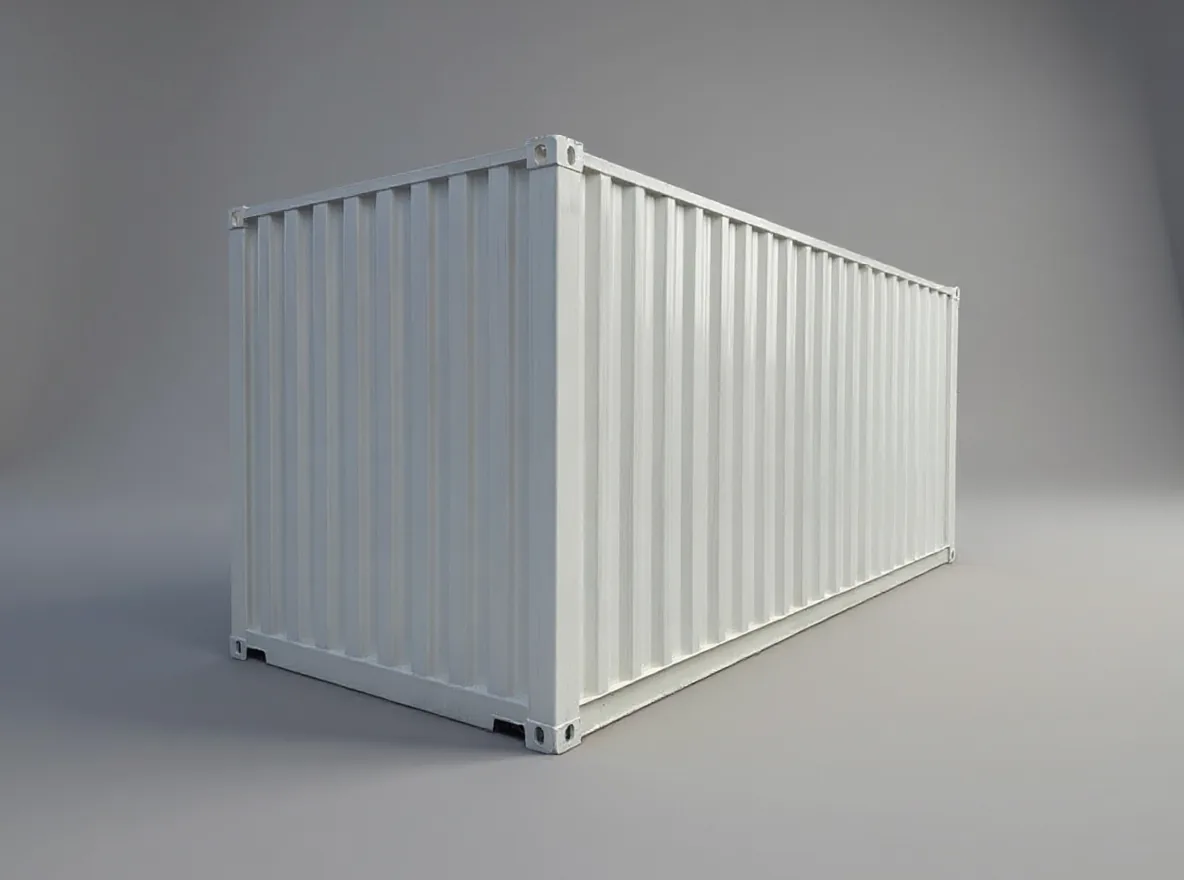

20 ft Insulated Container One way

20 ft insulated body with no refrigeration machinery fitted.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 040 kg

Internal volume

30 m³

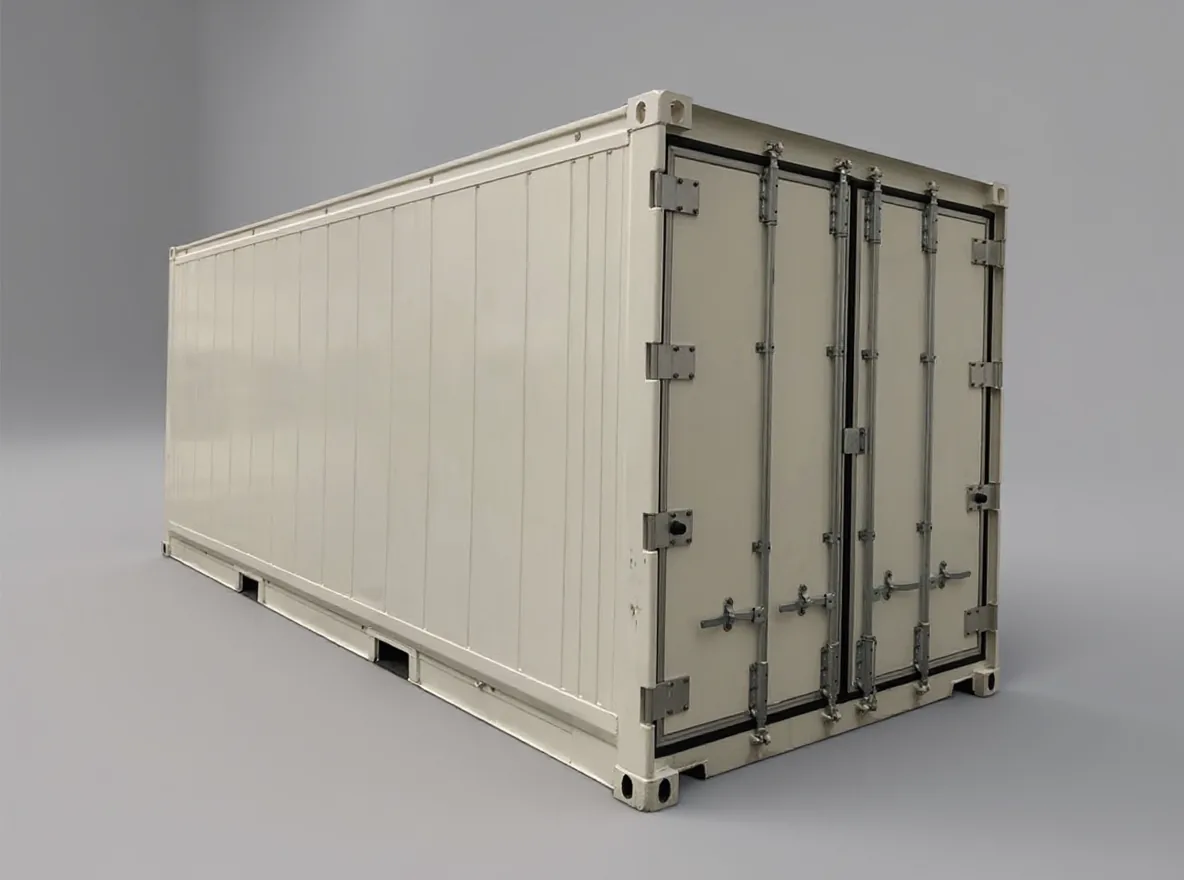

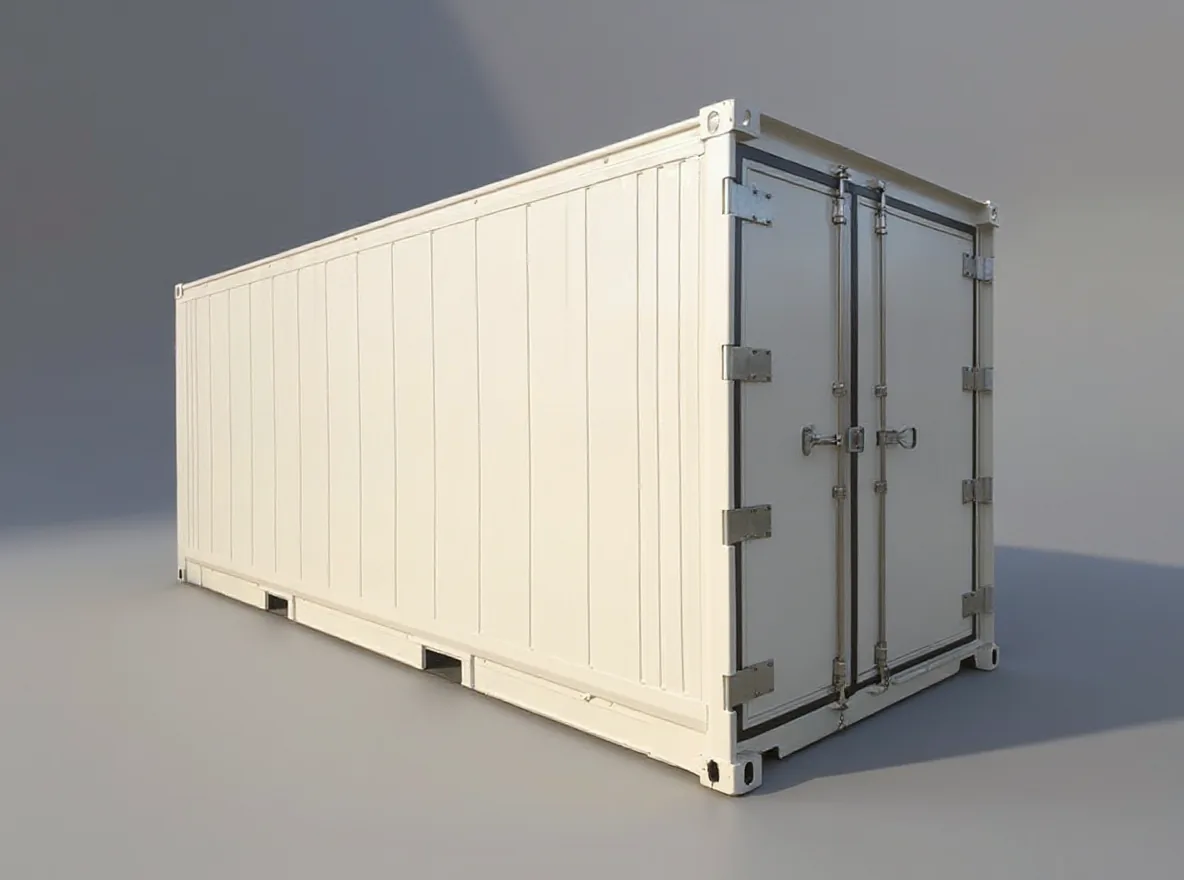

20 ft Standard Reefer Container One way

20 ft integral reefer on a T-section floor.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 480 kg

Internal volume

29 m³

20 ft Reefer Domestic Container One way

20 ft reefer configured for road distribution rather than sea carriage.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

21 230 kg

Internal volume

29 m³

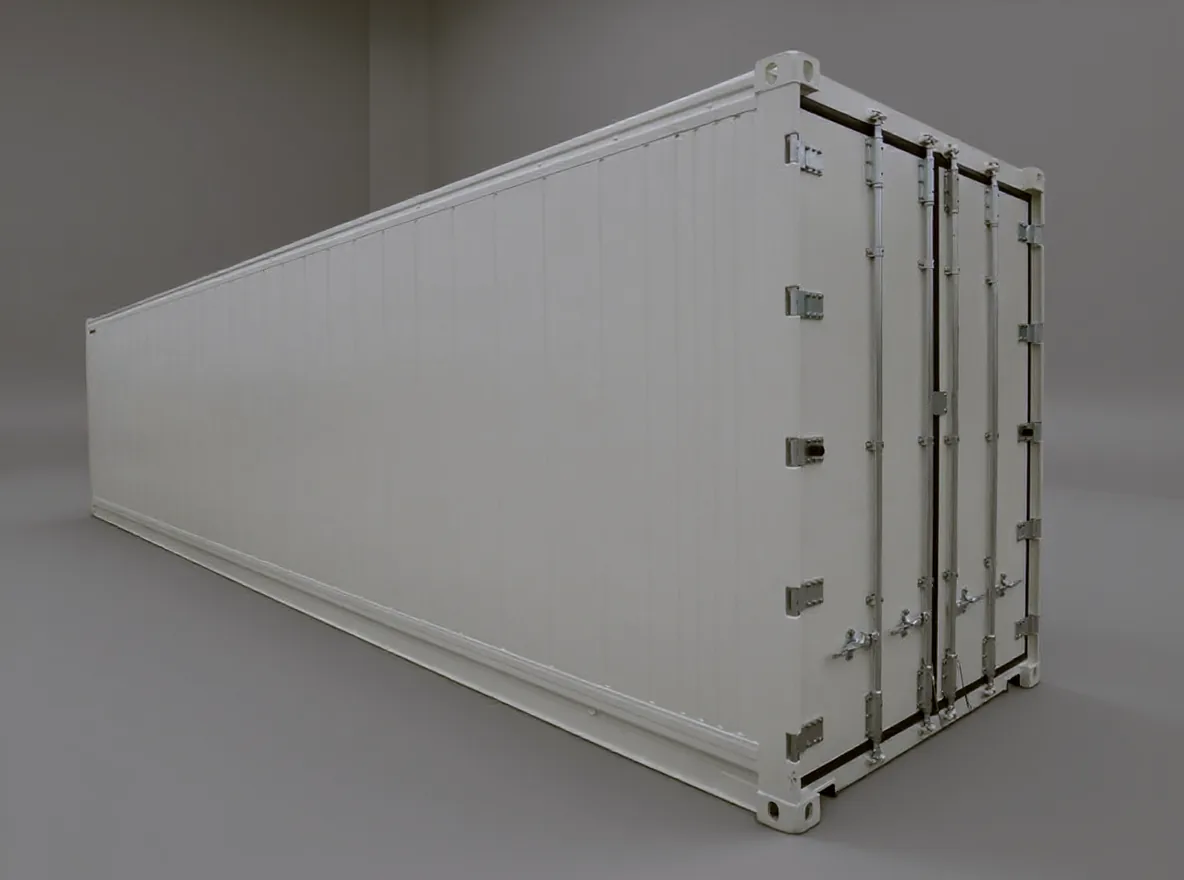

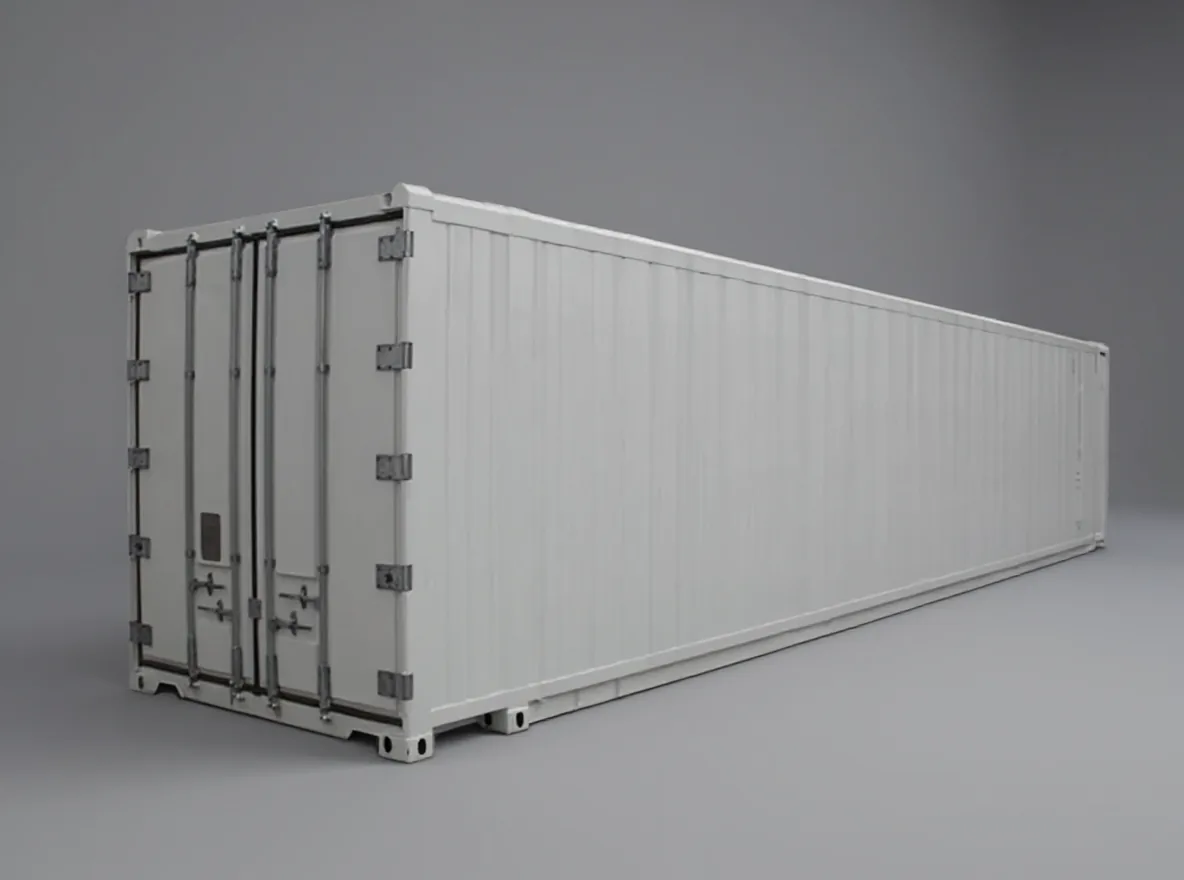

40 ft High Cube Reefer Container One way

40 ft high cube integral reefer, the standard perishables unit.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

30 410 kg

Internal volume

68 m³

45 ft High Cube Reefer Pallet Wide Container One way

45 ft pallet wide integral reefer at 2556 mm external width.

Length

13 716 mm

Width

2 556 mm

Height

2 896 mm

Max payload

28 000 kg

Internal volume

84 m³

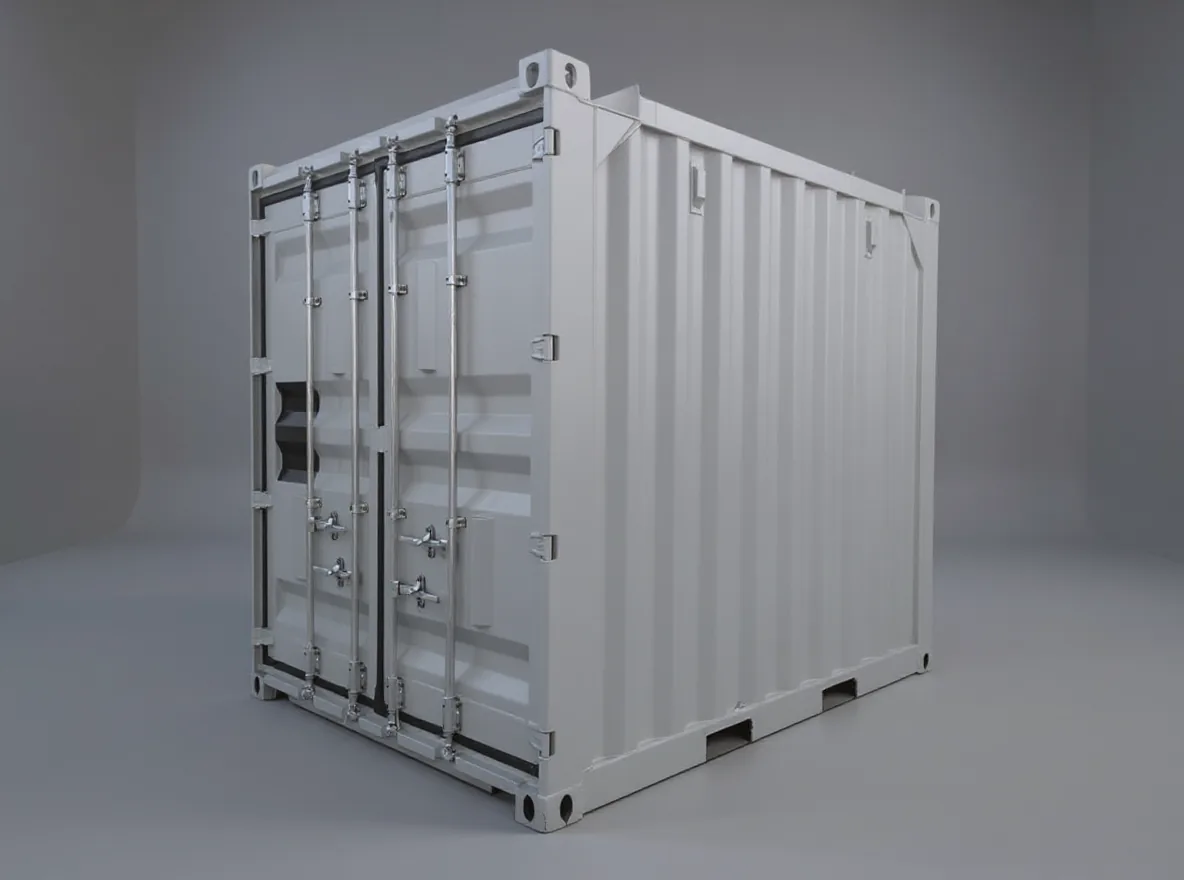

10 ft Offshore Container One way

10 ft offshore box certified for lifting in open sea.

Length

2 991 mm

Width

2 438 mm

Height

2 591 mm

Max payload

9 540 kg

Internal volume

16 m³

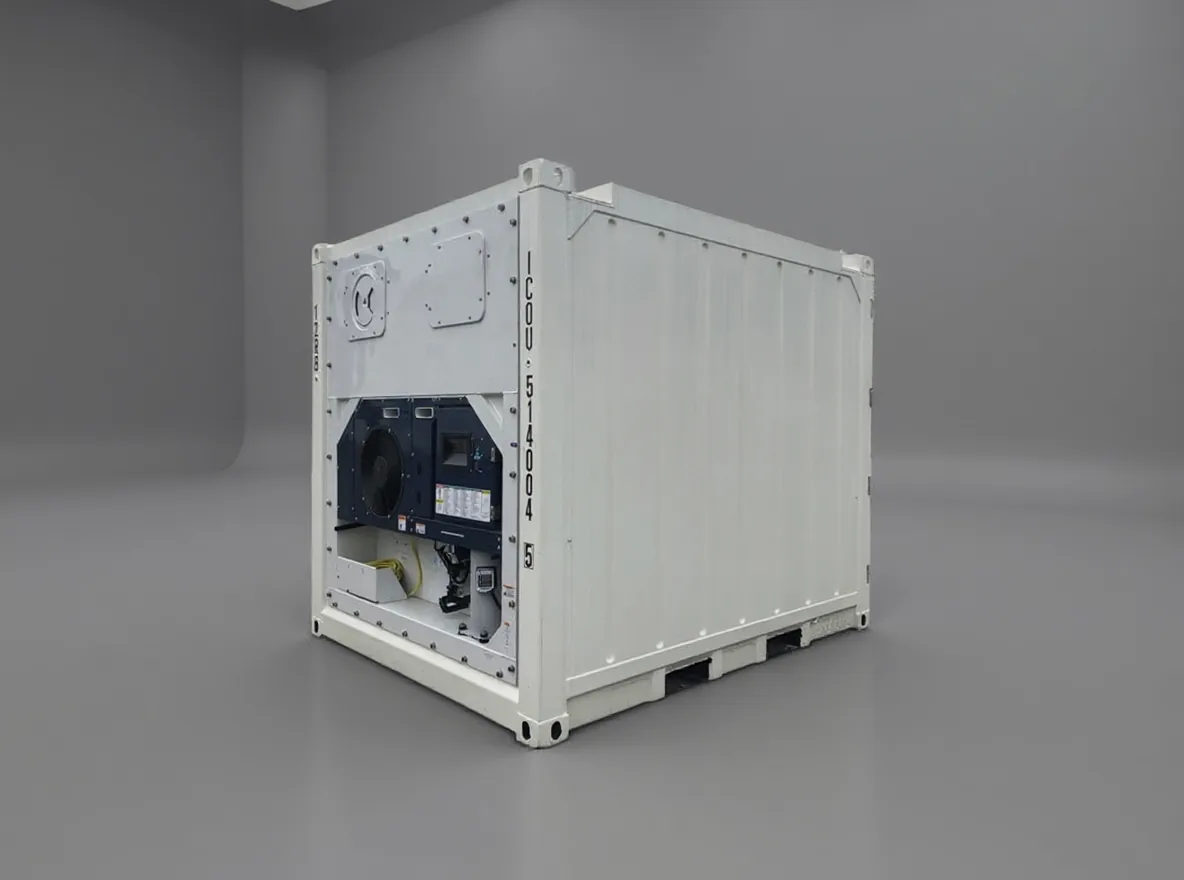

10 ft Offshore Reefer Container One way

10 ft offshore box with refrigeration machinery.

Length

2 991 mm

Width

2 438 mm

Height

2 591 mm

Max payload

8 000 kg

Internal volume

12 m³

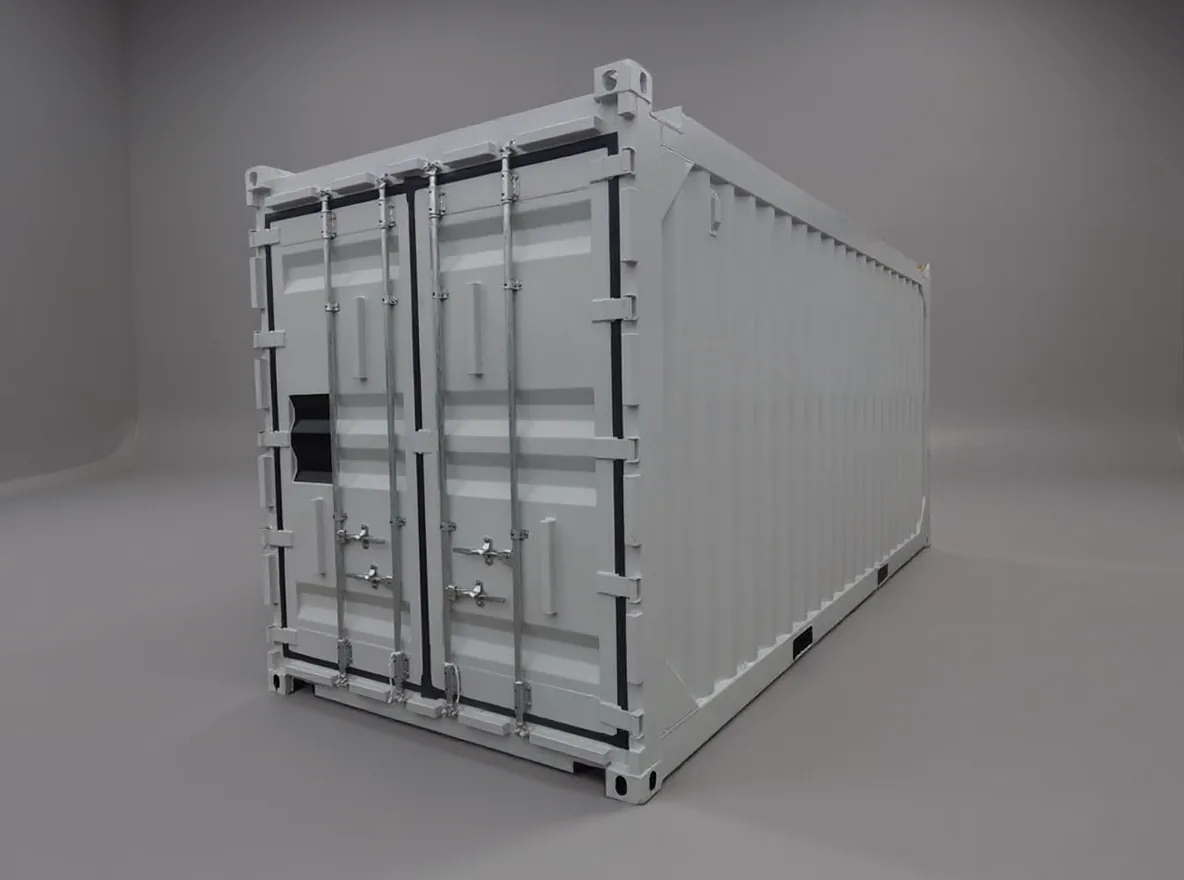

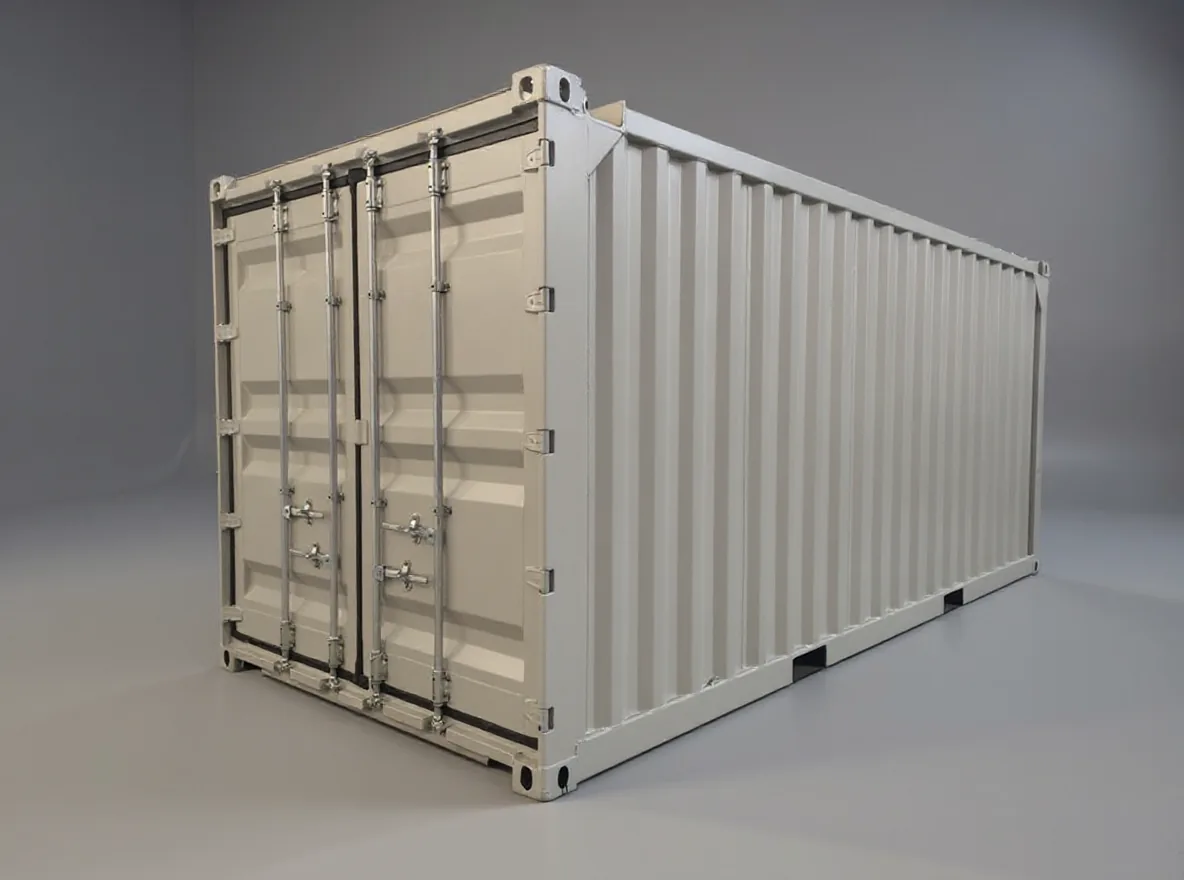

20 ft Offshore Container One way

20 ft offshore box certified for lifting in open sea.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

13 530 kg

Internal volume

33 m³

20 ft High Cube Offshore Container One way

20 ft high cube offshore box certified for lifting in open sea.

Length

6 058 mm

Width

2 438 mm

Height

2 896 mm

Max payload

20 120 kg

Internal volume

34 m³

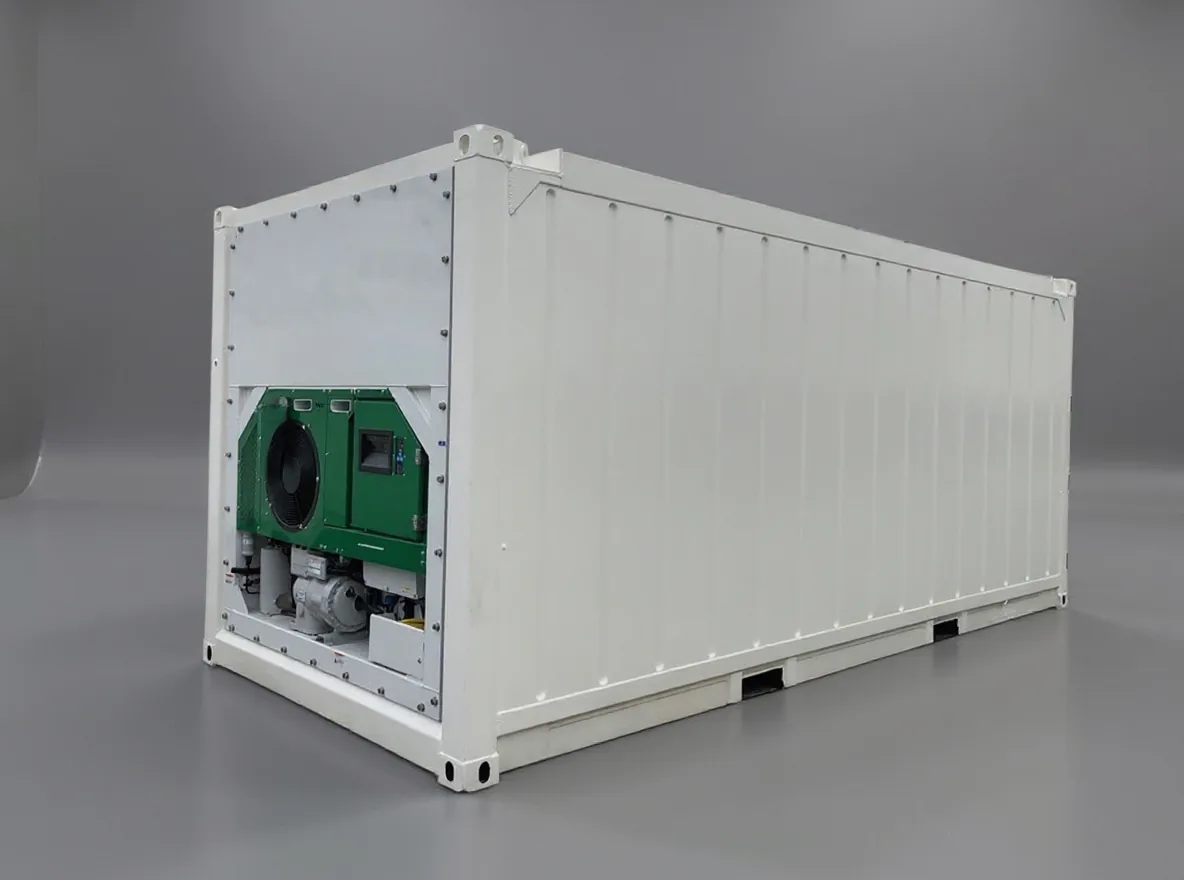

20 ft Offshore Reefer Container One way

20 ft offshore box with refrigeration machinery.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

19 620 kg

Internal volume

28 m³

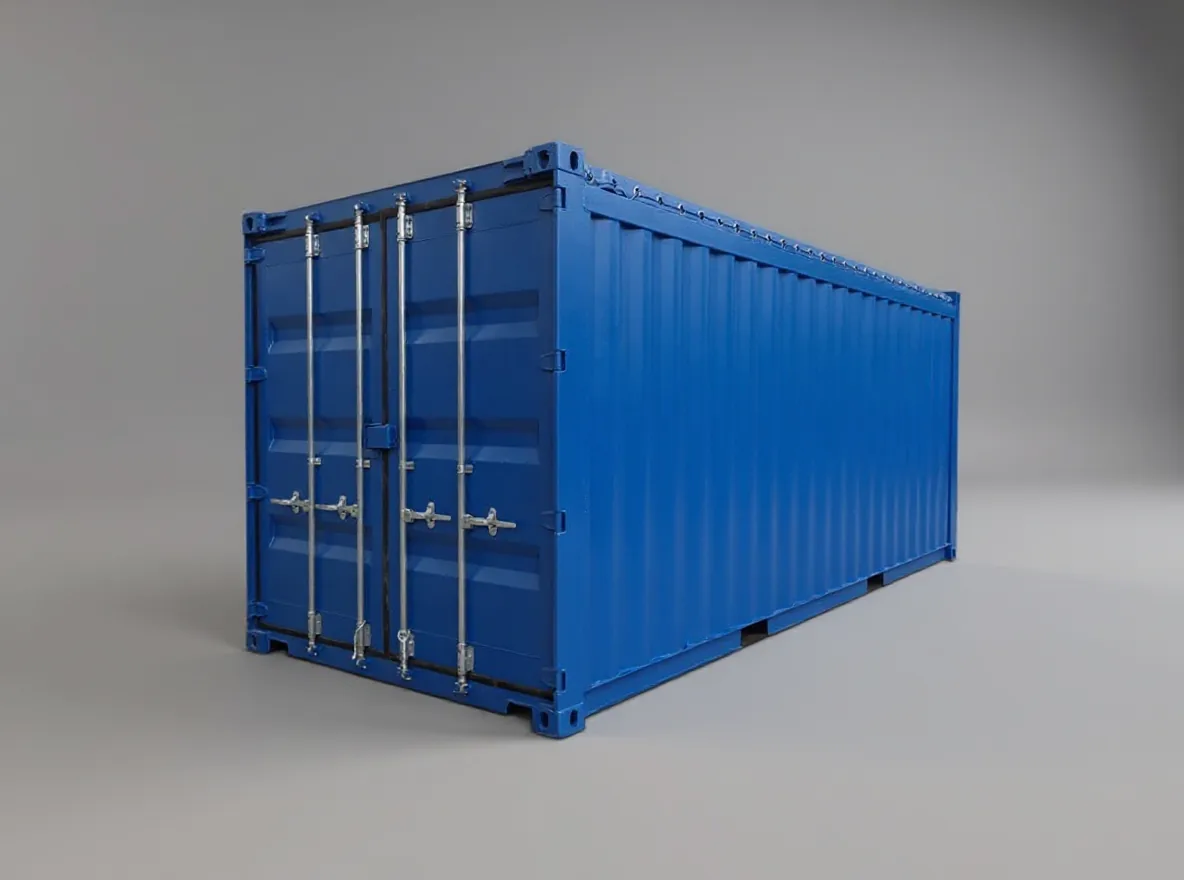

20 ft Open Top Container One way

20 ft box with a removable tarpaulin roof for crane loading.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

28 230 kg

Internal volume

33 m³

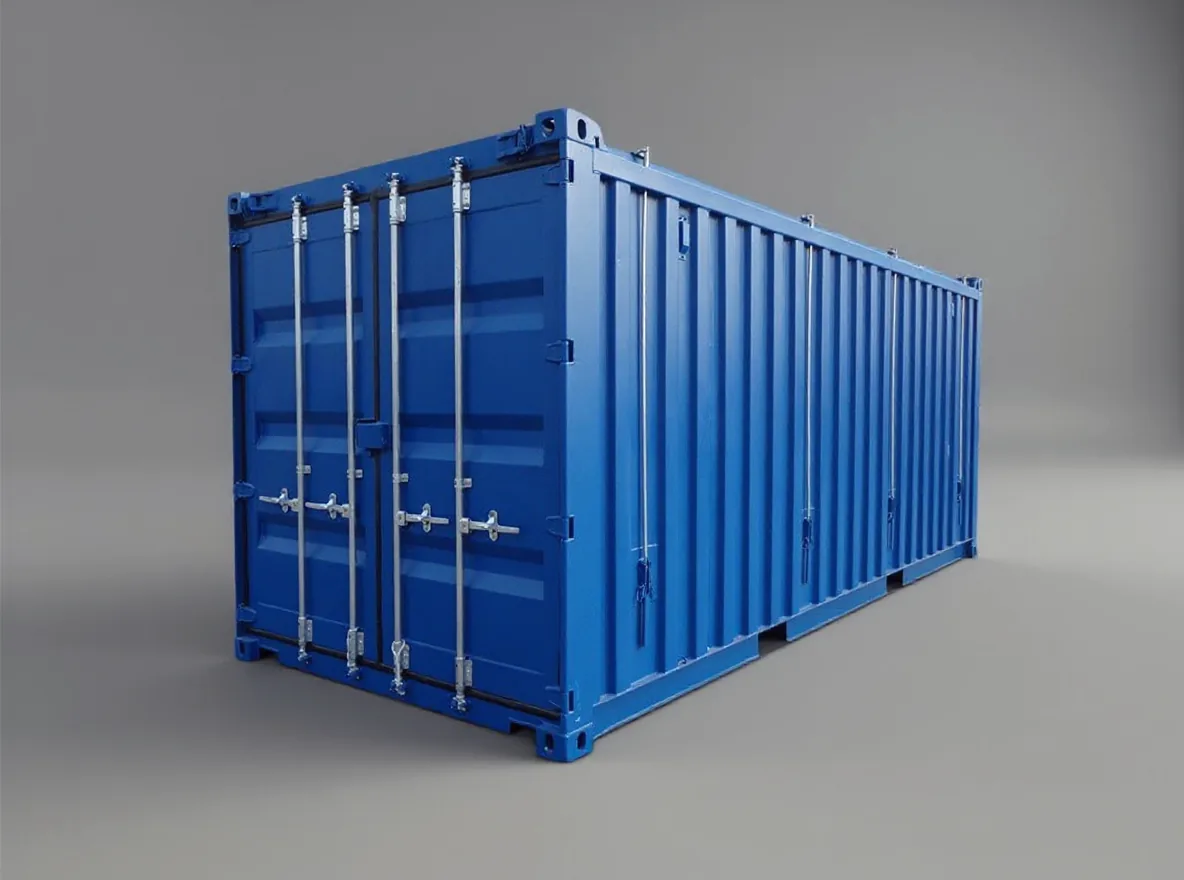

20 ft Hard Top Container One way

20 ft box with a removable steel roof for crane loading.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

27 590 kg

Internal volume

33 m³

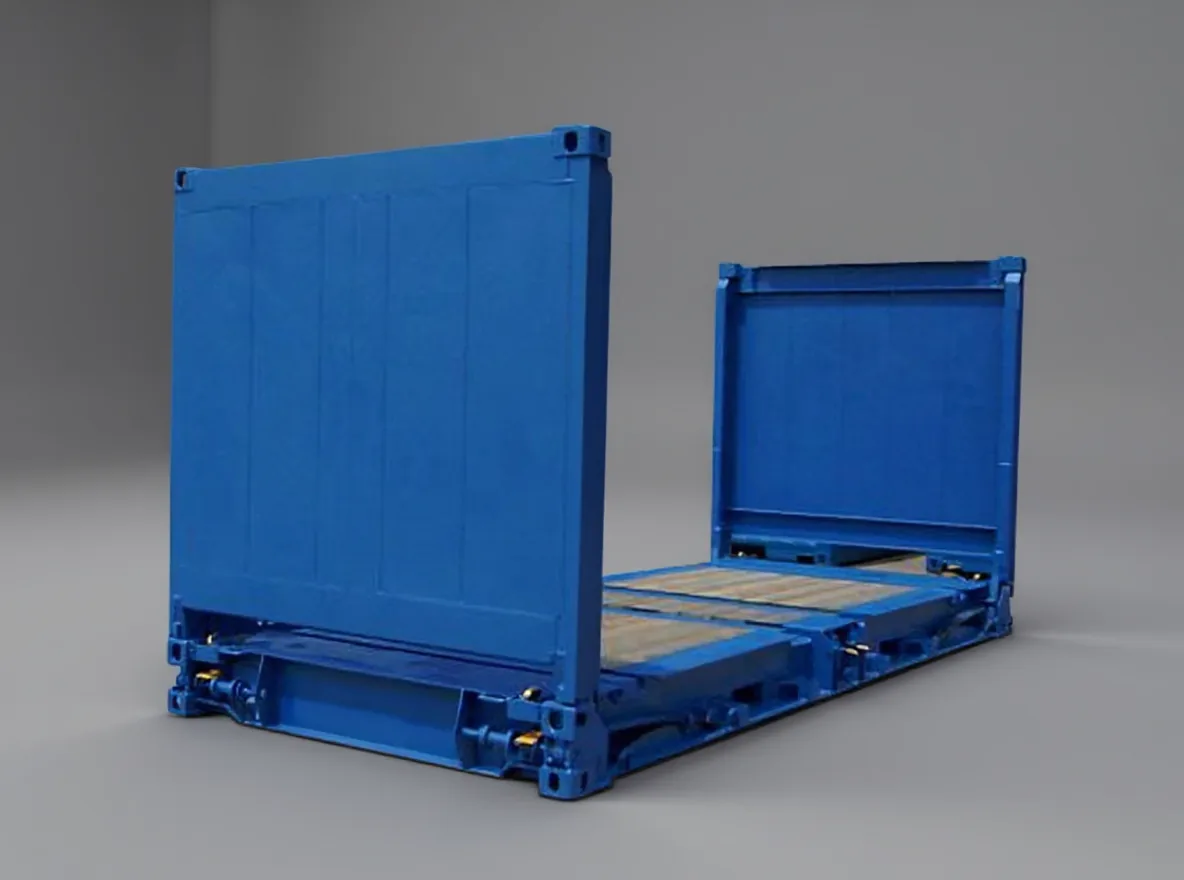

20 ft Flat Rack Container One way

20 ft platform with end walls, for over height and over width cargo.

Length

6 058 mm

Width

2 438 mm

Height

2 233 mm

Max payload

42 100 kg

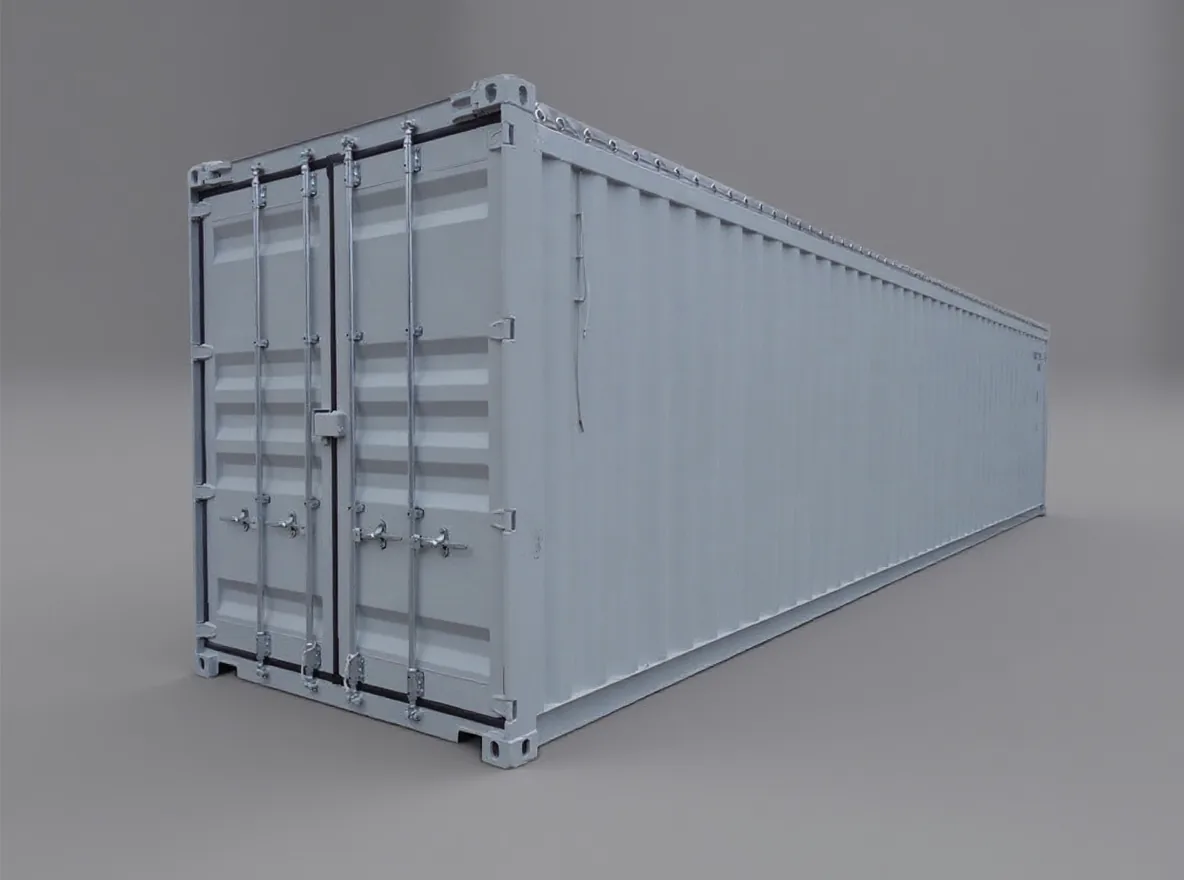

40 ft Open Top Container One way

40 ft box with a removable tarpaulin roof for crane loading.

Length

12 192 mm

Width

2 438 mm

Height

2 591 mm

Max payload

26 730 kg

Internal volume

66 m³

40 ft High Cube Open Top Container One way

40 ft high cube with a removable tarpaulin roof for crane loading.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

25 930 kg

Internal volume

75 m³

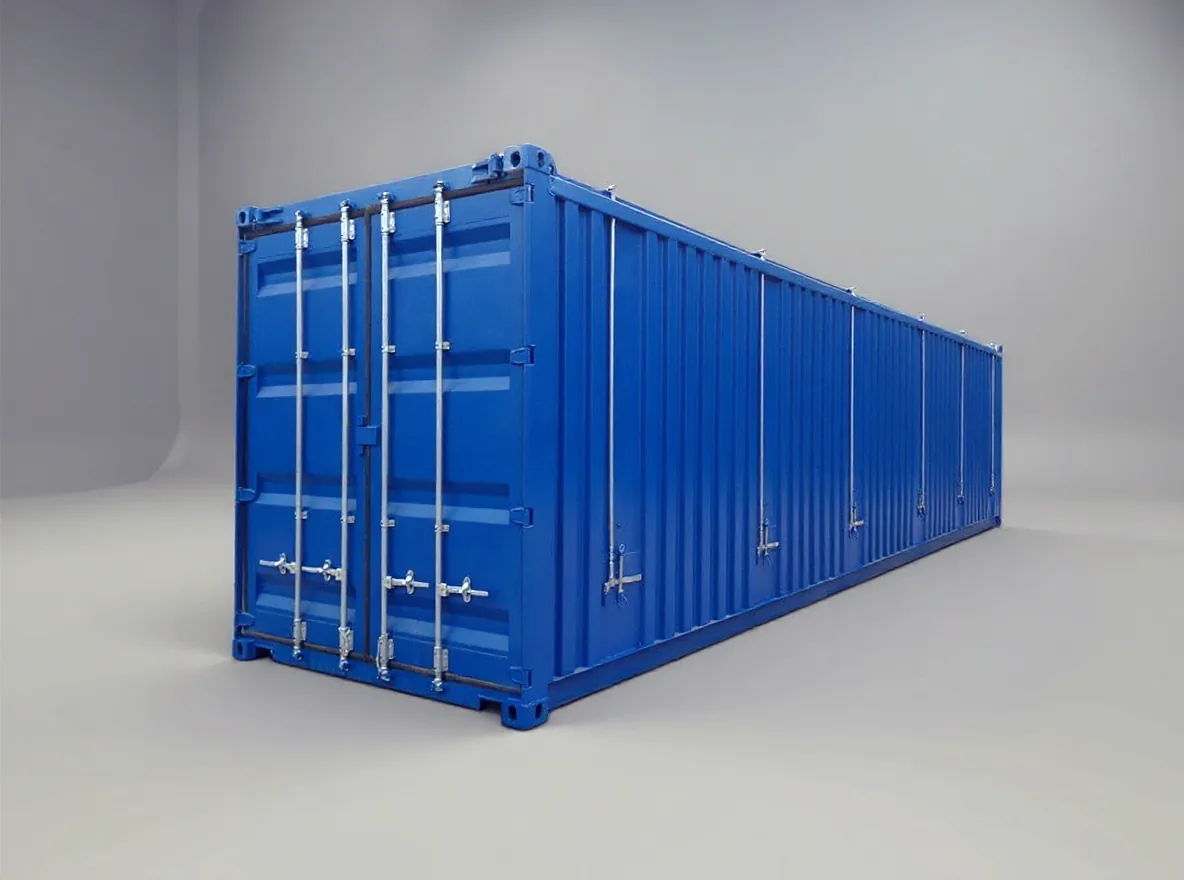

40 ft High Cube Hard Top Container One way

40 ft high cube with a removable steel roof for crane loading.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

25 680 kg

Internal volume

75 m³

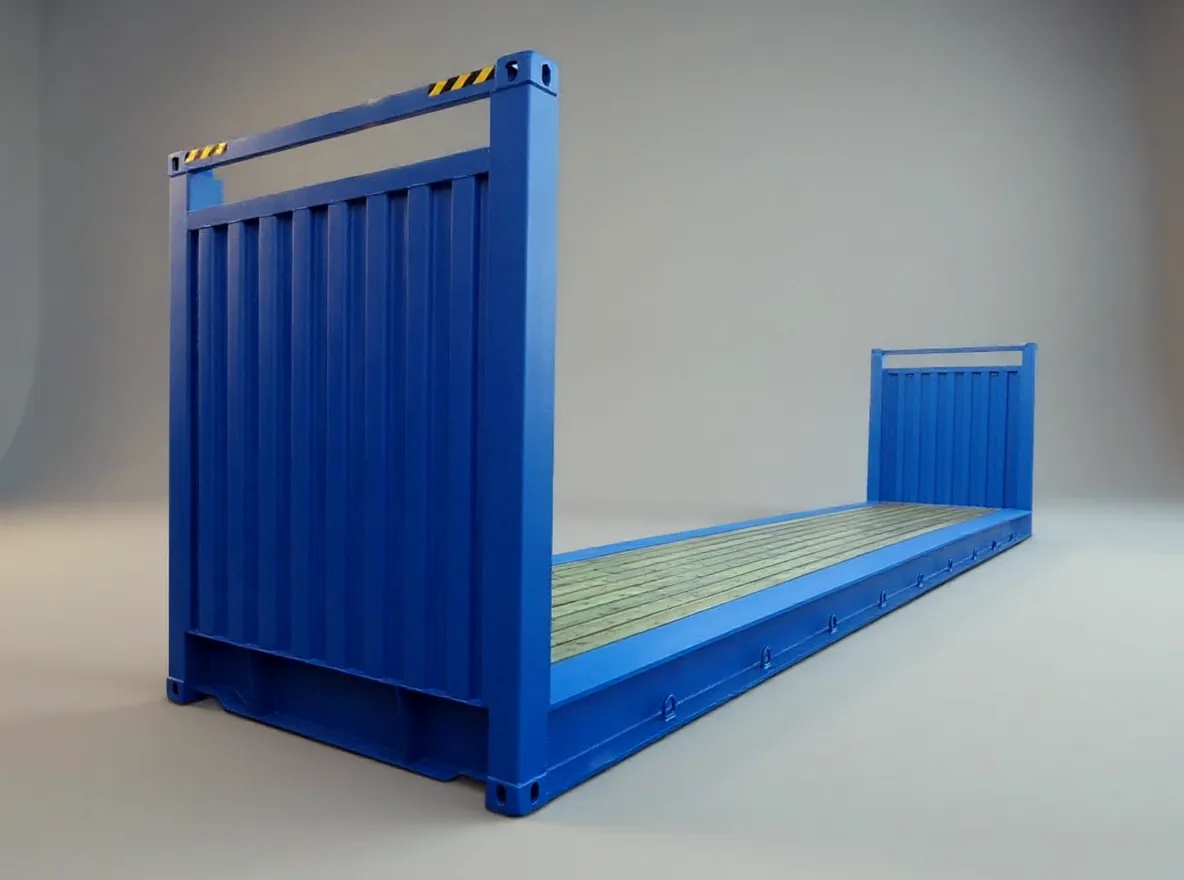

40 ft Flat Rack Container One way

40 ft platform with end walls, for over height and over width cargo.

Length

12 192 mm

Width

2 438 mm

Height

2 896 mm

Max payload

24 120 kg

20 ft Half Height Container One way

20 ft open topped half height box for dense bulk cargo.

Length

6 058 mm

Width

2 438 mm

Height

1 295 mm

Max payload

30 160 kg

Internal volume

14 m³

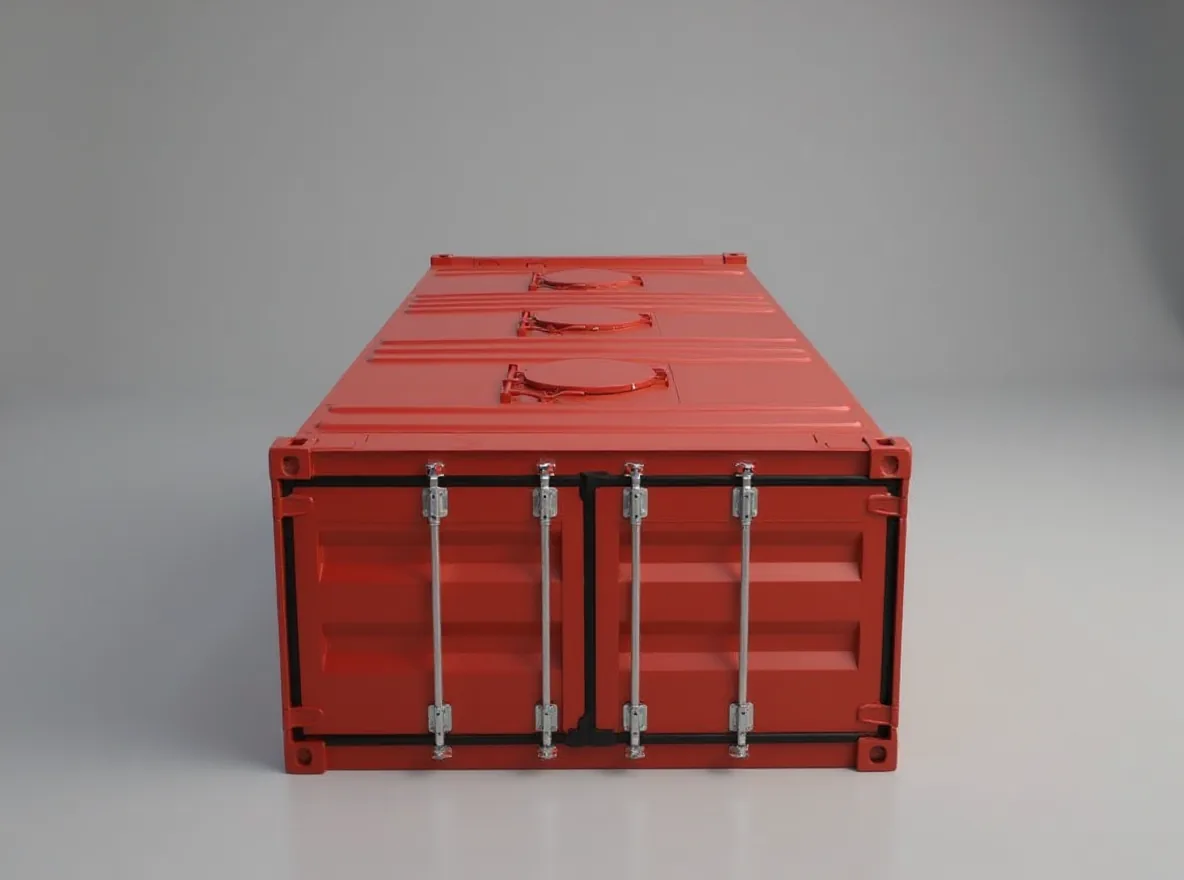

20 ft Bulk Container One way

20 ft closed dry bulk box with roof manholes and discharge hatches.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

28 290 kg

Internal volume

33 m³

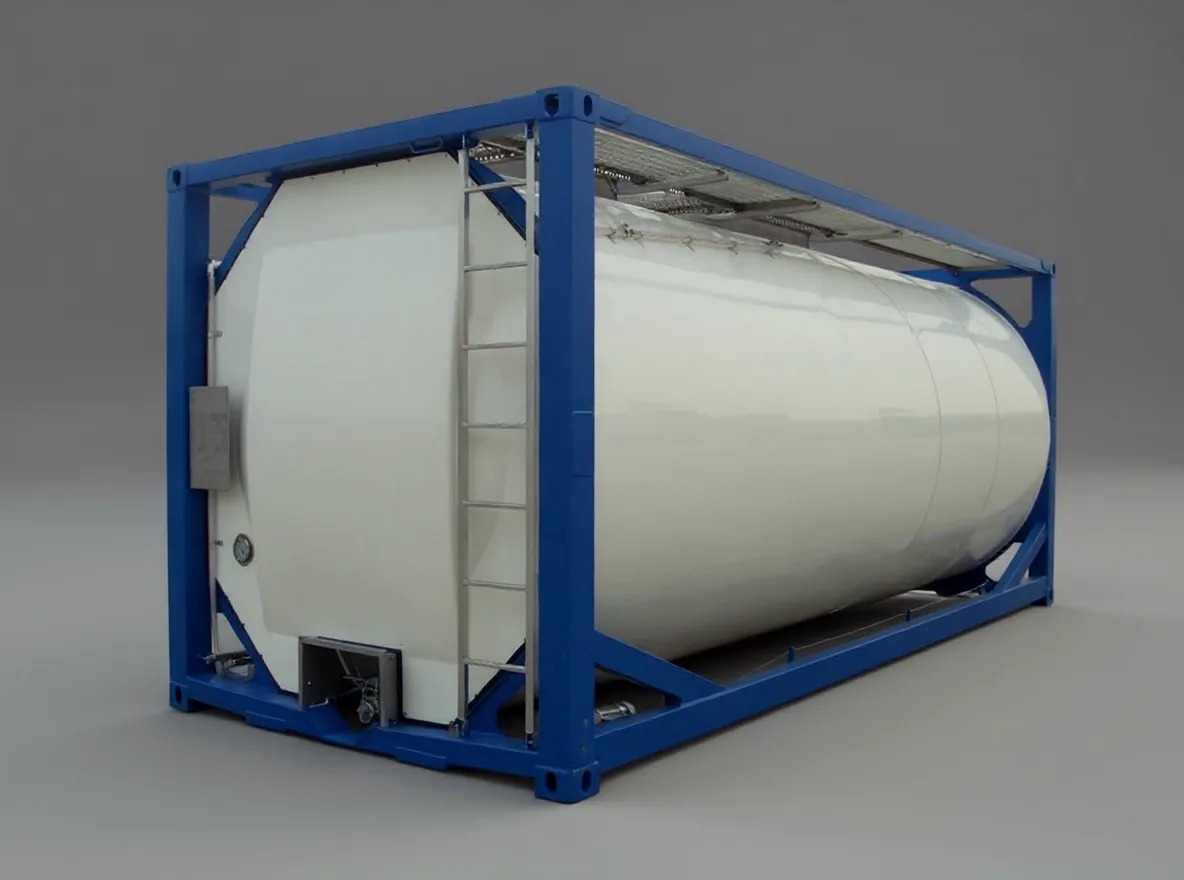

20 ft Tank Container One way

20 ft ISO tank frame with a 24,000 litre barrel.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

Max payload

28 480 kg

Internal volume

33 m³

16 ft Office Module

Short office module for tight sites where a full 20 ft footprint will not fit.

Length

4 891 mm

Width

2 438 mm

Height

2 800 mm

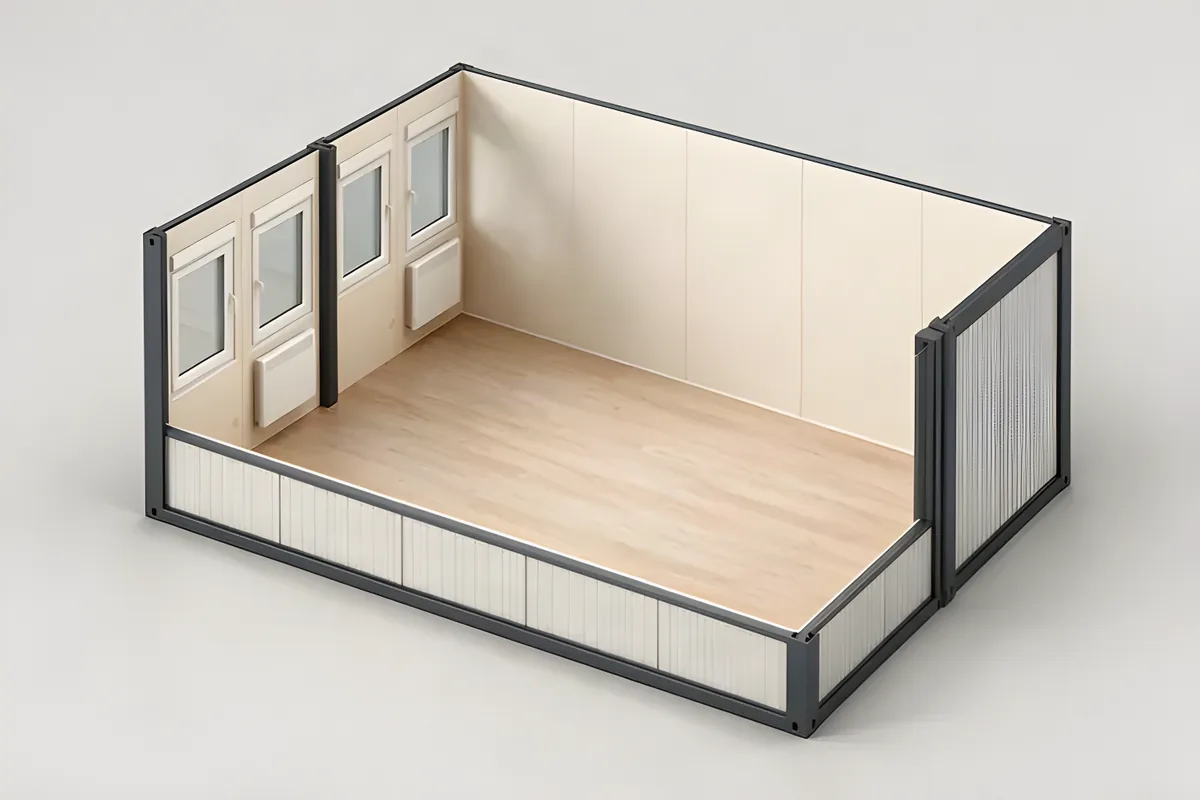

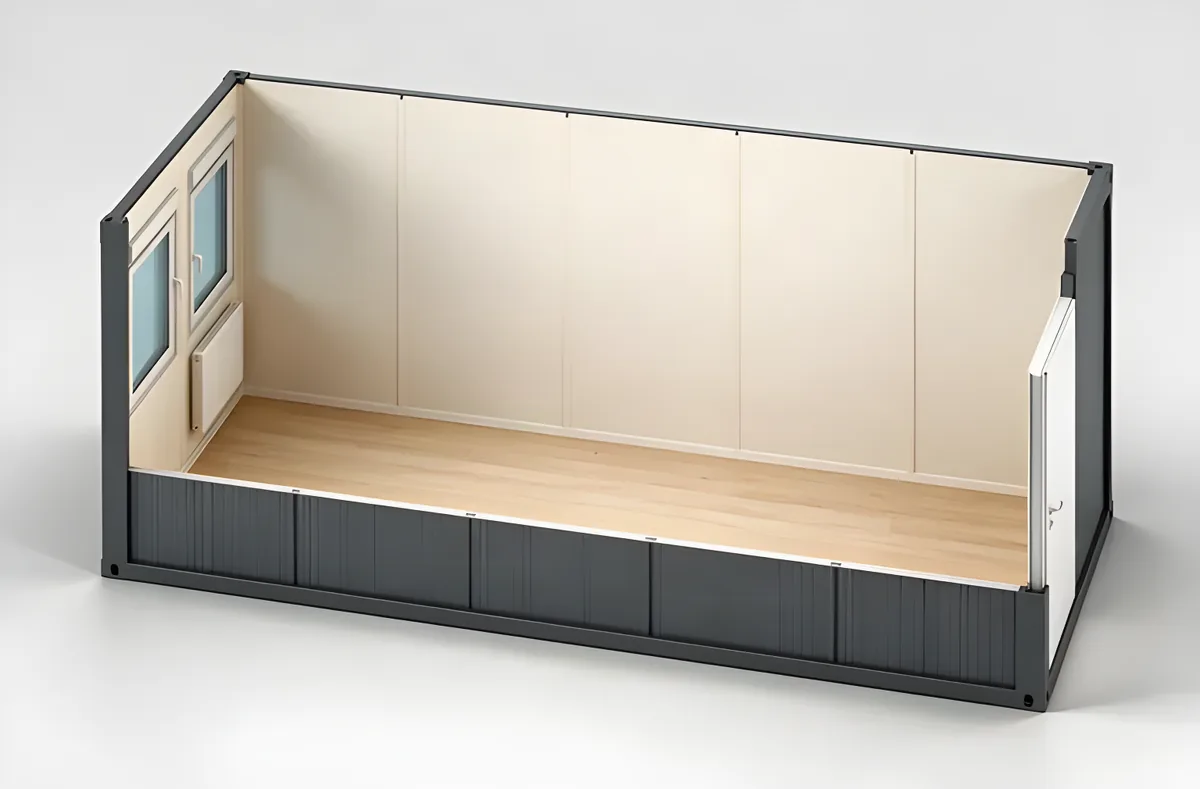

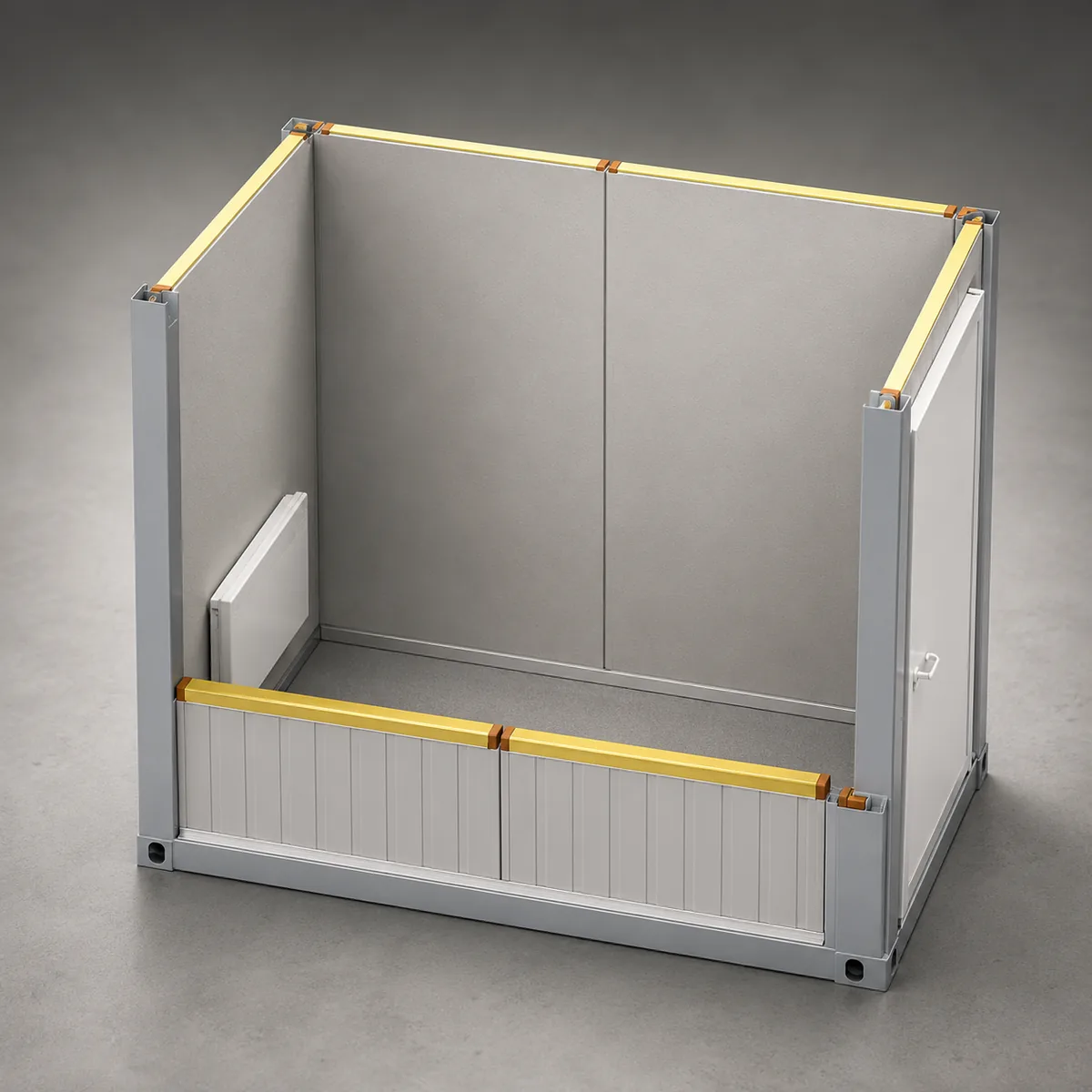

20 ft Office Module

The standard single-room office on a 20 ft footprint.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

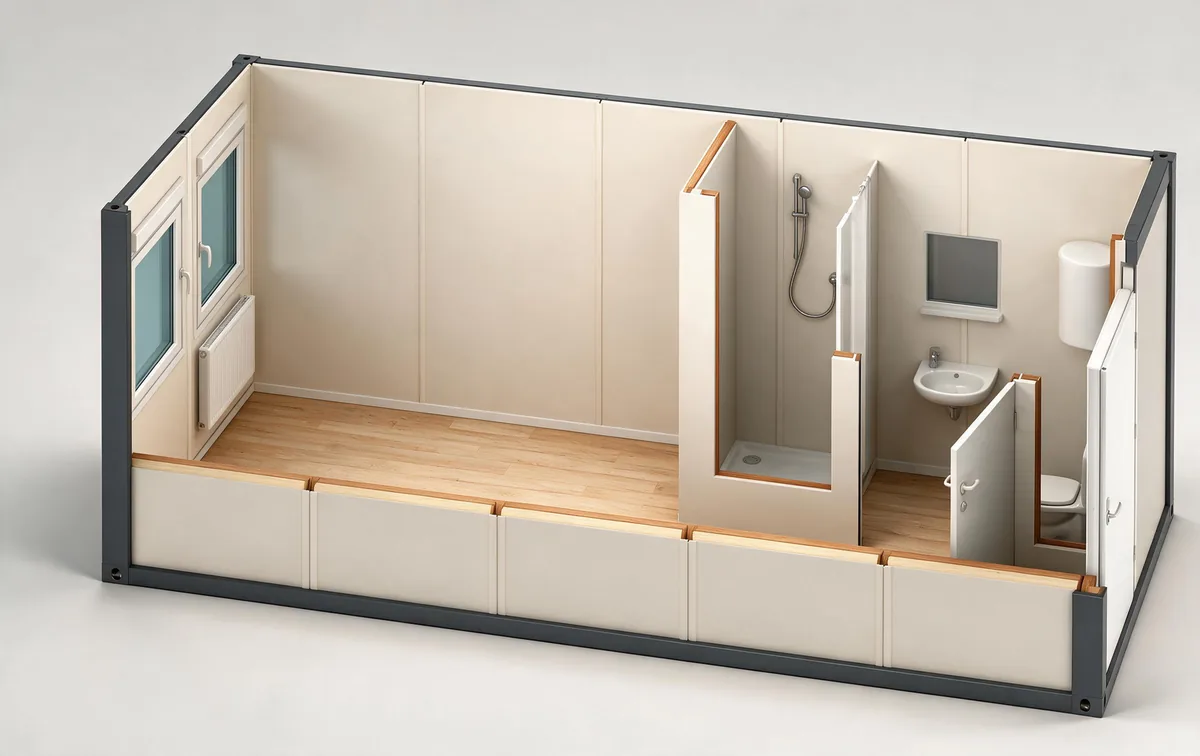

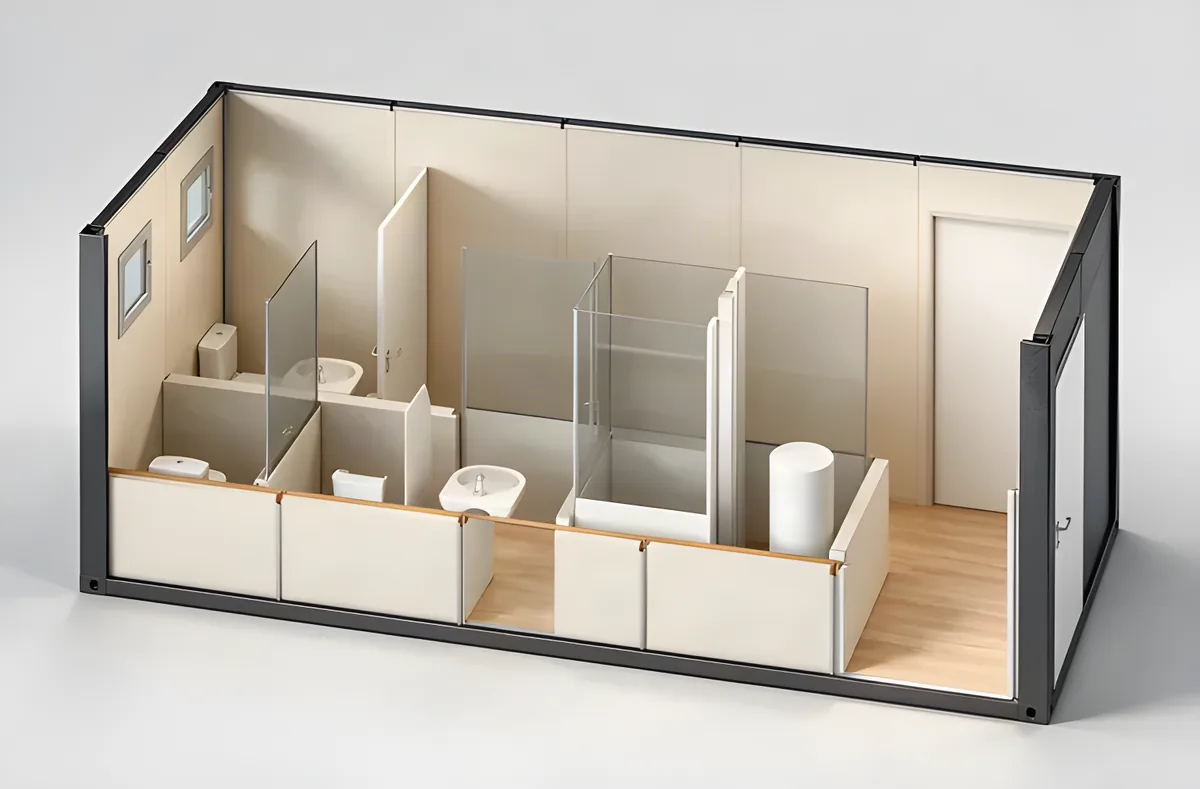

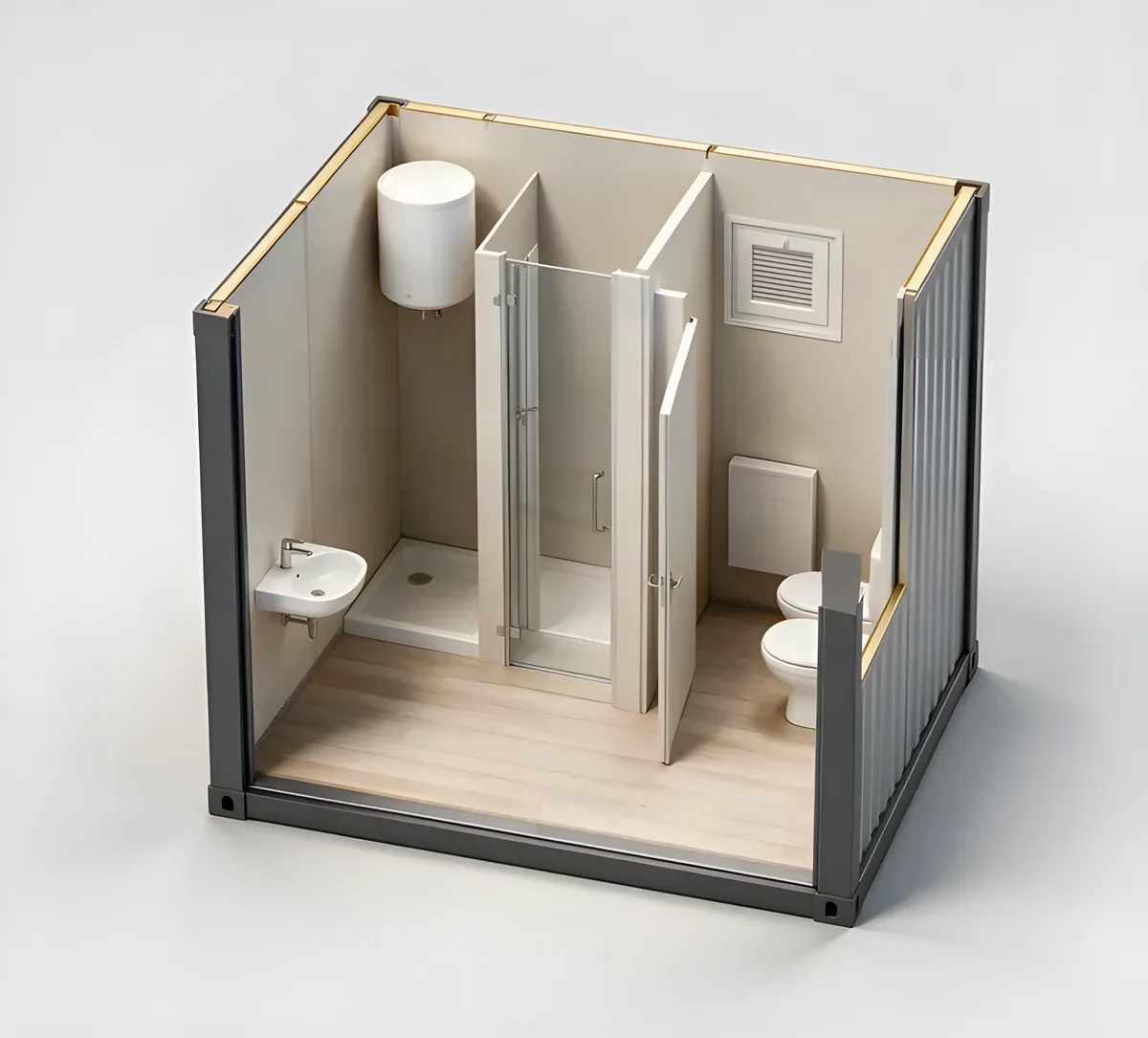

20 ft Office Module with WC and Shower

20 ft office with a partitioned WC and shower compartment.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

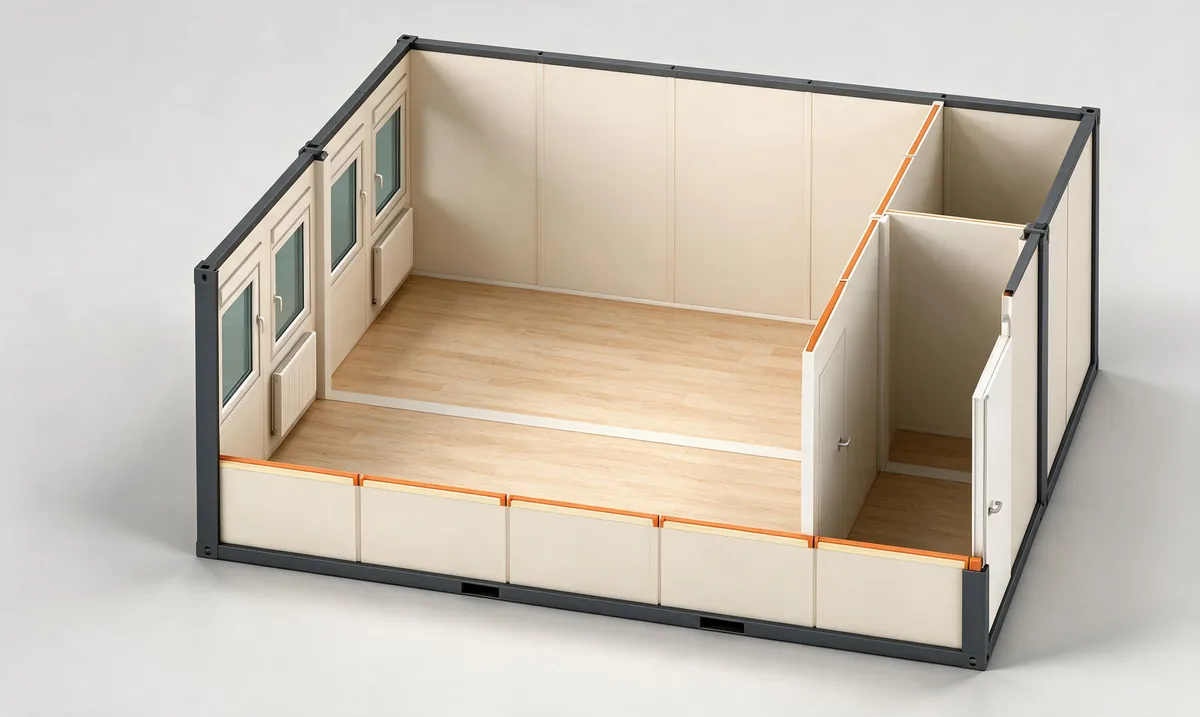

20 ft Double Office Module

Two 20 ft modules joined on the long side into one 4886 mm wide room. Ships as two units.

Length

6 058 mm

Width

4 886 mm

Height

2 800 mm

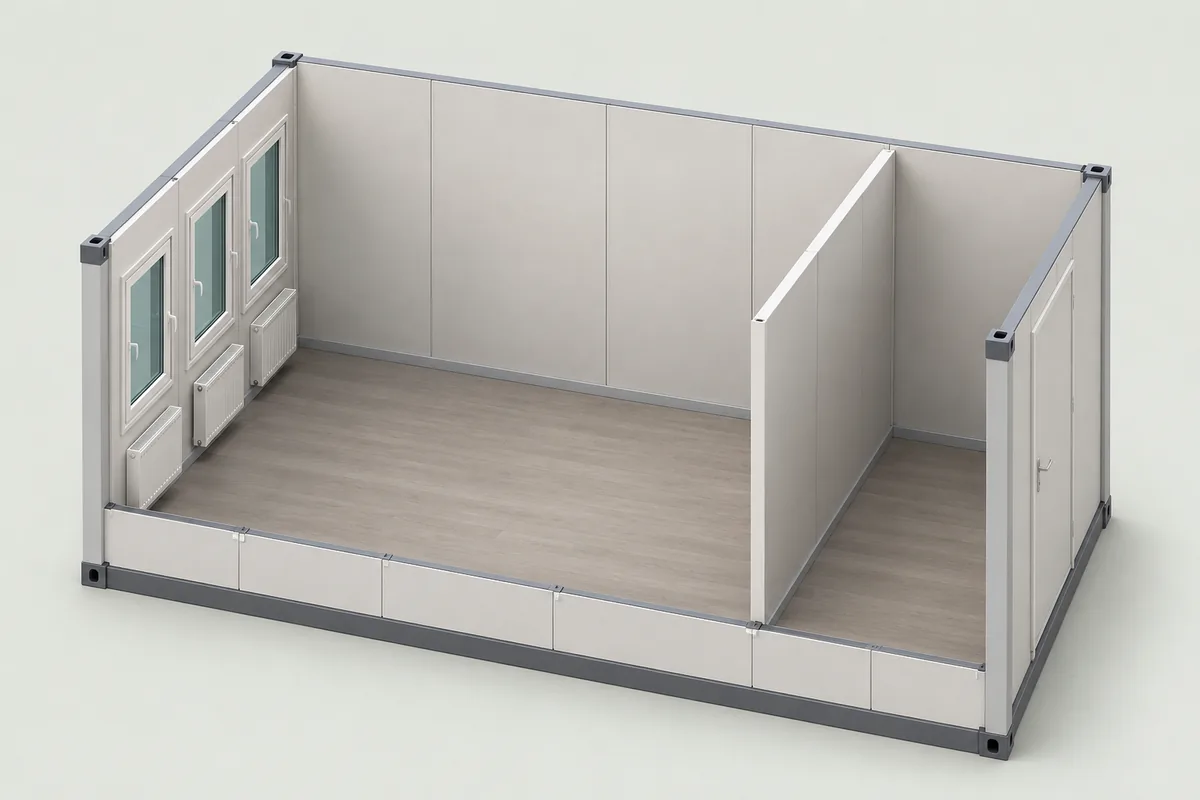

20 ft Office Module with Corridor

20 ft office with an internal corridor for linking into a larger block.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Double Office Module with Corridor

Two corridor modules joined on the long side. Corridor runs through for block assembly.

Length

6 058 mm

Width

4 886 mm

Height

2 800 mm

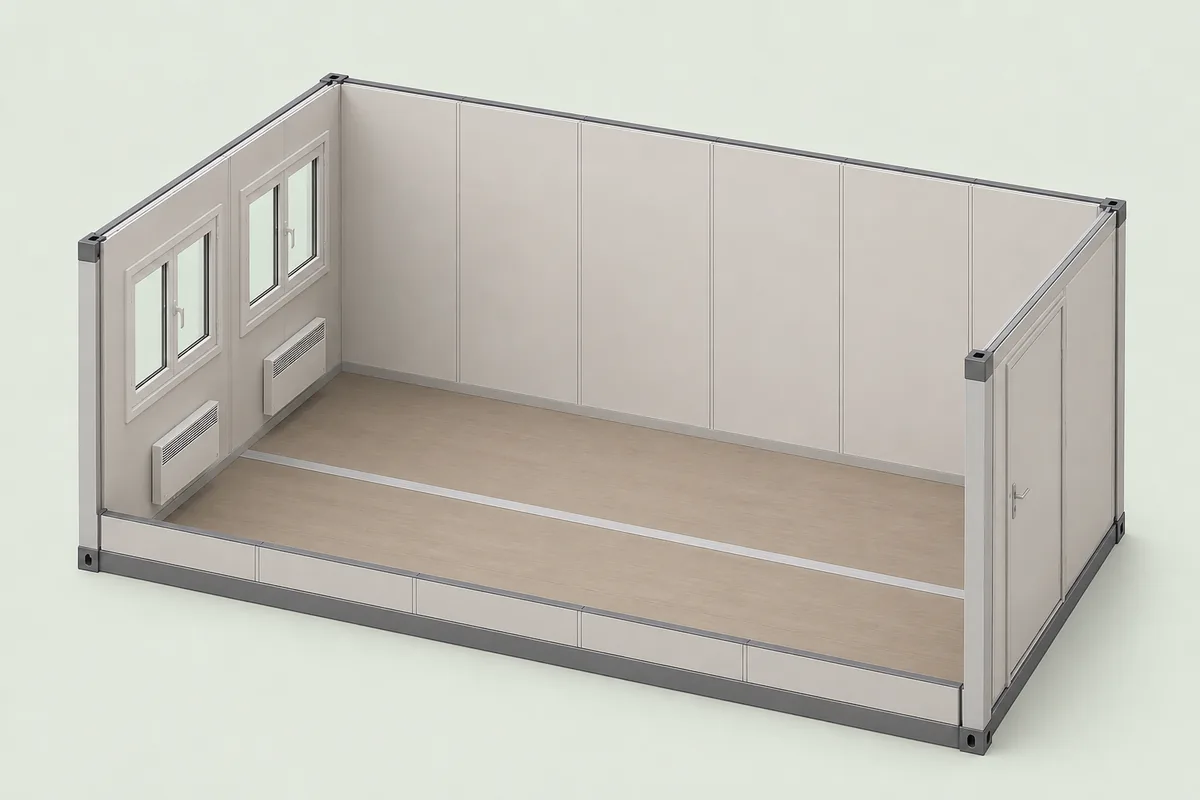

24 ft Corridor Module

Circulation module for joining office or sanitary blocks. Longer than the 20 ft units at 7344 mm.

Length

7 344 mm

Width

2 438 mm

Height

2 800 mm

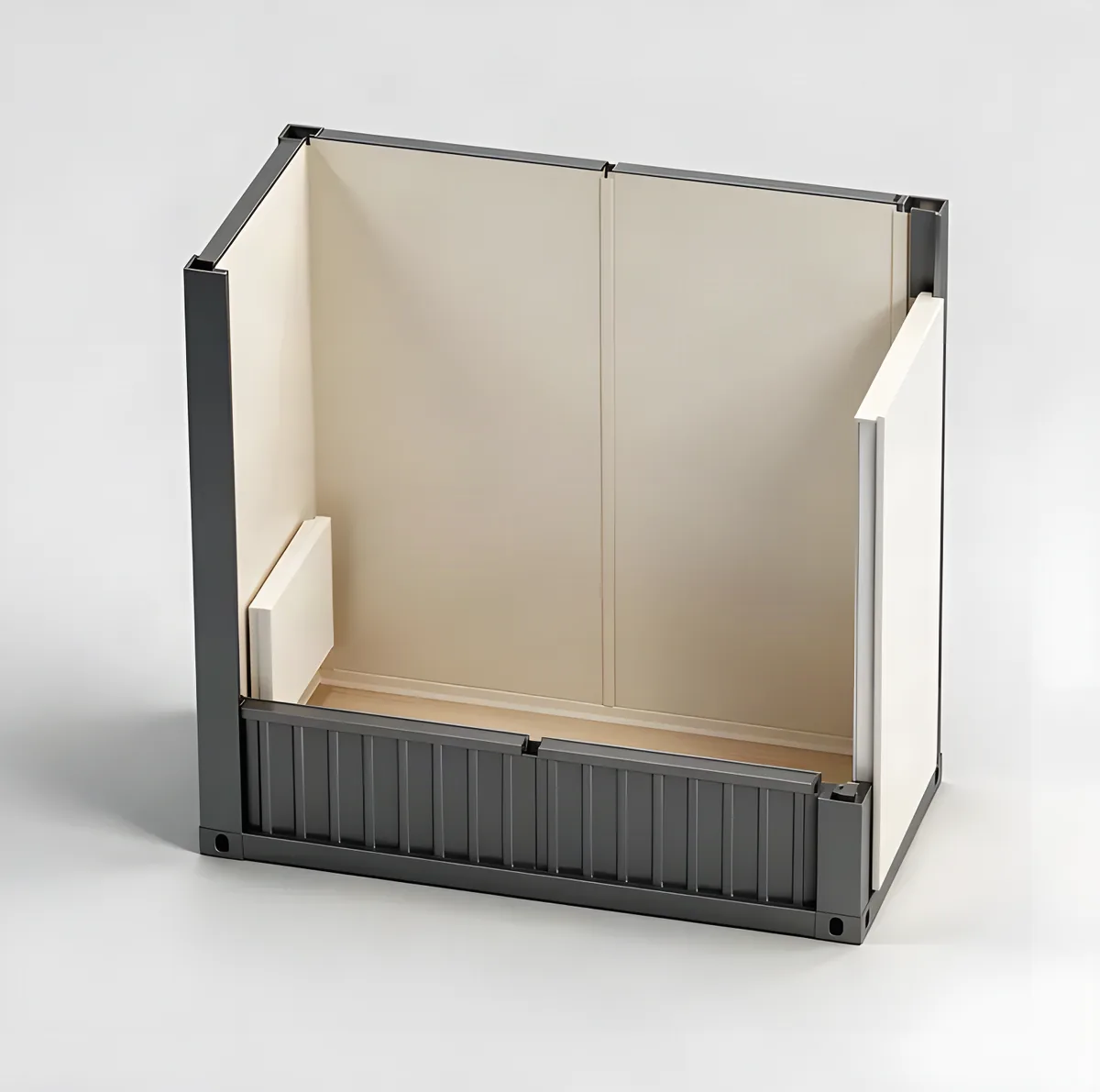

5 ft Gatehouse, No Windows

Blind version of the 5 ft gate post for equipment or unmanned use.

Length

2 438 mm

Width

1 418 mm

Height

2 800 mm

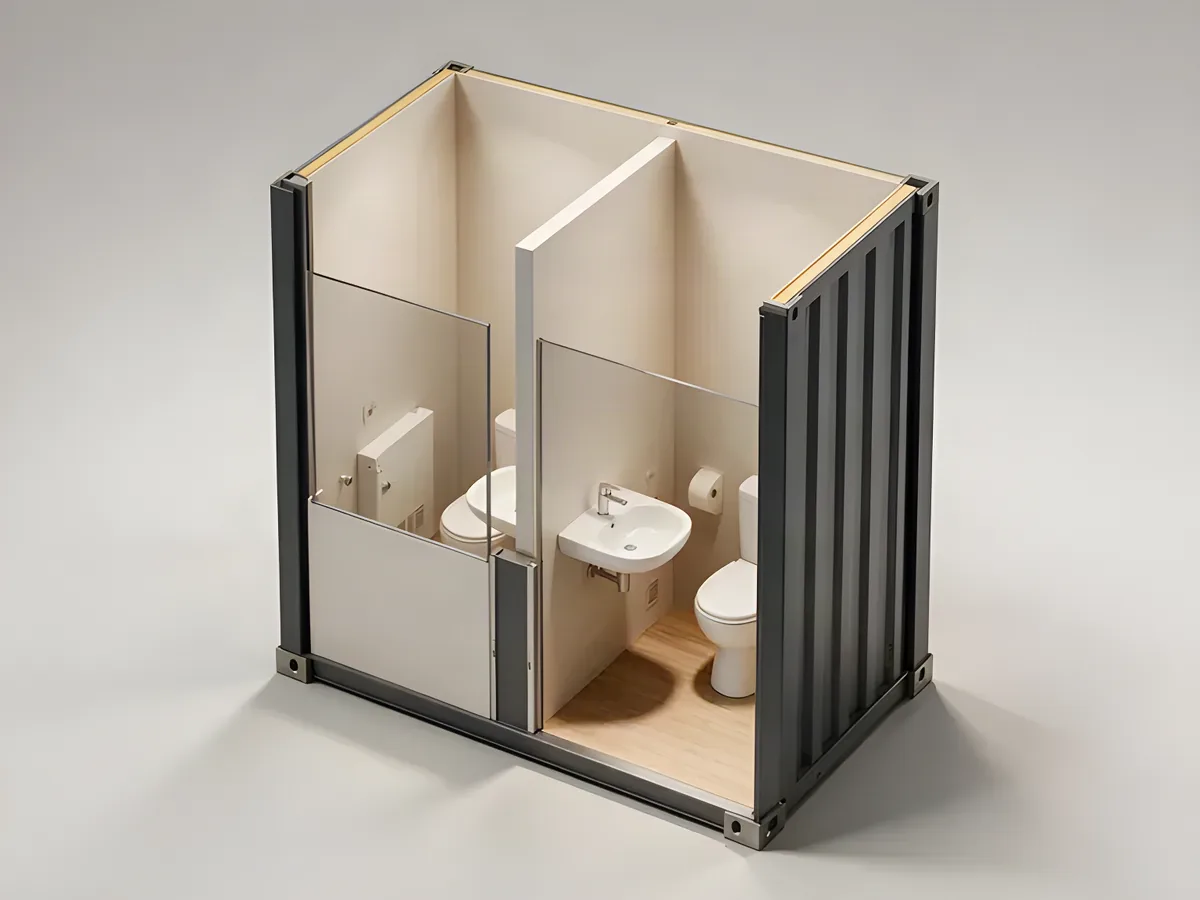

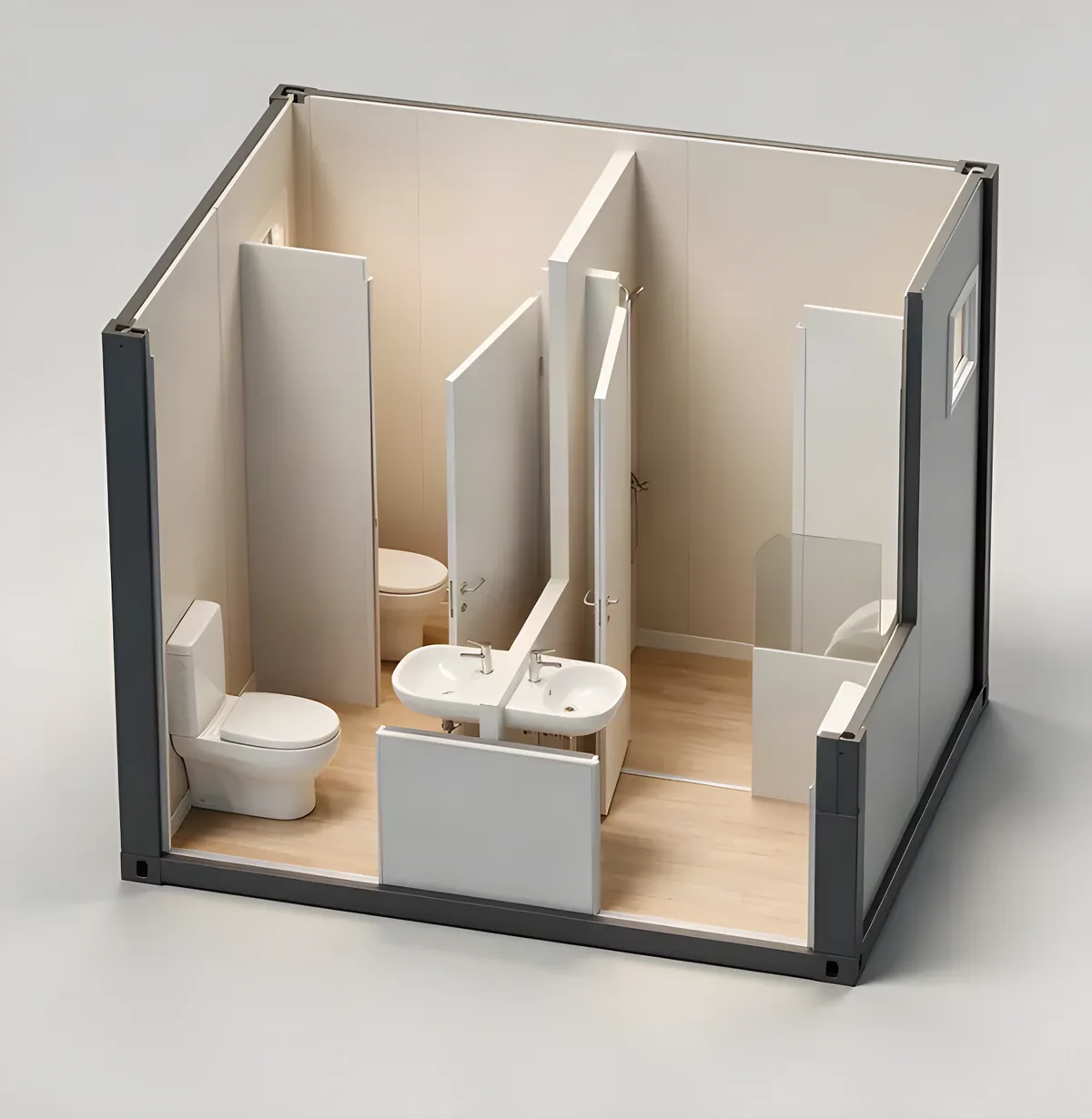

5 ft Sanitary Unit, Unisex

Smallest sanitary unit in the range, single unisex compartment.

Length

2 438 mm

Width

1 418 mm

Height

2 800 mm

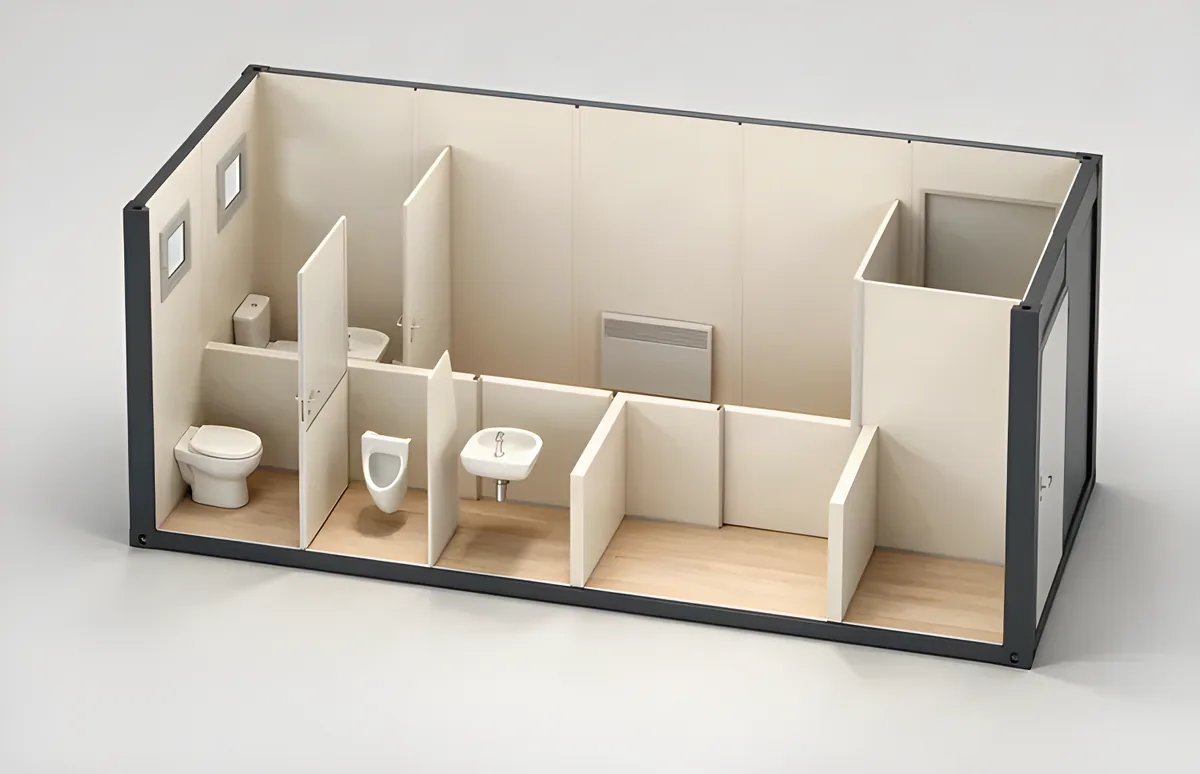

10 ft Sanitary Unit

10 ft sanitary block for small sites and short programmes.

Length

2 991 mm

Width

2 438 mm

Height

2 800 mm

10 ft Sanitary Unit, Unisex

10 ft sanitary block in unisex layout.

Length

2 991 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit, Layout A

Full 20 ft sanitary block, base layout.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit, Layout B

Full 20 ft sanitary block, alternative internal layout to A.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

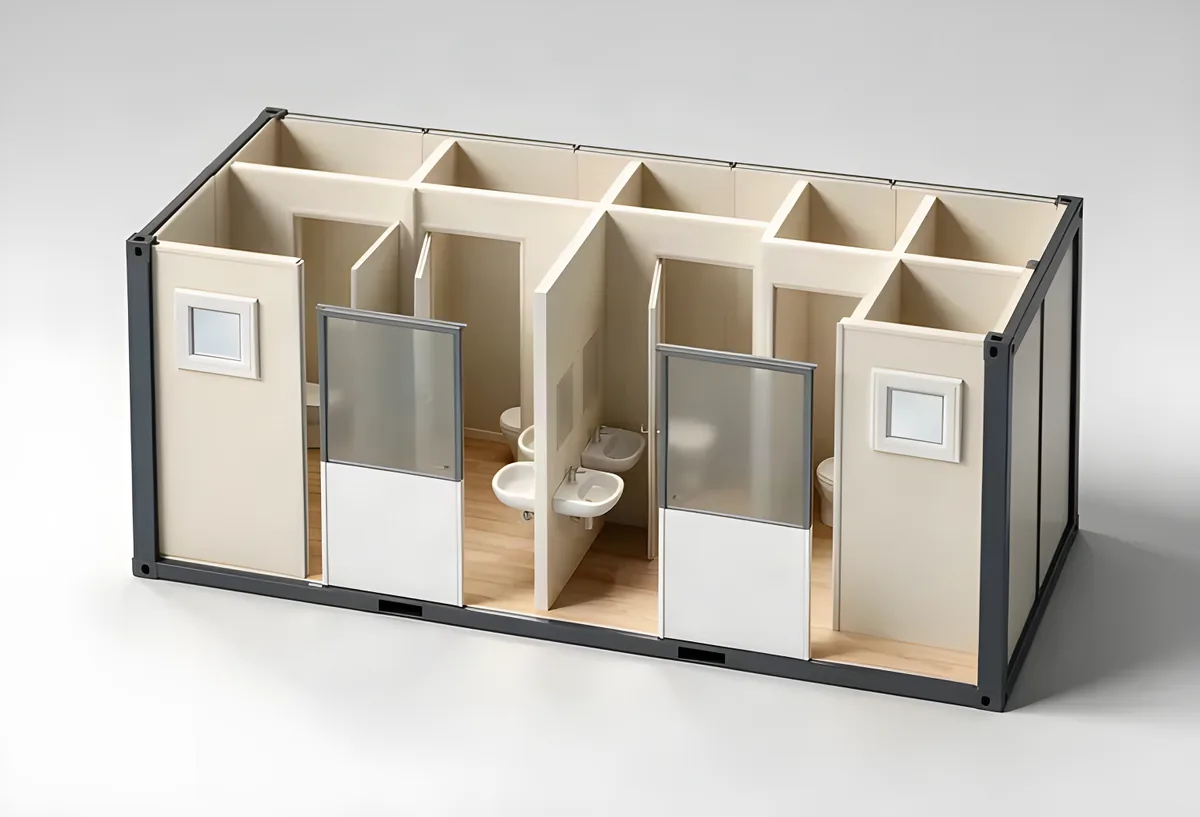

20 ft Sanitary Unit with WC

20 ft sanitary block with dedicated WC compartments.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit, Unisex

20 ft sanitary block in a shared unisex layout.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit with Separate WC

20 ft sanitary block with the WC separated from the washing area.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit with Corridor

20 ft sanitary block with an internal corridor for block assembly.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

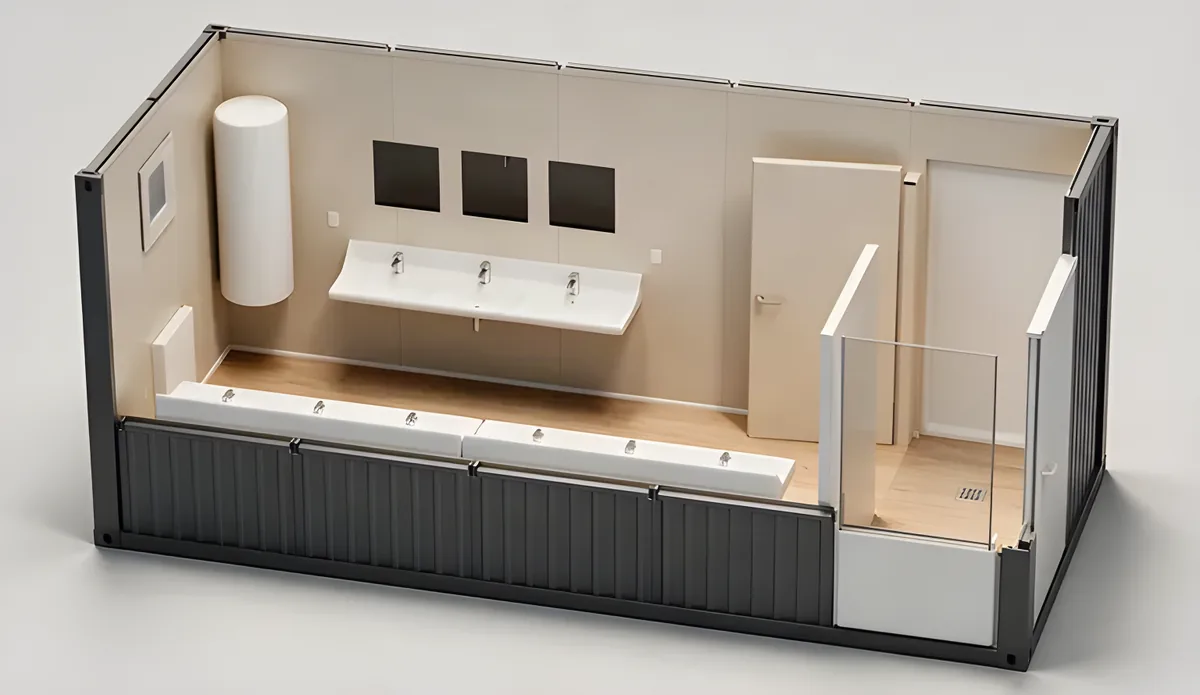

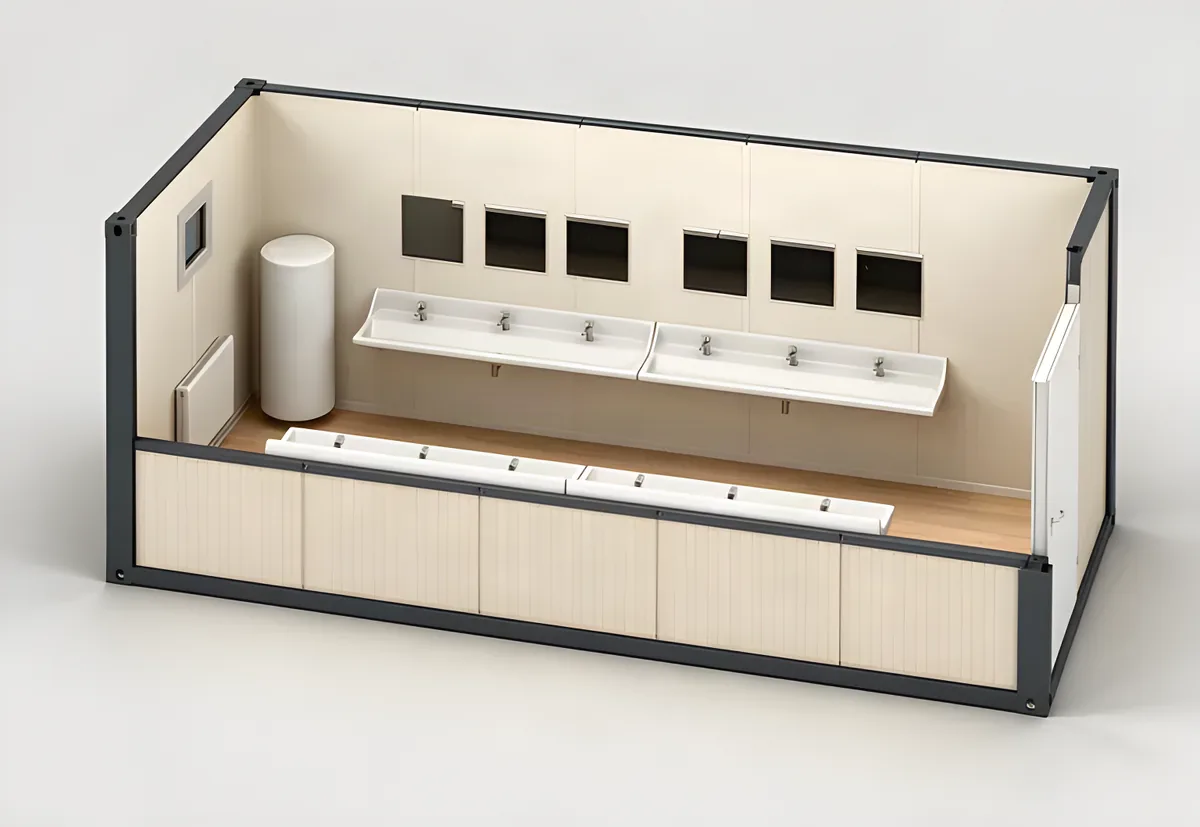

20 ft Washroom Unit

20 ft unit fitted out as a washroom rather than a full sanitary block.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Washroom Unit with Corridor

Washroom layout with an internal corridor for linking into a block.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sanitary Unit with Entryway

20 ft sanitary block with an entry lobby to keep weather out of the wet area.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

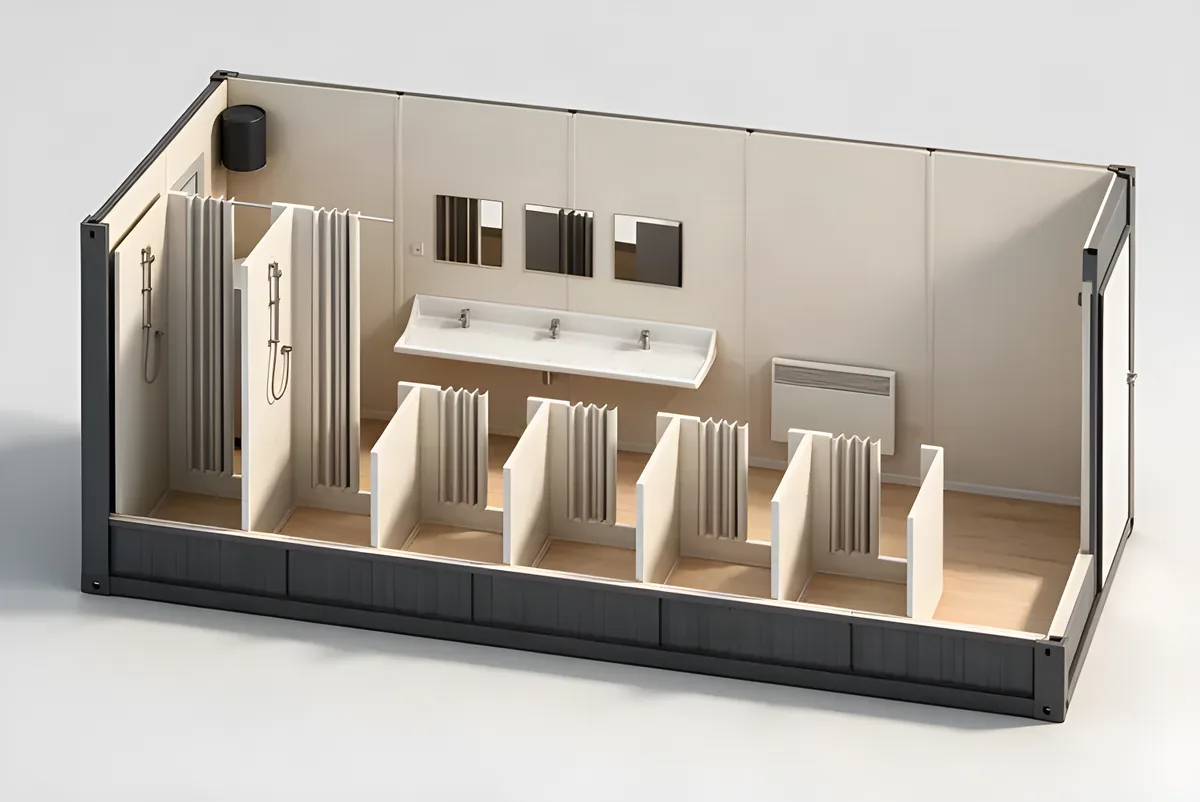

20 ft Sanitary Unit with Entryway and Shower

Entry lobby layout with showers added.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

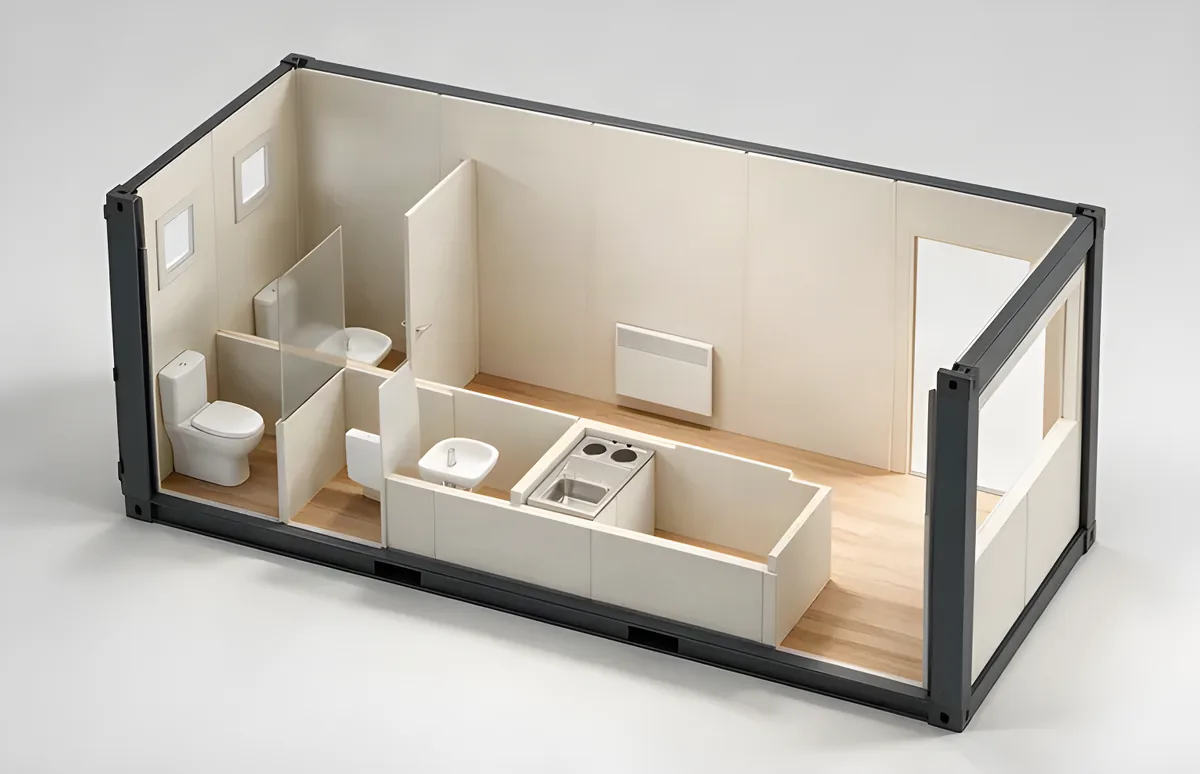

20 ft Sanitary Unit with Entrance and Small Kitchen

Entry lobby layout with a kitchen set, suited to small welfare blocks.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

6 ft Storage Container, Low

Smallest box in the steel storage range, sized for tools and site kit.

Length

1 980 mm

Width

1 850 mm

Height

1 800 mm

6 ft Storage Container, Tall

Taller and wider 6 ft box, same footprint length.

Length

1 980 mm

Width

1 950 mm

Height

1 910 mm

8 ft Storage Container, Low

8 ft box at the lower 2150 mm height.

Length

2 438 mm

Width

2 000 mm

Height

2 150 mm

8 ft Storage Container, Tall

8 ft box at 2250 mm for extra headroom.

Length

2 438 mm

Width

2 000 mm

Height

2 250 mm

8 ft Storage Container, Wide

8 ft box widened to 2200 mm with a correspondingly wider door.

Length

2 438 mm

Width

2 200 mm

Height

2 250 mm

10 ft Storage Container

10 ft box on full ISO width and standard height.

Length

2 991 mm

Width

2 438 mm

Height

2 591 mm

15 ft Storage Container, Low

15 ft box at 2150 mm, narrow body.

Length

4 500 mm

Width

2 000 mm

Height

2 150 mm

15 ft Storage Container, Tall

15 ft box at standard 2591 mm height, narrow body.

Length

4 500 mm

Width

2 000 mm

Height

2 591 mm

15 ft Storage Container, Wide

15 ft box at full ISO width and standard height.

Length

4 500 mm

Width

2 438 mm

Height

2 591 mm

20 ft Storage Container

The standard 20 ft storage box, ISO footprint.

Length

6 058 mm

Width

2 438 mm

Height

2 591 mm

40 ft Storage Container

The standard 40 ft storage box, ISO footprint.

Length

12 192 mm

Width

2 438 mm

Height

2 591 mm

10 ft Site Office

Insulated 10 ft site office, ready to plug in.

Length

2 990 mm

Width

2 435 mm

Height

2 800 mm

20 ft Site Office

Insulated 20 ft site office, the standard welfare and supervision unit.

Length

6 055 mm

Width

2 435 mm

Height

2 800 mm

20 ft Site Sanitary Unit

20 ft sanitary block built on the site office shell.

Length

6 060 mm

Width

2 440 mm

Height

2 800 mm

10 ft Sewage Tank, 2300 l

Shallow 10 ft sewage tank for short site programmes.

Length

2 991 mm

Width

2 438 mm

Height

420 mm

10 ft Sewage Tank, 4300 l

Deeper 10 ft sewage tank, nearly double the capacity on the same footprint.

Length

2 991 mm

Width

2 438 mm

Height

700 mm

20 ft Sewage Tank, 4600 l

Shallow 20 ft sewage tank, low profile for restricted headroom.

Length

6 058 mm

Width

2 438 mm

Height

420 mm

20 ft Sewage Tank, 8600 l

Largest tank in the range at 8600 litres on a 20 ft footprint.

Length

6 058 mm

Width

2 438 mm

Height

700 mm

Special Container, Built to Order

Build to order steel container in 10, 13, 15, 20, 30 or 40 ft, specified per project.

Length

Width

Height

20 ft Office Module, PIR

As the standard 20 ft office but with PIR insulation throughout for a better U value in the same envelope.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Wide Office Module, PIR

Widened to 2990 mm for a usable desk run down both sides. Over standard road width, so check permits for the destination.

Length

6 058 mm

Width

2 990 mm

Height

2 800 mm

20 ft Office Module with WC

20 ft office with a partitioned WC compartment.

Length

6 058 mm

Width

2 438 mm

Height

2 800 mm

20 ft Two Storey Office with Internal Stairs

Two 20 ft modules stacked with an internal staircase, delivered as a two storey unit.

Length

6 058 mm

Width

2 438 mm

Height

5 600 mm

5 ft Gatehouse, Three Windows

Compact manned gate or security post with three window openings including a serving hatch.

Length

2 438 mm

Width

1 418 mm

Height

2 800 mm

10 ft Gatehouse, Three Windows

Full width gate post on a 10 ft footprint with three window openings.

Length

2 991 mm

Width

2 438 mm

Height

2 800 mm

10 ft Gatehouse, One Window

10 ft gate post with a single window for restricted sight-line duties.

Length

2 991 mm

Width

2 438 mm

Height

2 800 mm

20 ft Sewage Tank, 6 m3, Heated

Low profile 20 ft sewage tank with a heating cable for winter sites.

Length

6 058 mm

Width

2 438 mm

Height

710 mm
