45 ft High Cube Pallet Wide Container

45 ft high cube widened to 2500 mm for two Euro pallets abreast.

Last updated:
45 ft High Cube Pallet Wide Container
ISO shipping
45 ft High Cube Pallet Wide Container 1

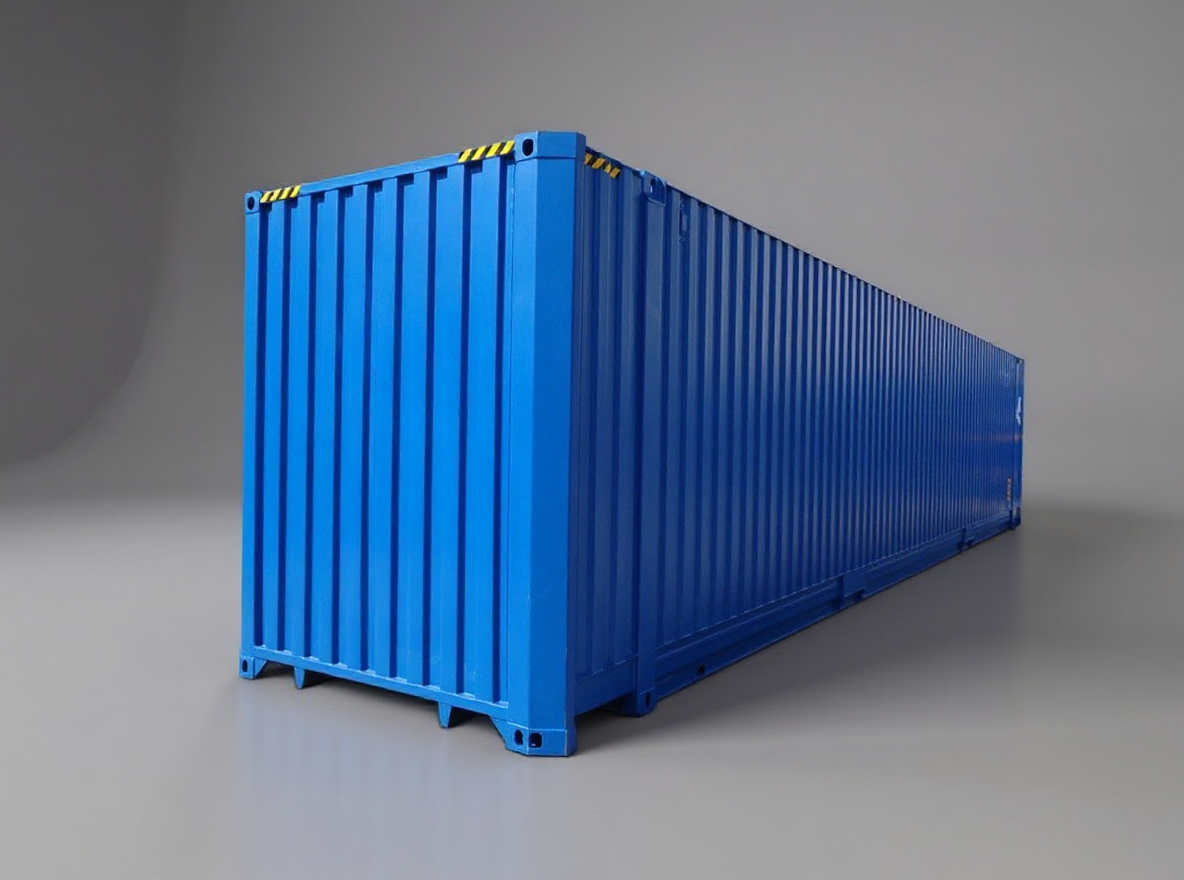

45 ft High Cube Pallet Wide Container 2

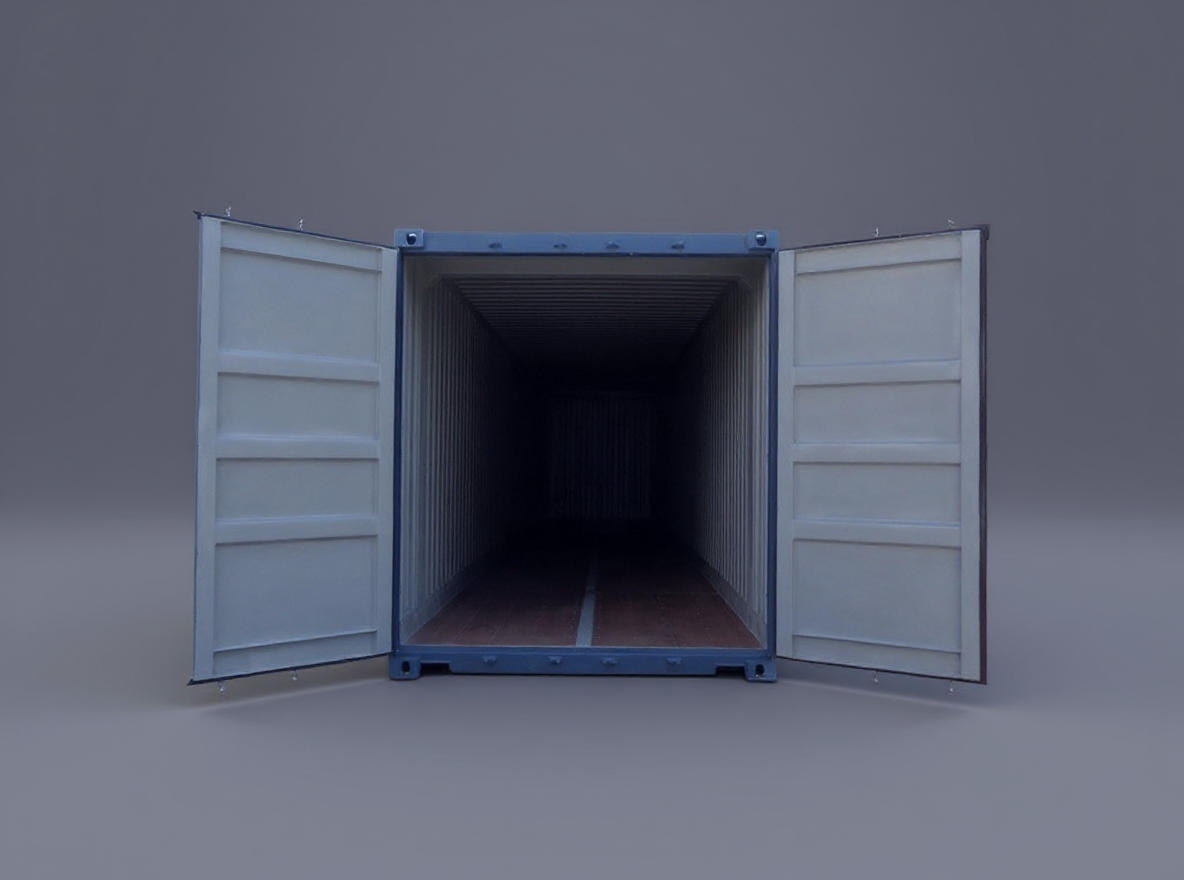

45 ft High Cube Pallet Wide Container 3
SKU: TC-ISO-45-HC-PW
On request
Pricing on request. Contact us for a tailored offer.
Request offerBack to category
CSC certified
EU delivery
B2B invoice

Certification

  • ISO 9001
  • ISO 14001
  • ISO 3834-2
  • EN 1090-1
  • CSC plate

Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.

Technical specifications

Technical specifications 45 ft High Cube Pallet Wide Container
DesignationTC-ISO-45-HC-PWManufacturer data sheet
Designation
ISO 6346 size and type codeLEG1ISO 668:2020
External dimensions
External length13 716 mmManufacturer data sheet
External width2 500 mmManufacturer data sheet
External height2 896 mmManufacturer data sheet
Internal dimensions
Internal length13 559 mmManufacturer data sheet
Internal width2 432 mmManufacturer data sheet
Internal height2 696 mmManufacturer data sheet
Openings
Door opening width2 420 mmManufacturer data sheet
Door opening height2 583 mmManufacturer data sheet
Weights
Tare weight4 860 kgManufacturer data sheet
Max payload29 140 kgManufacturer data sheet
Max gross mass34 000 kgManufacturer data sheet
Capacity
Internal volume88.9 m³Manufacturer data sheet
Internal volume in cubic feet3139.5 ft3Manufacturer data sheet
Construction
Construction materialCorten steelManufacturer data sheet
Floor constructionHardwoodManufacturer data sheet
Fittings and finish
Standard fittingsRear door with locking rod, high-placed handles, lockboxManufacturer data sheet
Paint finishRAL 5010 (gentian blue)Manufacturer data sheet

Figures not published by the manufacturer: ISO 668 designation

Specification notes

  • External width 2500 mm is outside ISO 668, which fixes Series 1 width at 2438 mm. Size code LE is the ISO 6346 code for 45 ft, 2896 mm high, width over 2438 up to 2500 mm.
  • Max gross 34,000 kg is vendor specific.
