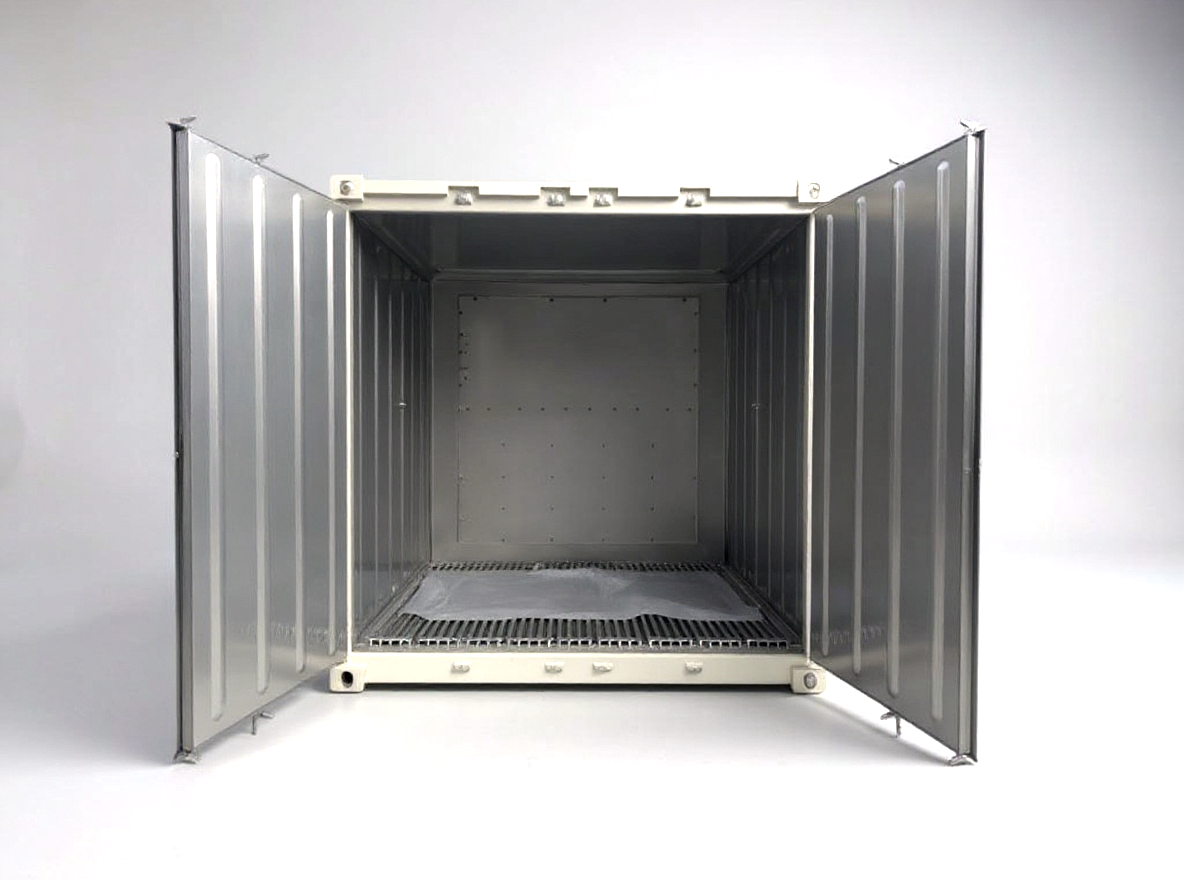

10 ft Offshore Reefer Container
10 ft offshore box with refrigeration machinery.
Last updated:
Offshore
Photograph not uploaded yet
SKU: TC-OFS-10-RF
On request
Pricing on request. Contact us for a tailored offer.
CSC certified
EU delivery
B2B invoice
Certification
- ISO 9001
- ISO 14001
- ISO 3834-2
- EN 1090-1
- CSC plate
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
Technical specifications
| Designation | TC-OFS-10-RF | Manufacturer data sheet |
|---|---|---|
| External dimensions | ||
| External length | 2 991 mm | Manufacturer data sheet |
| External width | 2 438 mm | Manufacturer data sheet |
| External height | 2 591 mm | Manufacturer data sheet |
| Internal dimensions | ||
| Internal length | 2 381 mm | Manufacturer data sheet |
| Internal width | 2 284 mm | Manufacturer data sheet |
| Internal height | 2 261 mm | Manufacturer data sheet |
| Openings | ||
| Door opening width | 2 280 mm | Manufacturer data sheet |
| Door opening height | 2 244 mm | Manufacturer data sheet |
| Weights | ||
| Tare weight | 2 820 kg | Manufacturer data sheet |
| Max payload | 8 000 kg | Manufacturer data sheet |
| Max gross mass | 10 820 kg | Manufacturer data sheet |
| Capacity | ||
| Internal volume | 12.3 m³ | Manufacturer data sheet |
| Internal volume in cubic feet | 434.4 ft3 | Manufacturer data sheet |
| Climate and power | ||
| Refrigeration unit | Refrigeration unit fitted | Manufacturer data sheet |
| Construction | ||
| Construction material | Corten steel | Manufacturer data sheet |
| Floor construction | Steel | Manufacturer data sheet |
| Certification | ||
| Certification standard | DNV 2.7-1 / EN 12079-1 | Manufacturer data sheet |
| Lifting arrangement | Lifting sling set included on delivery | Manufacturer data sheet |
| Fittings and finish | ||
| Standard fittings | Roof padeyes for sling attachment | Manufacturer data sheet |
| Paint finish | RAL 9010 (pure white) | Manufacturer data sheet |
Figures not published by the manufacturer: ISO 668 designation
Specification notes
- Temperature range and power data are not published.
