20 ft High Cube Double Door plus Double Side Door Container

20 ft high cube with doors at both ends and both long sides.

Last updated:
20 ft High Cube Double Door plus Double Side Door Container
Multi-door
20 ft High Cube Double Door plus Double Side Door Container 1

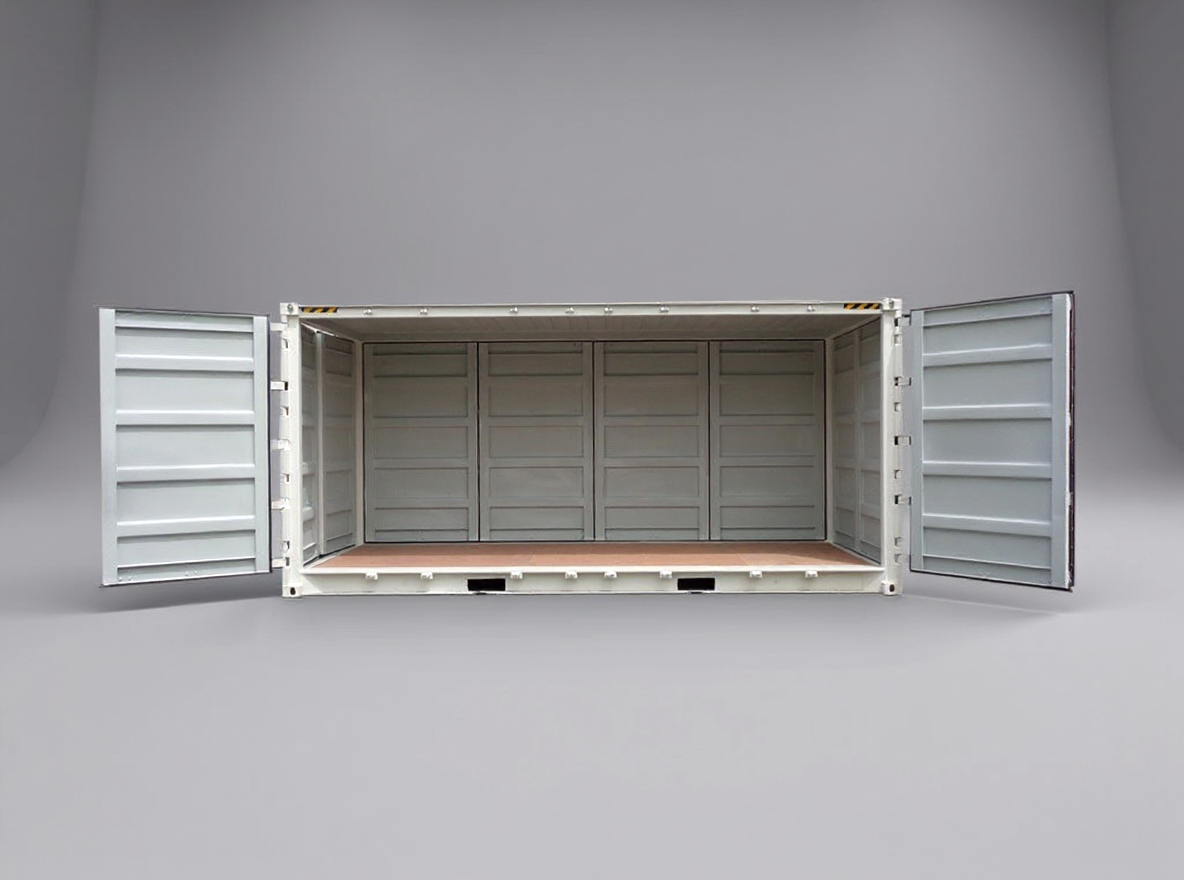

20 ft High Cube Double Door plus Double Side Door Container 2

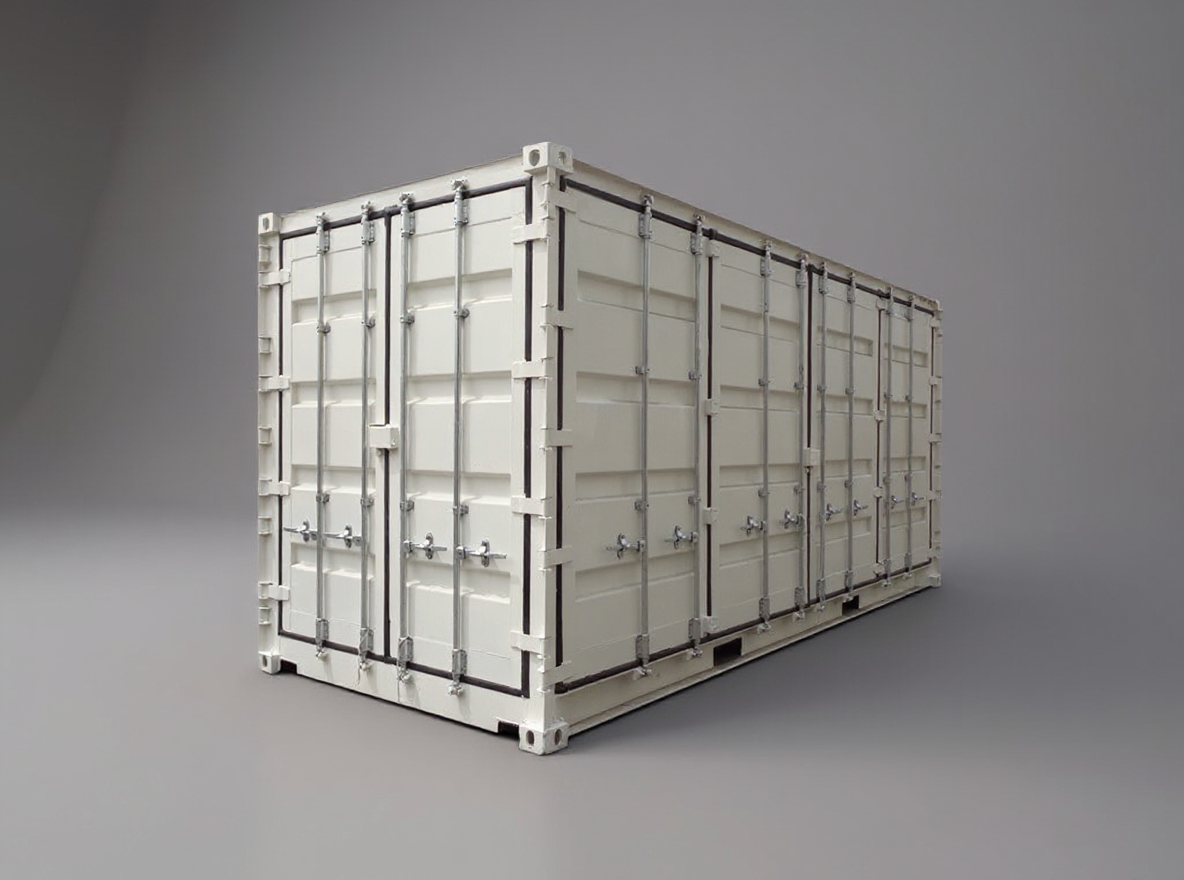

20 ft High Cube Double Door plus Double Side Door Container 3
SKU: TC-MD-20-HC-DD-DSD
On request
Pricing on request. Contact us for a tailored offer.
Request offerBack to category
CSC certified
EU delivery
B2B invoice

Certification

  • ISO 9001
  • ISO 14001
  • ISO 3834-2
  • EN 1090-1
  • CSC plate

Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.

Technical specifications

Technical specifications 20 ft High Cube Double Door plus Double Side Door Container
DesignationTC-MD-20-HC-DD-DSDManufacturer data sheet
Designation
ISO 668 designation1CCCISO 668:2020
External dimensions
External length6 058 mmManufacturer data sheet
External width2 438 mmManufacturer data sheet
External height2 896 mmManufacturer data sheet
Internal dimensions
Internal length5 844 mmManufacturer data sheet
Internal width2 224 mmManufacturer data sheet
Internal height2 607 mmManufacturer data sheet
Openings
Door opening width2 114 mmManufacturer data sheet
Door opening height2 494 mmManufacturer data sheet
Side door opening width5 734 mmManufacturer data sheet
Side door opening height2 494 mmManufacturer data sheet
Weights
Tare weight4 270 kgManufacturer data sheet
Max payload26 320 kgManufacturer data sheet
Max gross mass30 480 kgManufacturer data sheet
Capacity
Internal volume33.9 m³Manufacturer data sheet
Internal volume in cubic feet1197.2 ft3Manufacturer data sheet
Construction
Construction materialCorten steelManufacturer data sheet
Floor constructionHardwoodManufacturer data sheet
Configuration
Door configurationAll four sidesManufacturer data sheet
Fittings and finish
Standard fittingsDouble doors with locking rods, four side doors, forklift pockets, lockboxManufacturer data sheet

Figures not published by the manufacturer: Paint finish

Specification notes

  • Tare 4,270 kg plus payload 26,320 kg sums to 30,590 kg, 110 kg above the stated 30,480 kg max gross.
