Offshore
10 ft Offshore Reefer Container One way
10 ft offshore box with refrigeration machinery.
2 991 × 2 438 × 2 591 mm
- Max payload
- 8 000 kg
- Internal volume
- 12 m³
OffshoreSKU: TC-OFS-10

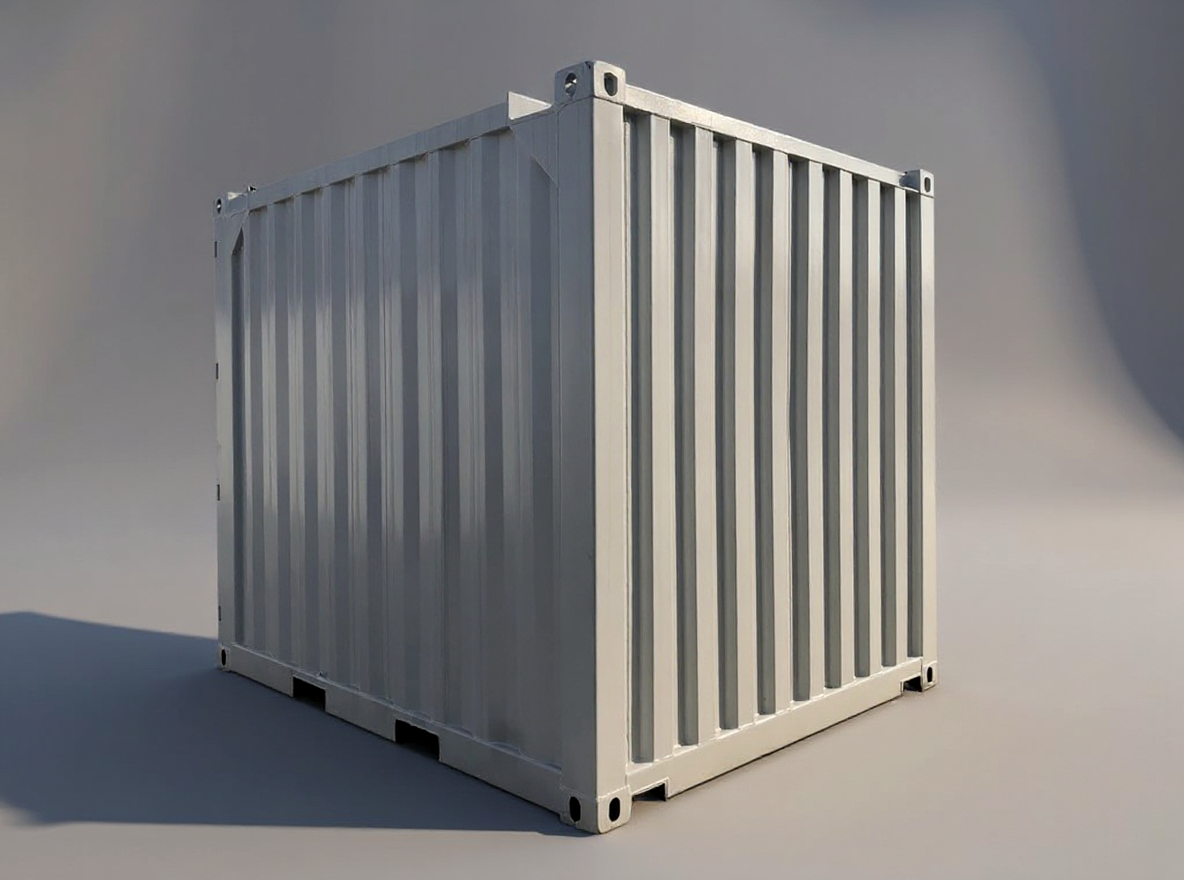

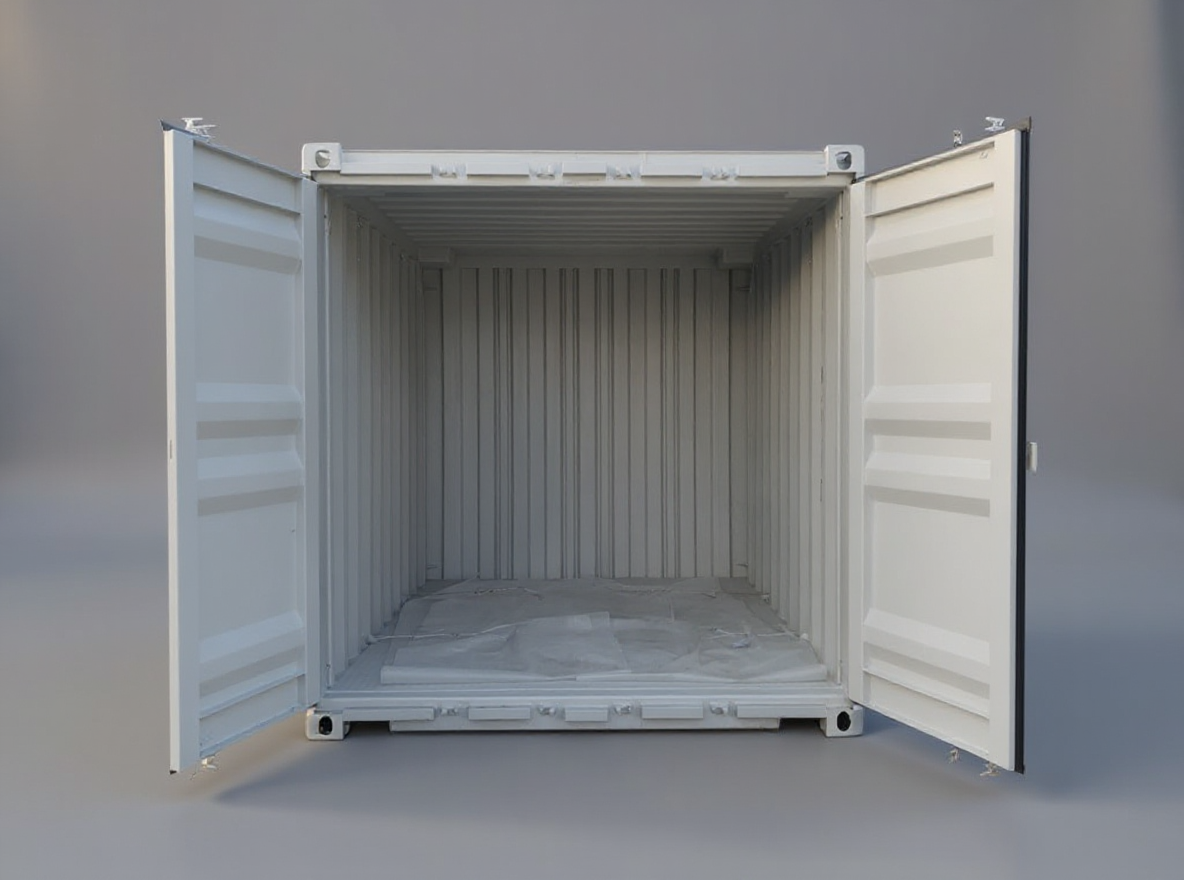

10 ft Offshore Container One way
10 ft offshore box certified for lifting in open sea.
Photography
4 photographsConfigure
Configure this unit
Your selection travels with the enquiry, so the offer starts from what you chose.
Your configuration
As published, one unit.
Fixed quote in 3 to 5 working days Pricing on request. Contact us for a tailored offer.
- CSC certified
- EU delivery
- B2B invoice
- EN 1090 EXC2 steel
Before you ask
What buyers ask first
- Condition
- One way: bought in as a finished marine container, not built in our hall.
- Standard fittings
- Roof padeyes for sling attachment
- Conformity
- DNV 2.7-1 / EN 12079-1
- Lead time
- 6 to 10 weeks, catalogue purchase.
- Offer
- Fixed price and lead time, typically within 3 to 5 working days.
- Delivery
- EXW Bánovce nad Bebravou by default, DAP and DDP on request.
From the catalogue record and the company facts. Binding terms are set in the written offer.
Key figures
10 ft Offshore Container
Last updated:
- External length
- 2 991mm
- External width
- 2 438mm
- External height
- 2 591mm
- Max payload
- 9 540kg
- Internal volume
- 15.61m³
- Tare weight
- 1 960kg
To scale
The unit beside a person
Drawn from the unit's own published millimetres, beside a 1.80 m person. Drag to turn it; the colour follows your choice in the configurator.
Drag to turn, arrow keys to rotate
Drawn to the published dimensions. The photographs show the unit as delivered.
Technical specifications
19 figures in 8 groups
Every figure is from the Manufacturer data sheet; the designation rows follow ISO 668:2020.
| External length | 2 991 mm |
|---|---|
| External width | 2 438 mm |
| External height | 2 591 mm |
| Internal length | 2 829 mm |
|---|---|
| Internal width | 2 346 mm |
| Internal height | 2 352 mm |
| Door opening width | 2 334 mm |
|---|---|
| Door opening height | 2 253 mm |
| Tare weight | 1 960 kg |
|---|---|
| Max payload | 9 540 kg |
| Max gross mass | 11 500 kg |
| Internal volume | 15.61 m³ |
|---|---|
| Internal volume in cubic feet | 551.3 ft3 |
| Construction material | Corten steel |
|---|---|
| Floor construction | Steel |
| Certification standard | DNV 2.7-1 / EN 12079-1 |
|---|---|
| Lifting arrangement | Lifting sling set included on delivery |
| Standard fittings | Roof padeyes for sling attachment |
|---|---|
| Paint finish | RAL 7035 (light grey) |
Figures not published by the manufacturer: ISO 668 designation, Refrigeration unit
Specification notes
- No ISO 668 designation. ISO 668 defines 10 ft only as 1D at 2438 mm height, rated 10,160 kg.
Certification
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
- ISO 9001QualityAudited quality management. Every container follows one documented, repeatable process.
- ISO 14001EnvironmentCertified environmental management across the whole production line.
- EN ISO 3834-2WeldingTop-level certification for fusion-welding quality in steel fabrication.
- EN 1090-1EXC2Structural steel executed to EXC2, the class required for load-bearing welded structures.
- CSC plateTransportContainer Safety Convention plate. Approved for international stacking and transport.
Compare within the family
Offshore: 5 units on the figures that matter for this one.
| SKU | External length | External width | External height | Max payload | Internal volume | Tare weight |
|---|---|---|---|---|---|---|
| 10 ft Offshore ContainerOne wayTC-OFS-10This unit | 2 991 mm | 2 438 mm | 2 591 mm | 9 540 kg | 15.61 m³ | 1 960 kg |
| 10 ft Offshore Reefer ContainerOne wayTC-OFS-10-RFSize up | 2 991 mm | 2 438 mm | 2 591 mm | 8 000 kg | 12.3 m³ | 2 820 kg |
| 20 ft Offshore ContainerOne wayTC-OFS-20 | 6 058 mm | 2 438 mm | 2 591 mm | 13 530 kg | 32.54 m³ | 2 970 kg |
| 20 ft Offshore Reefer ContainerOne wayTC-OFS-20-RF | 6 058 mm | 2 438 mm | 2 591 mm | 19 620 kg | 28.1 m³ | 4 380 kg |
| 20 ft High Cube Offshore ContainerOne wayTC-OFS-20-HC | 6 058 mm | 2 438 mm | 2 896 mm | 20 120 kg | 33.82 m³ | 4 630 kg |
