Reefer and insulated
20 ft Insulated Container One way
20 ft insulated body with no refrigeration machinery fitted.
6 058 × 2 438 × 2 591 mm
- Max payload
- 27 040 kg
- Internal volume
- 30 m³
Reefer and insulatedSKU: TC-RF-40-HC
40 ft High Cube Reefer Container One way
40 ft high cube integral reefer, the standard perishables unit.
Photography
4 photographsConfigure
Configure this unit
Your selection travels with the enquiry, so the offer starts from what you chose.
Options
Your configuration
As published, one unit.
Fixed quote in 3 to 5 working days Pricing on request. Contact us for a tailored offer.
- CSC certified
- EU delivery
- B2B invoice
- EN 1090 EXC2 steel
Before you ask
What buyers ask first
- Condition
- One way: bought in as a finished marine container, not built in our hall.
- Lead time
- 6 to 10 weeks, catalogue purchase.
- Offer
- Fixed price and lead time, typically within 3 to 5 working days.
- Delivery
- EXW Bánovce nad Bebravou by default, DAP and DDP on request.
From the catalogue record and the company facts. Binding terms are set in the written offer.
Key figures
40 ft High Cube Reefer Container
Last updated:
- External length
- 12 192mm
- External width
- 2 438mm
- External height
- 2 896mm
- Max payload
- 30 410kg
- Internal volume
- 67.7m³
- Tare weight
- 4 590kg
To scale
The unit beside a person
Drawn from the unit's own published millimetres, beside a 1.80 m person. Drag to turn it; the colour follows your choice in the configurator.
Drag to turn, arrow keys to rotate

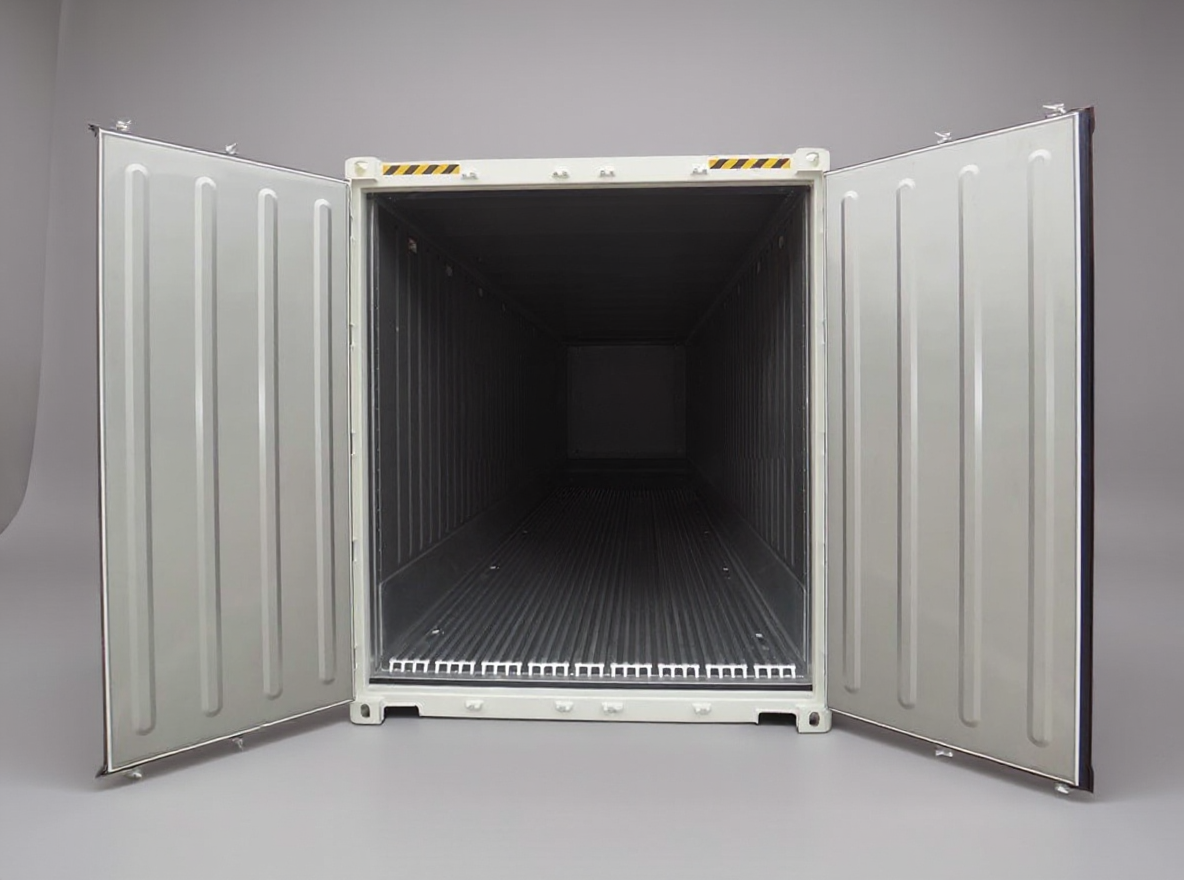

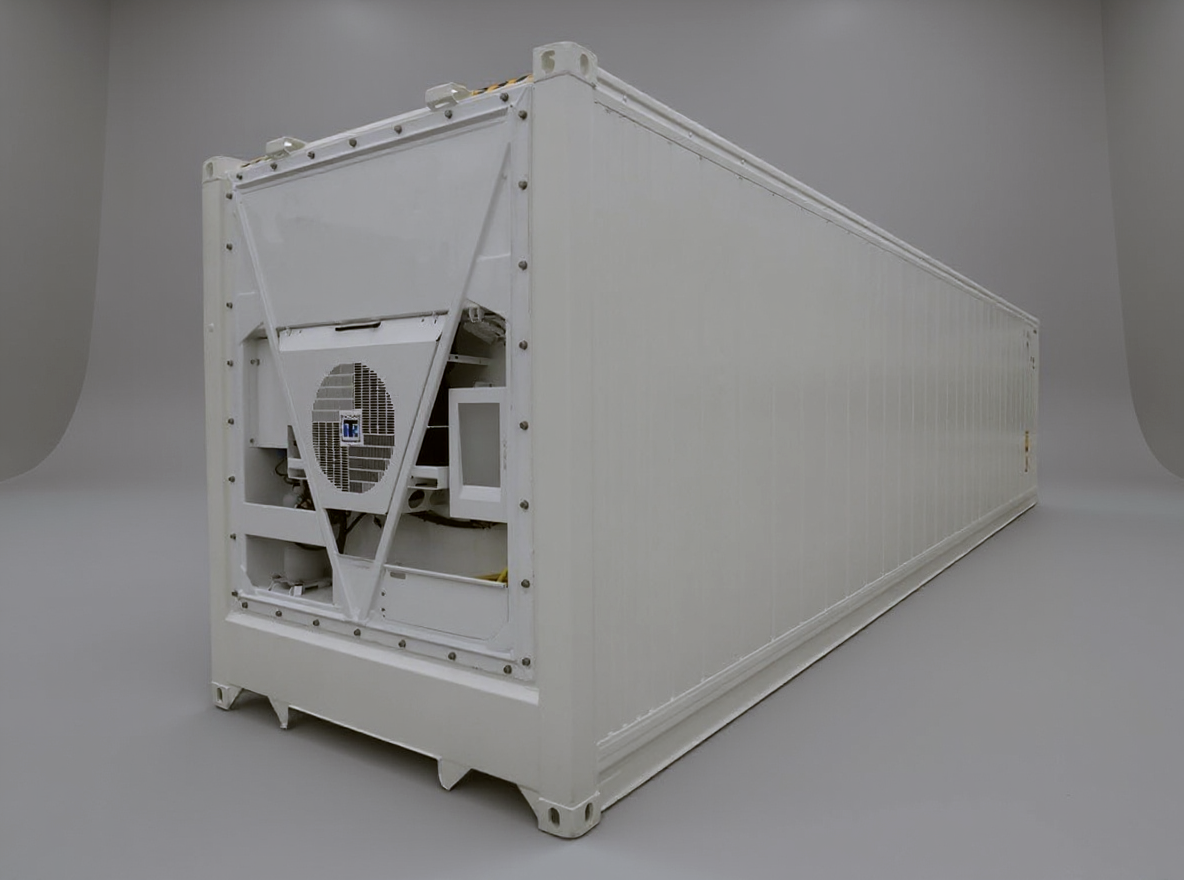

Drawn to the published dimensions. The photographs show the unit as delivered.
Technical specifications
20 figures in 9 groups
Every figure is from the Manufacturer data sheet; the designation rows follow ISO 668:2020.
| ISO 668 designation | 1AAAISO 668:2020 |
|---|---|
| ISO 6346 size and type code | 45R1ISO 668:2020 |
| External length | 12 192 mm |
|---|---|
| External width | 2 438 mm |
| External height | 2 896 mm |
| Internal length | 11 590 mm |
|---|---|
| Internal width | 2 290 mm |
| Internal height | 2 548 mm |
| Door opening width | 2 294 mm |
|---|---|
| Door opening height | 2 569 mm |
| Tare weight | 4 590 kg |
|---|---|
| Max payload | 30 410 kg |
| Max gross mass | 35 000 kg |
| Internal volume | 67.7 m³ |
|---|---|
| Internal volume in cubic feet | 2390.8 ft3 |
| Insulation | Polyurethane foam |
|---|---|
| Refrigeration unit | Thermo King or Carrier |
| Construction material | Corten steel |
|---|---|
| Floor construction | Steel |
| Paint finish | RAL 9010 (pure white) |
|---|
Figures not published by the manufacturer: Power supply, Standard fittings
Specification notes
- Max gross 35,000 kg exceeds the ISO 668 rating of 30,480 kg for 1AAA.
- Door opening height 2,569 mm exceeds the stated internal height of 2,548 mm.
Certification
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
- ISO 9001QualityAudited quality management. Every container follows one documented, repeatable process.
- ISO 14001EnvironmentCertified environmental management across the whole production line.
- EN ISO 3834-2WeldingTop-level certification for fusion-welding quality in steel fabrication.
- EN 1090-1EXC2Structural steel executed to EXC2, the class required for load-bearing welded structures.
- CSC plateTransportContainer Safety Convention plate. Approved for international stacking and transport.
Compare within the family
Reefer and insulated: 5 units on the figures that matter for this one.
| SKU | External length | External width | External height | Max payload | Internal volume | Tare weight |
|---|---|---|---|---|---|---|
| 20 ft Standard Reefer ContainerOne wayTC-RF-20 | 6 058 mm | 2 438 mm | 2 591 mm | 27 480 kg | 28.6 m³ | 3 000 kg |
| 20 ft Reefer Domestic ContainerOne wayTC-RF-20-DOM | 6 058 mm | 2 438 mm | 2 591 mm | 21 230 kg | 28.8 m³ | 2 770 kg |
| 20 ft Insulated ContainerOne wayTC-RF-20-INSSize down | 6 058 mm | 2 438 mm | 2 591 mm | 27 040 kg | 30.2 m³ | 3 440 kg |
| 40 ft High Cube Reefer ContainerOne wayTC-RF-40-HCThis unit | 12 192 mm | 2 438 mm | 2 896 mm | 30 410 kg | 67.7 m³ | 4 590 kg |
| 45 ft High Cube Reefer Pallet Wide ContainerOne wayTC-RF-45-HC-PWSize up | 13 716 mm | 2 556 mm | 2 896 mm | 28 000 kg | 83.7 m³ | 6 000 kg |
