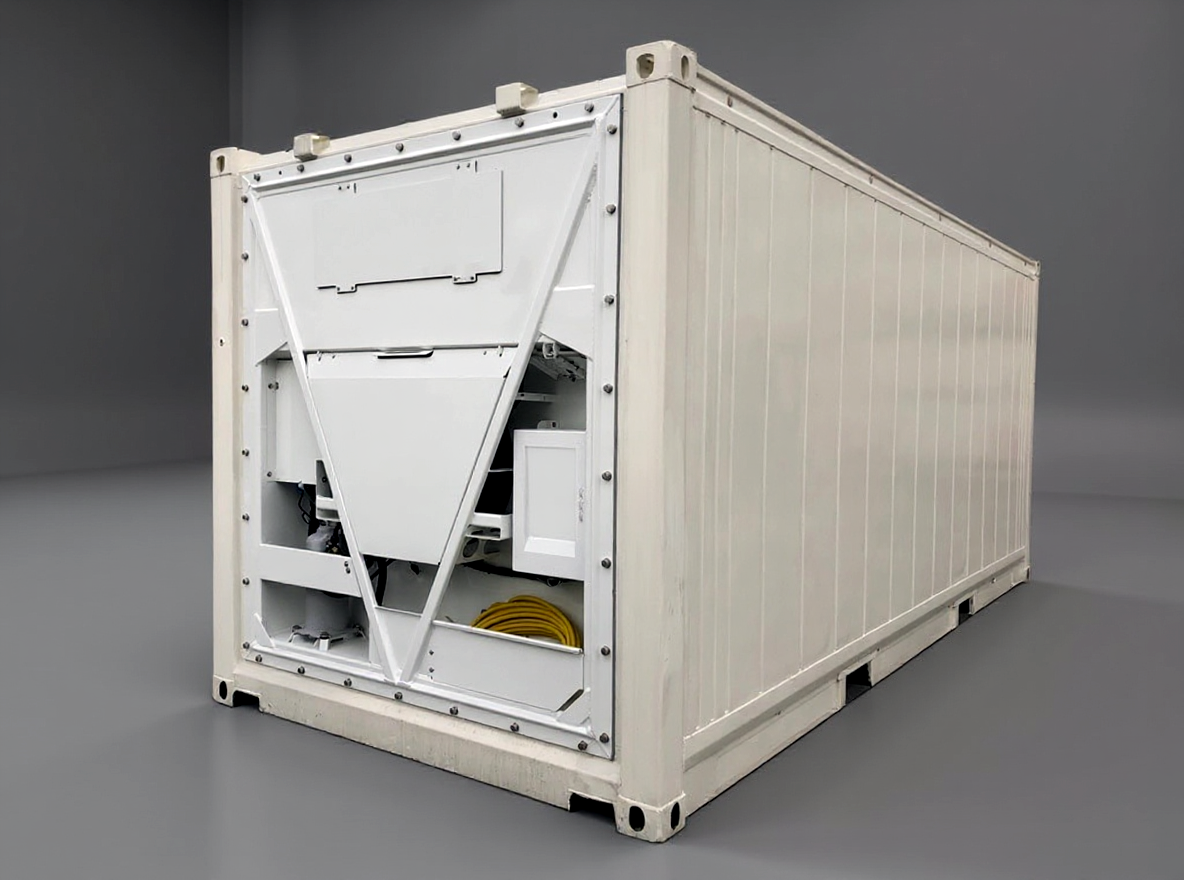

20 ft Standard Reefer Container
20 ft integral reefer on a T-section floor.
Last updated:
Reefer and insulated
SKU: TC-RF-20
On request
Pricing on request. Contact us for a tailored offer.
CSC certified
EU delivery
B2B invoice
Certification
- ISO 9001
- ISO 14001
- ISO 3834-2
- EN 1090-1
- CSC plate
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
Technical specifications
| Designation | TC-RF-20 | Manufacturer data sheet |
|---|---|---|
| Designation | ||
| ISO 668 designation | 1CC | ISO 668:2020 |
| ISO 6346 size and type code | 22R1 | ISO 668:2020 |
| External dimensions | ||
| External length | 6 058 mm | Manufacturer data sheet |
| External width | 2 438 mm | Manufacturer data sheet |
| External height | 2 591 mm | Manufacturer data sheet |
| Internal dimensions | ||
| Internal length | 5 450 mm | Manufacturer data sheet |
| Internal width | 2 275 mm | Manufacturer data sheet |
| Internal height | 2 292 mm | Manufacturer data sheet |
| Openings | ||
| Door opening width | 2 288 mm | Manufacturer data sheet |
| Door opening height | 2 251 mm | Manufacturer data sheet |
| Weights | ||
| Tare weight | 3 000 kg | Manufacturer data sheet |
| Max payload | 27 480 kg | Manufacturer data sheet |
| Max gross mass | 30 480 kg | Manufacturer data sheet |
| Capacity | ||
| Internal volume | 28.6 m³ | Manufacturer data sheet |
| Internal volume in cubic feet | 1 010 ft3 | Manufacturer data sheet |
| Climate and power | ||
| Insulation | Polyurethane foam | Manufacturer data sheet |
| Refrigeration unit | Thermo King or Carrier | Manufacturer data sheet |
| Power supply | External power supply or clip-on diesel generator | Manufacturer data sheet |
| Construction | ||
| Construction material | Corten steel | Manufacturer data sheet |
| Floor construction | Steel, T-section for airflow | Manufacturer data sheet |
| Fittings and finish | ||
| Paint finish | RAL 9010 (pure white) | Manufacturer data sheet |
Figures not published by the manufacturer: Standard fittings
Specification notes
- Cargo access height printed separately as 2,221 mm.
- Temperature range, voltage and power draw are not published.
