Multi-doorSKU: TC-MD-40-HC-DD

40 ft High Cube Double Door Container One way

40 ft high cube with doors at both ends.

Photography

6 photographs

Configure

Configure this unit

Your selection travels with the enquiry, so the offer starts from what you chose.

Colour
ColourAs published

Published finishes, as delivered by the factory.

Common finishes

The five codes the catalogue publishes most often. Shortcuts into the RAL picker, nothing more: a finish outside this unit's published set is quoted as a custom finish.

Screen colours are approximate. The RAL sample card is binding.

Your configuration

As published, one unit.

Request offer with this configurationTalk to an engineer

Fixed quote in 3 to 5 working days Pricing on request. Contact us for a tailored offer.

  • CSC certified
  • EU delivery
  • B2B invoice
  • EN 1090 EXC2 steel

Before you ask

What buyers ask first

Condition
One way: bought in as a finished marine container, not built in our hall.
Standard fittings
Double doors front and rear, locking rods, high-placed handles, lockbox
Lead time
6 to 10 weeks, catalogue purchase.
Offer
Fixed price and lead time, typically within 3 to 5 working days.
Delivery
EXW Bánovce nad Bebravou by default, DAP and DDP on request.

From the catalogue record and the company facts. Binding terms are set in the written offer.

Key figures

40 ft High Cube Double Door Container

Last updated:

External length
12 192mm
External width
2 438mm
External height
2 896mm
Max payload
26 480kg
Internal volume
75.9m³
Tare weight
4 000kg

To scale

The unit beside a person

Drawn from the unit's own published millimetres, beside a 1.80 m person. Drag to turn it; the colour follows your choice in the configurator.

Shown in RAL 5010

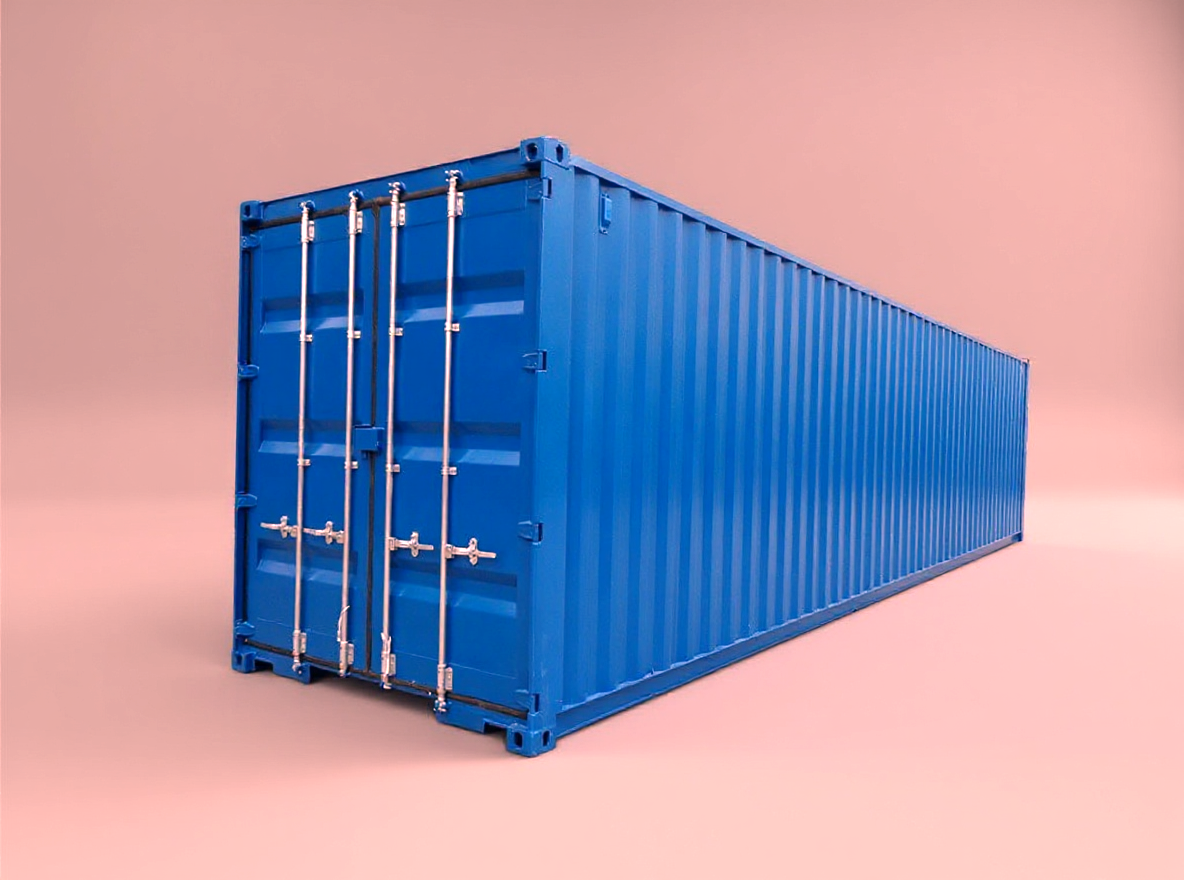

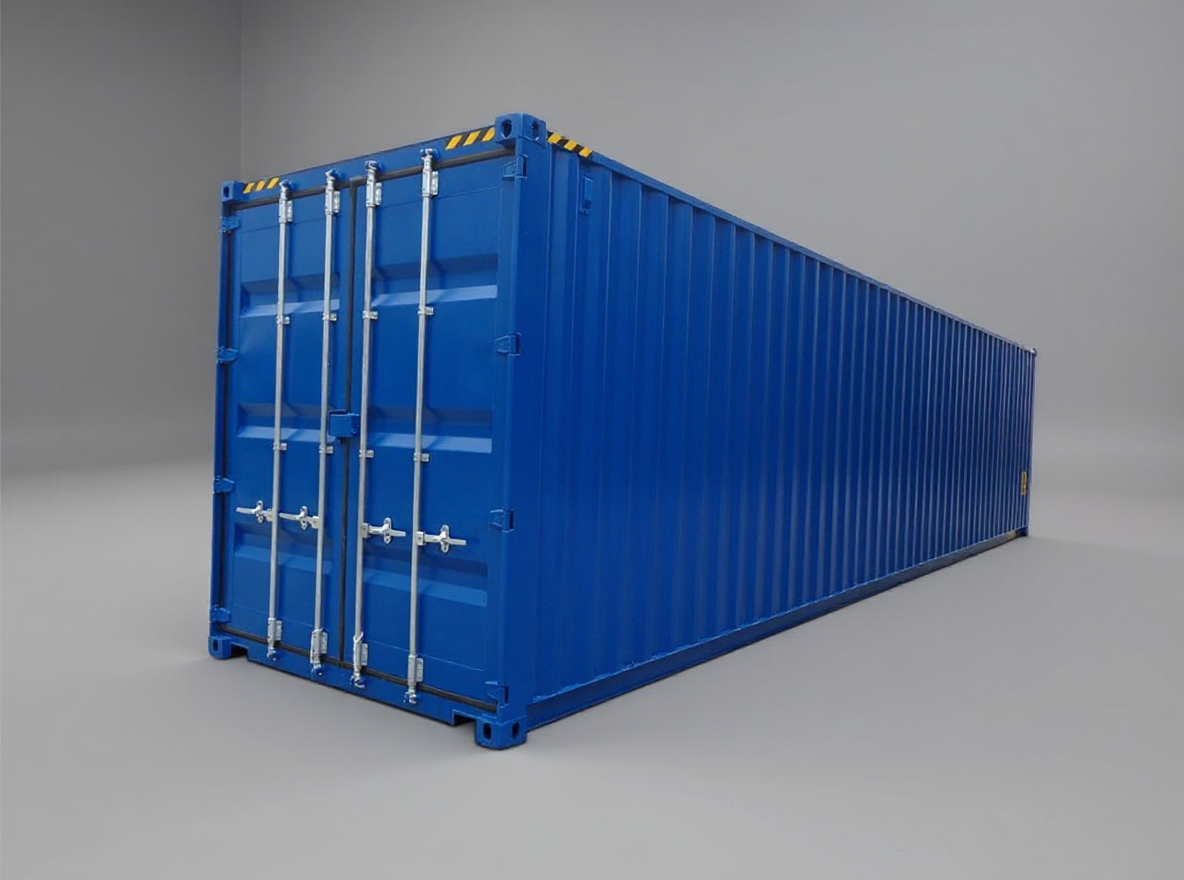

Drawn to the published dimensions. The photographs show the unit as delivered.

Technical specifications

19 figures in 9 groups

Every figure is from the Manufacturer data sheet; the designation rows follow ISO 668:2020.

Designation 40 ft High Cube Double Door Container
ISO 668 designation1AAAISO 668:2020

External dimensions 40 ft High Cube Double Door Container
External length12 192 mm
External width2 438 mm
External height2 896 mm

Internal dimensions 40 ft High Cube Double Door Container
Internal length11 978 mm
Internal width2 350 mm
Internal height2 698 mm

Openings 40 ft High Cube Double Door Container
Door opening width2 340 mm
Door opening height2 585 mm

Weights 40 ft High Cube Double Door Container
Tare weight4 000 kg
Max payload26 480 kg
Max gross mass30 480 kg

Capacity 40 ft High Cube Double Door Container
Internal volume75.9 m³
Internal volume in cubic feet2680.4 ft3

Construction 40 ft High Cube Double Door Container
Construction materialCorten steel
Floor constructionHardwood

Configuration 40 ft High Cube Double Door Container
Door configurationDoors at both short sides

Fittings and finish 40 ft High Cube Double Door Container
Standard fittingsDouble doors front and rear, locking rods, high-placed handles, lockbox
Paint finishRAL 5010, RAL 7042, RAL 9010

Figures not published by the manufacturer: Side door opening width, Side door opening height

Certification

Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.

  • ISO 9001QualityAudited quality management. Every container follows one documented, repeatable process.
  • ISO 14001EnvironmentCertified environmental management across the whole production line.
  • EN ISO 3834-2WeldingTop-level certification for fusion-welding quality in steel fabrication.
  • EN 1090-1EXC2Structural steel executed to EXC2, the class required for load-bearing welded structures.
  • CSC plateTransportContainer Safety Convention plate. Approved for international stacking and transport.

Compare within the family

Multi-door: 13 units on the figures that matter for this one.

All 13 units in Multi-door
Compare within the family Multi-door
SKUExternal lengthExternal widthExternal heightMax payloadInternal volumeTare weight
20 ft Double Door ContainerOne wayTC-MD-20-DD6 058 mm2 438 mm2 591 mm28 180 kg33.1 m³2 300 kg
20 ft Double Door plus Double Side Door ContainerOne wayTC-MD-20-DD-DSD6 058 mm2 438 mm2 591 mm26 580 kg29.9 m³3 900 kg
20 ft Double Door plus Side Door ContainerOne wayTC-MD-20-DD-SD6 058 mm2 438 mm2 591 mm27 150 kg30.8 m³3 330 kg
20 ft Double Side Door ContainerOne wayTC-MD-20-DSD6 058 mm2 438 mm2 591 mm26 800 kg30.2 m³3 680 kg
20 ft Side Door ContainerOne wayTC-MD-20-SD6 058 mm2 438 mm2 591 mm27 400 kg33.1 m³3 080 kg
20 ft High Cube Double Door ContainerOne wayTC-MD-20-HC-DD6 058 mm2 438 mm2 896 mm28 030 kg37.1 m³2 450 kg
20 ft High Cube Double Door plus Double Side Door ContainerOne wayTC-MD-20-HC-DD-DSD6 058 mm2 438 mm2 896 mm26 320 kg33.9 m³4 270 kg
20 ft High Cube Double Door plus Side Door ContainerOne wayTC-MD-20-HC-DD-SD6 058 mm2 438 mm2 896 mm26 930 kg35.2 m³3 550 kg
20 ft High Cube Double Side Door ContainerOne wayTC-MD-20-HC-DSD6 058 mm2 438 mm2 896 mm26 580 kg34.2 m³3 900 kg
20 ft High Cube Side Door ContainerOne wayTC-MD-20-HC-SD6 058 mm2 438 mm2 896 mm27 230 kg35.2 m³3 250 kg
40 ft Double Door ContainerOne wayTC-MD-40-DDSize down12 192 mm2 438 mm2 591 mm26 680 kg67.4 m³3 800 kg
40 ft High Cube Double Door ContainerOne wayTC-MD-40-HC-DDThis unit12 192 mm2 438 mm2 896 mm26 480 kg75.9 m³4 000 kg
40 ft High Cube Side Door ContainerOne wayTC-MD-40-HC-SDSize up12 192 mm2 438 mm2 896 mm26 020 kg68 m³6 480 kg
