Solutions · family
Military Command
Command, control and shelter modules built to defence quality assurance, delivered as connected sets.
- AQAP 2110 quality system
- CARC RAL 6003
- −32 °C to +49 °C
- sets of 16 to 200+ modules
Deployable modules for command posts, briefing rooms, operations rooms and shelter, built under a defence quality assurance system and delivered as connected, levelled, commissioned sets rather than as boxes on a truck. Tanax holds AQAP 2110, is a registered defence supplier with a CAGE code, and holds a national defence trade licence. The engineering is the same as the accommodation line; the assurance, the coating and the documentation are not.
Specification
Quality
- System
- AQAP 2110 alongside ISO 9001, ISO 14001, EN ISO 3834-2
- Structure
- EN 1090-1 EXC2
- Supplier status
- registered defence supplier, CAGE code held, national defence trade licence in force
Module
- External
- 6,058 × 2,438 × 2,800 mm typical, ISO 668 compatible
- Internal clear height
- 2,500 mm
- Connection
- joined along the long side or end to end into a continuous room
Coating
- Defence finish
- CARC, RAL 6003 olive green matt
- Corrosion protection
- ≥ 160 µm anti-corrosive build on camp modules
Environment
- Temperature
- designed −32 °C to +49 °C service, with frame and door heating below +4 °C
- Weather
- 100 % RH at +35 °C, 2.0 g/m³ dust, 180 mm/m² precipitation, gusts to 31 m/s
Services
- Power
- 400/230 V 3-phase 50 Hz, IP-67 connectors per EN 60309
- Heating and cooling
- electric convector plus inverter split unit per cell
- Lighting
- four modes: normal, blackout 625-650 nm, automatic, 3 h emergency
Handling
- Lifting
- ISO 1161 castings plus welded lifting eyes, forklift pockets
- Levelling
- 4-point jack system, siting on 500 × 500 mm pads, ≥ 50 mm above grade
Set logic
- Camp set
- accommodation, corridor, sanitary, laundry, kitchen, cold chain, water, waste, fuel, generation, distribution, storage
Specification
Quality
- System
- AQAP 2110 alongside ISO 9001, ISO 14001, EN ISO 3834-2
- Structure
- EN 1090-1 EXC2
- Supplier status
- registered defence supplier, CAGE code held, national defence trade licence in force
Module
- External
- 6,058 × 2,438 × 2,800 mm typical, ISO 668 compatible
- Internal clear height
- 2,500 mm
- Connection
- joined along the long side or end to end into a continuous room
Coating
- Defence finish
- CARC, RAL 6003 olive green matt
- Corrosion protection
- ≥ 160 µm anti-corrosive build on camp modules
Environment
- Temperature
- designed −32 °C to +49 °C service, with frame and door heating below +4 °C
- Weather
- 100 % RH at +35 °C, 2.0 g/m³ dust, 180 mm/m² precipitation, gusts to 31 m/s
Services
- Power
- 400/230 V 3-phase 50 Hz, IP-67 connectors per EN 60309
- Heating and cooling
- electric convector plus inverter split unit per cell
- Lighting
- four modes: normal, blackout 625-650 nm, automatic, 3 h emergency
Handling
- Lifting
- ISO 1161 castings plus welded lifting eyes, forklift pockets
- Levelling
- 4-point jack system, siting on 500 × 500 mm pads, ≥ 50 mm above grade
Set logic
- Camp set
- accommodation, corridor, sanitary, laundry, kitchen, cold chain, water, waste, fuel, generation, distribution, storage
How it is built
The decisions behind the numbers
On EMI and TEMPEST: Tanax does not hold an EMI or TEMPEST test capability and does not integrate the electronics. Tanax builds the shelter, the shielding provisions and the mounting, and works with an electronics partner for the shielded fit-out and its verification. That is the position, stated plainly rather than implied as an in-house capability.
Blackout lighting is a four-mode system, not a switch.
Normal white at the task level, blackout in the 625-650 nm band, an automatic mode, and three hours of battery emergency. Every module in a camp set carries it, and it is one of the details that separates a defence module from a site cabin.
Coating is CARC, and the thickness is measured.
RAL 6003 olive green matt over a documented build, with anti-corrosive thickness of at least 160 µm on camp modules and verification per ISO 2808. The measured report goes with the unit.
Sets, not units.
A camp arrives as a set: accommodation cells, corridor modules that carry the fire-protected access route, men's and women's sanitary, laundry, a two-container kitchen, a refrigerated module with its own generator, potable water and wastewater tank containers, a fuel tank container, generator containers and a power distribution container. Tanax delivers the set, connects it, levels it, commissions it and hands over SK and EN manuals. On one framework that meant 40-container sets going up in about ten working days.
Documentation is half the contract.
Design package, integrated logistic support package and analysis, verification and validation plan, train-the-trainer package, and a spare-parts and obsolescence commitment measured in decades rather than months. Design availability targets repairability inside eight hours. Tanax builds to that documentation regime.
Configurations
Variants and where to find them in the catalogue
- No photograph yet
- No photograph yet
- No photograph yet
Design drawingDesign drawing Camp set
- 16 to 200+ modules delivered, connected and commissioned
Build detail
What the detail photography shows

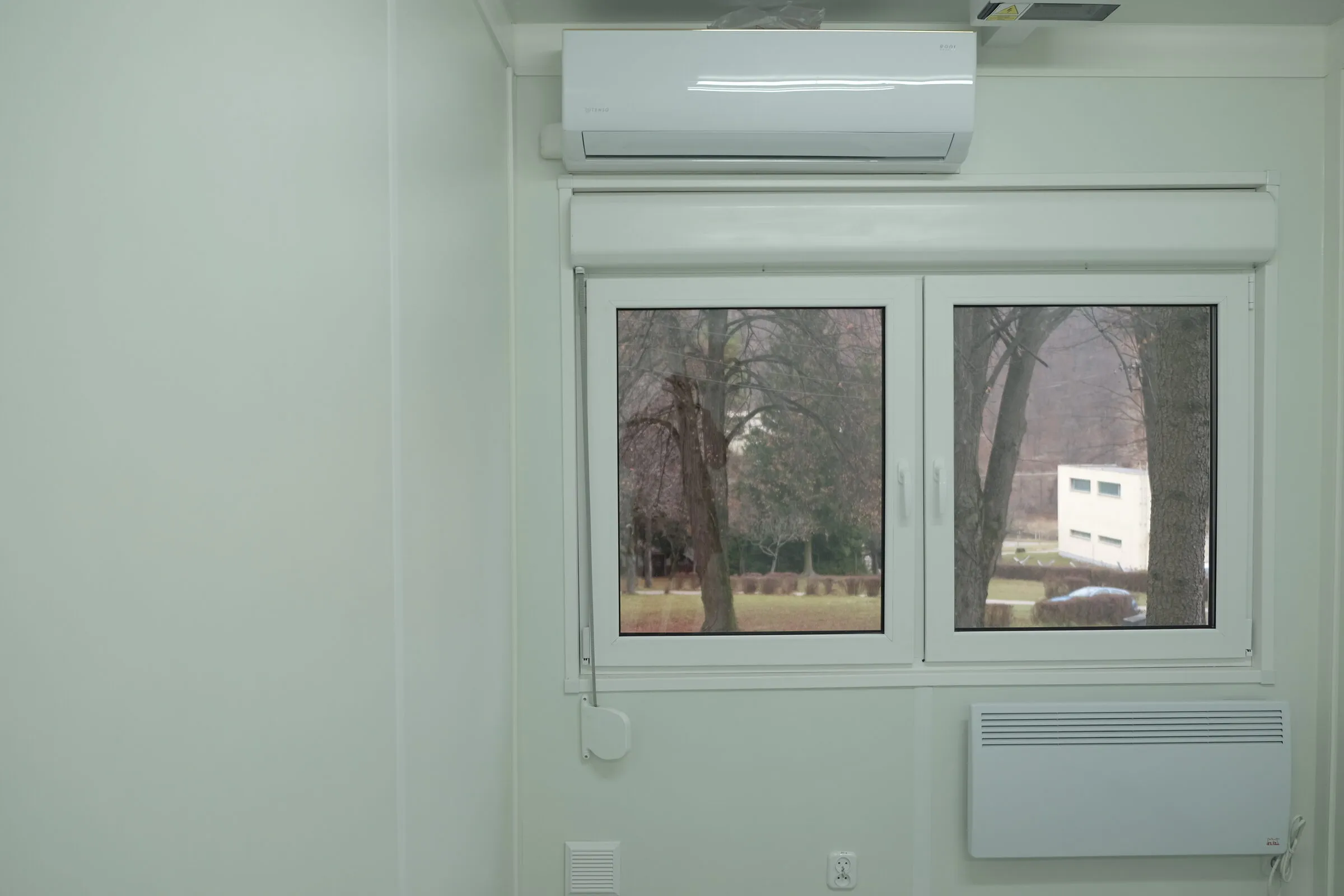

Wall climate unit and window in a module

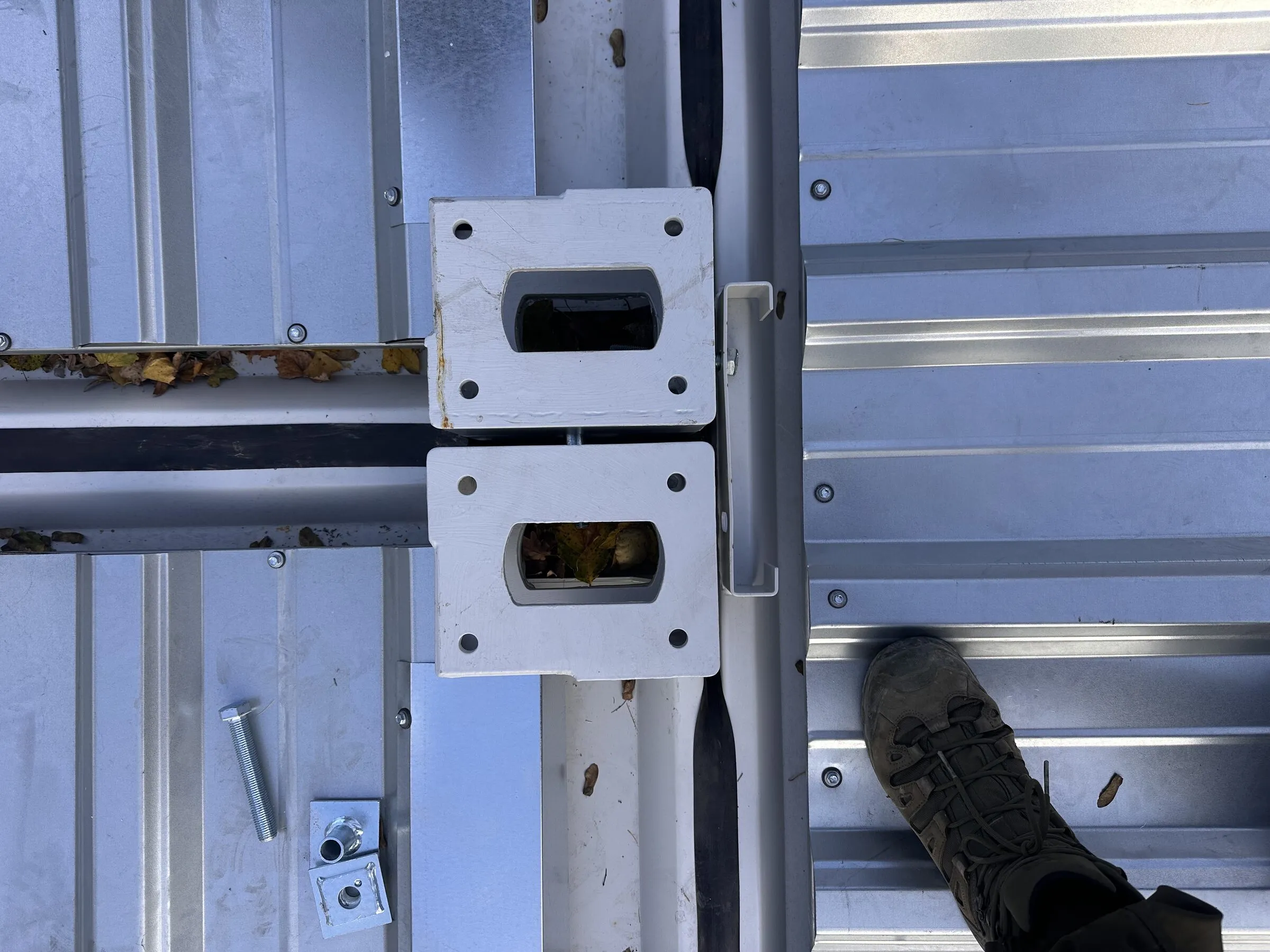

Twist-lock fitting in a corner casting

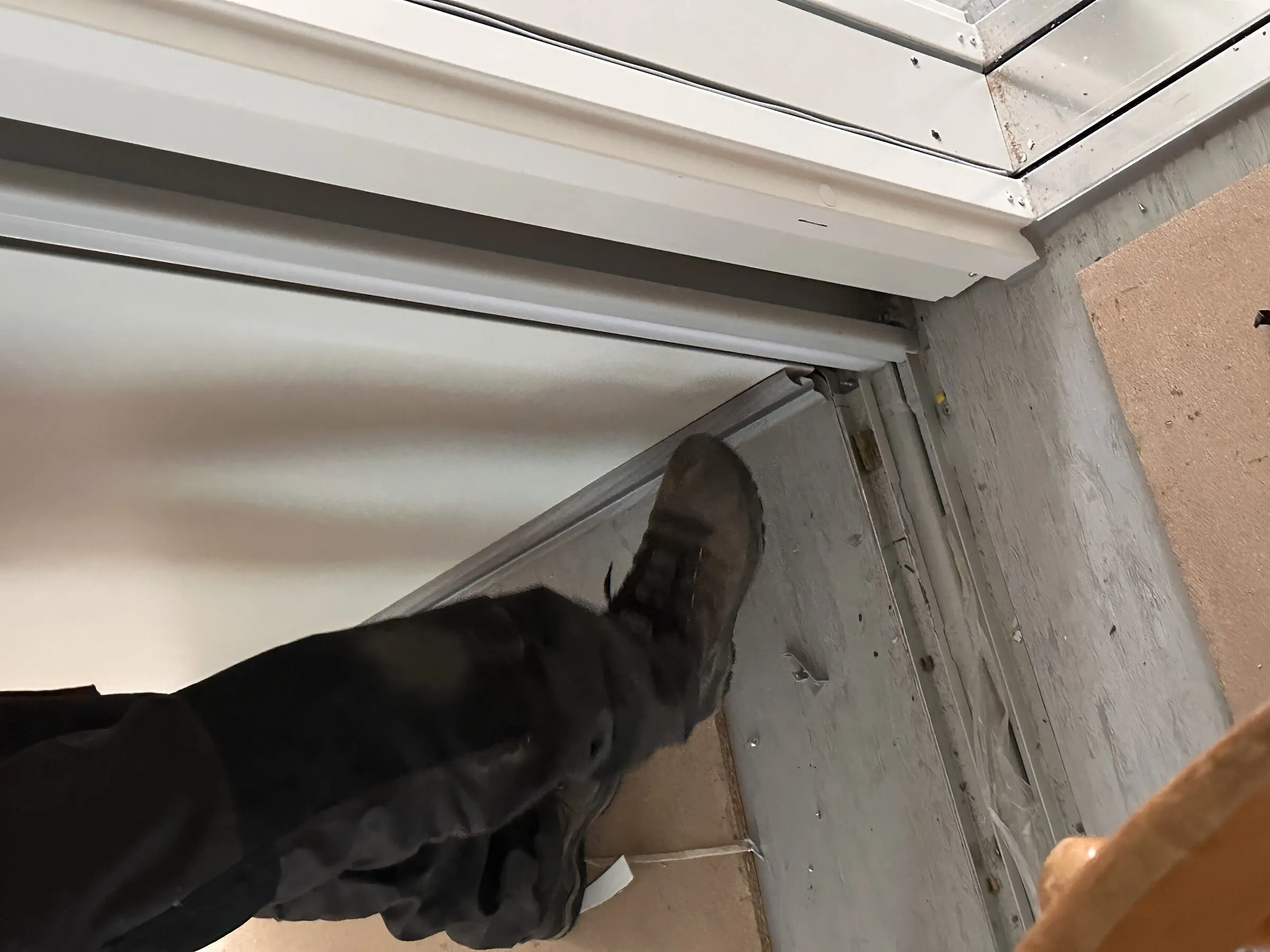

Door threshold installation
Internal cable trunking

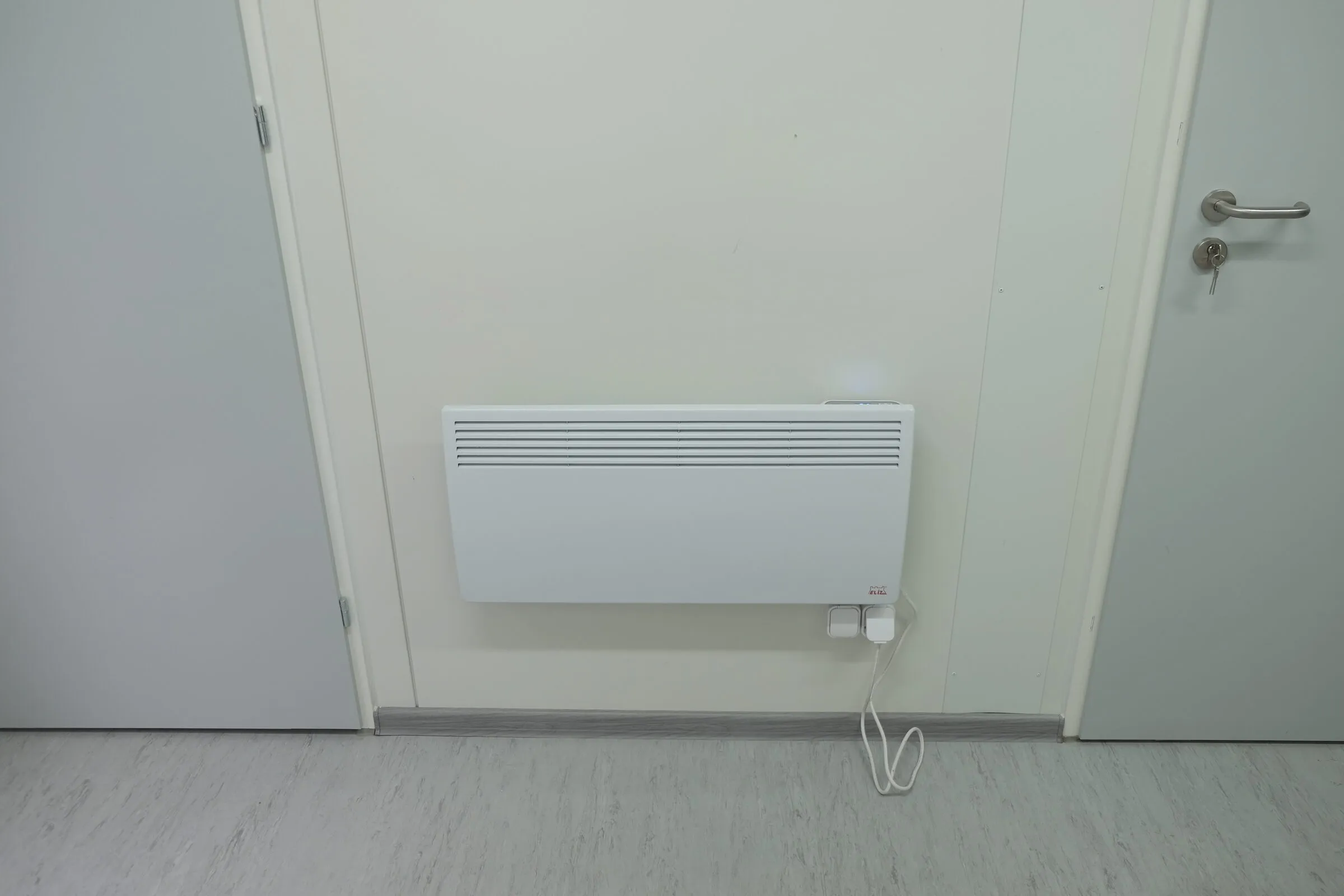

Electric wall convector beside the entry door

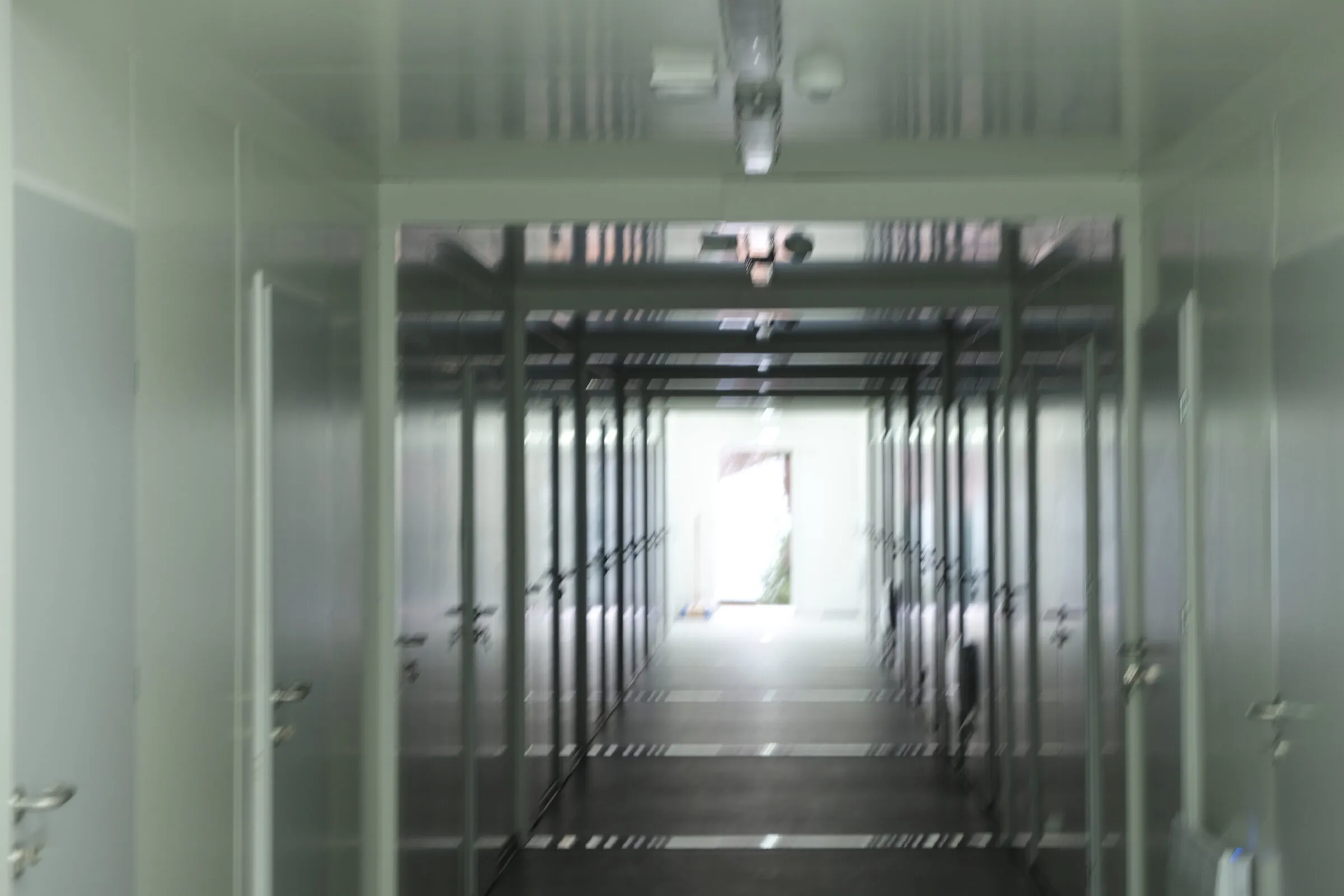

Corridor towards the end door, under construction

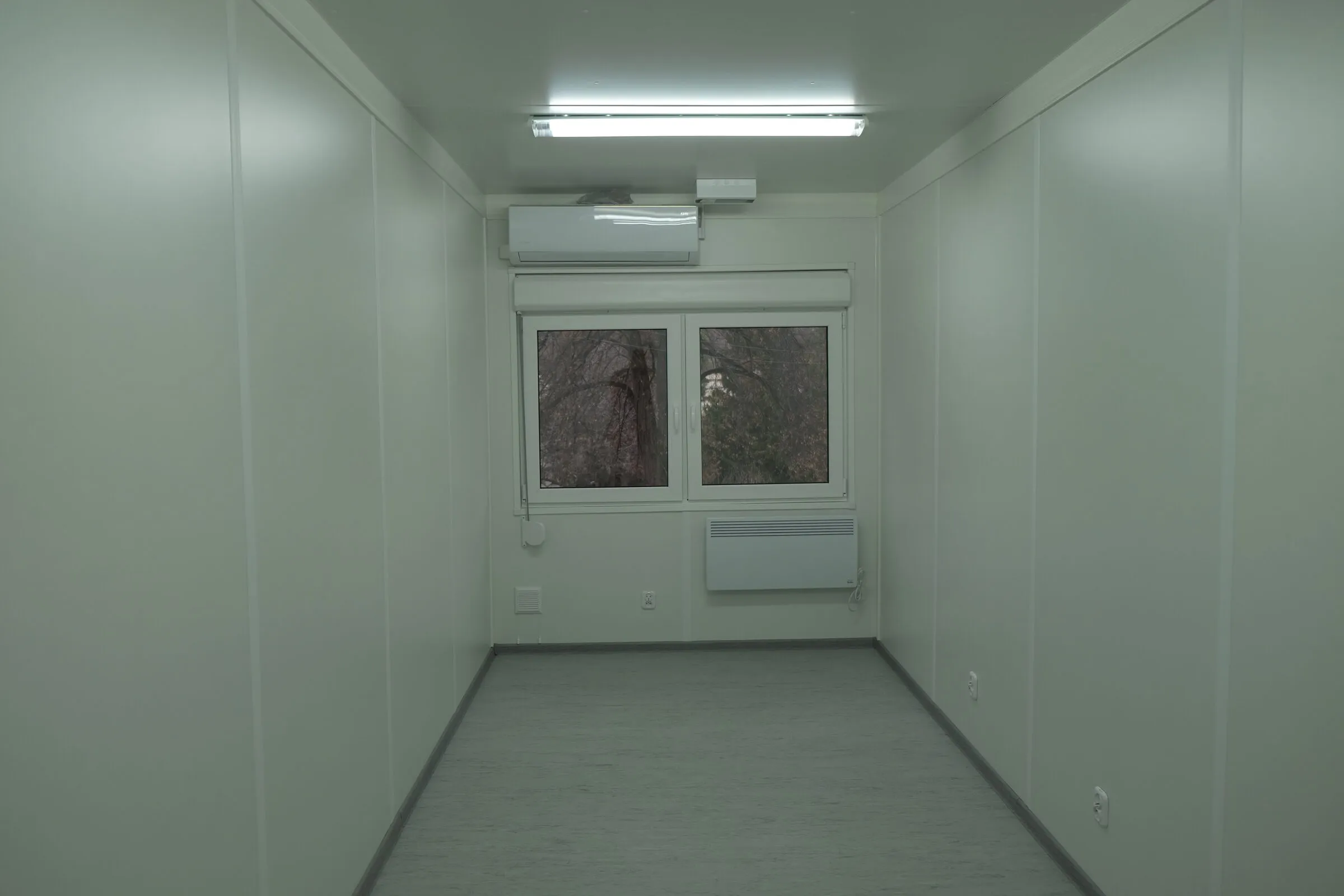

Cell interior with window

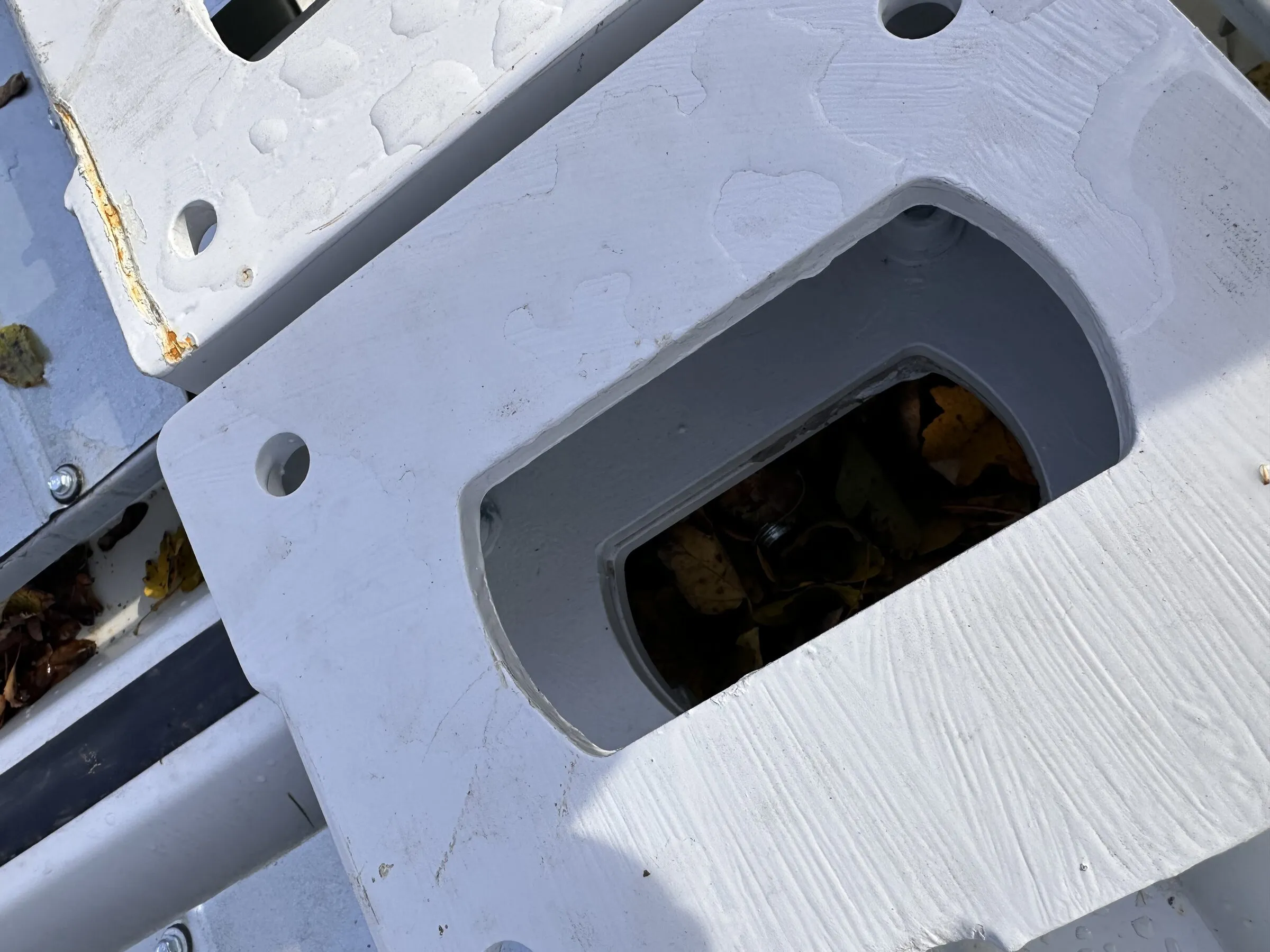

Frame mounting plate

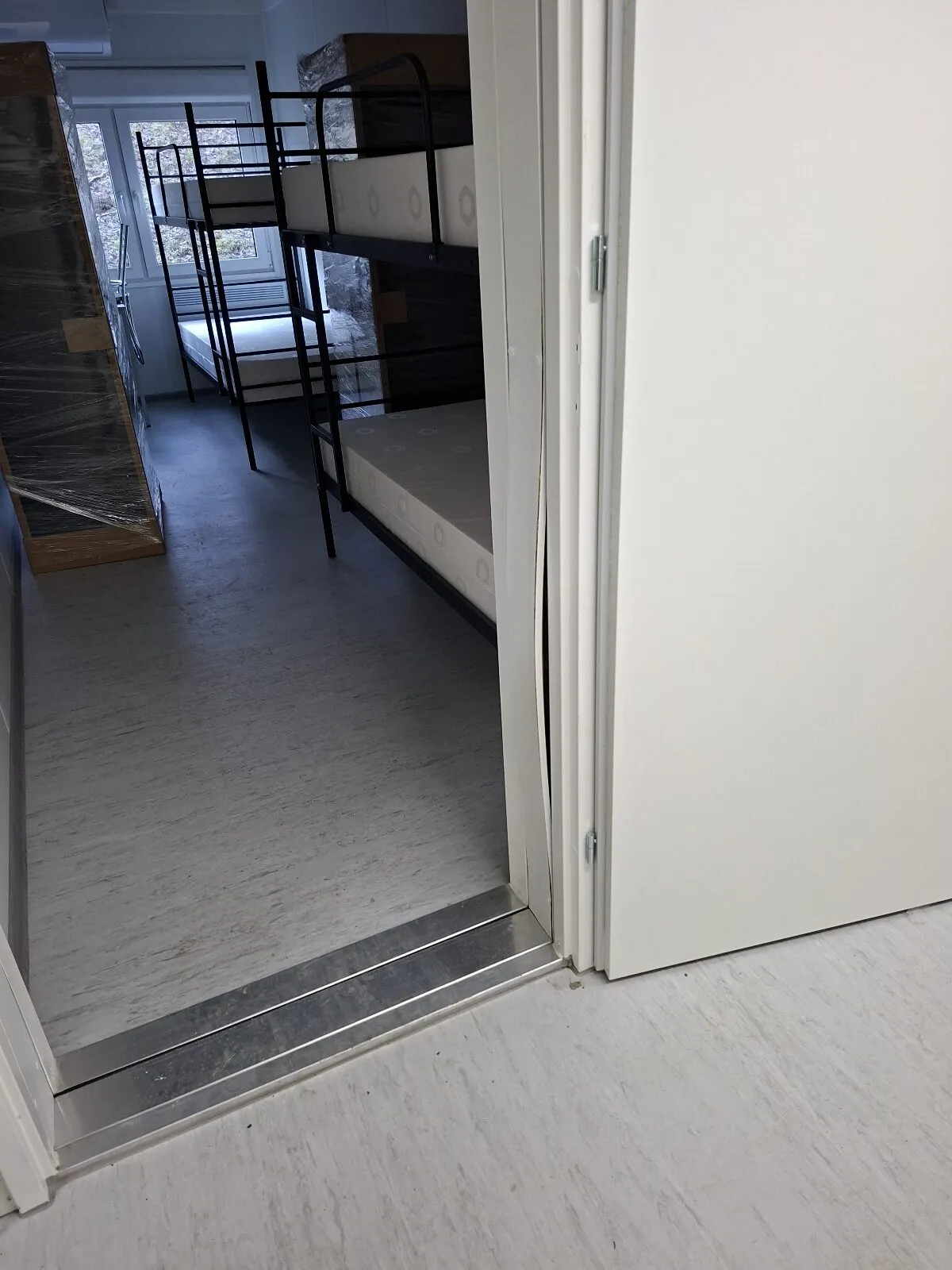

Aluminium door threshold

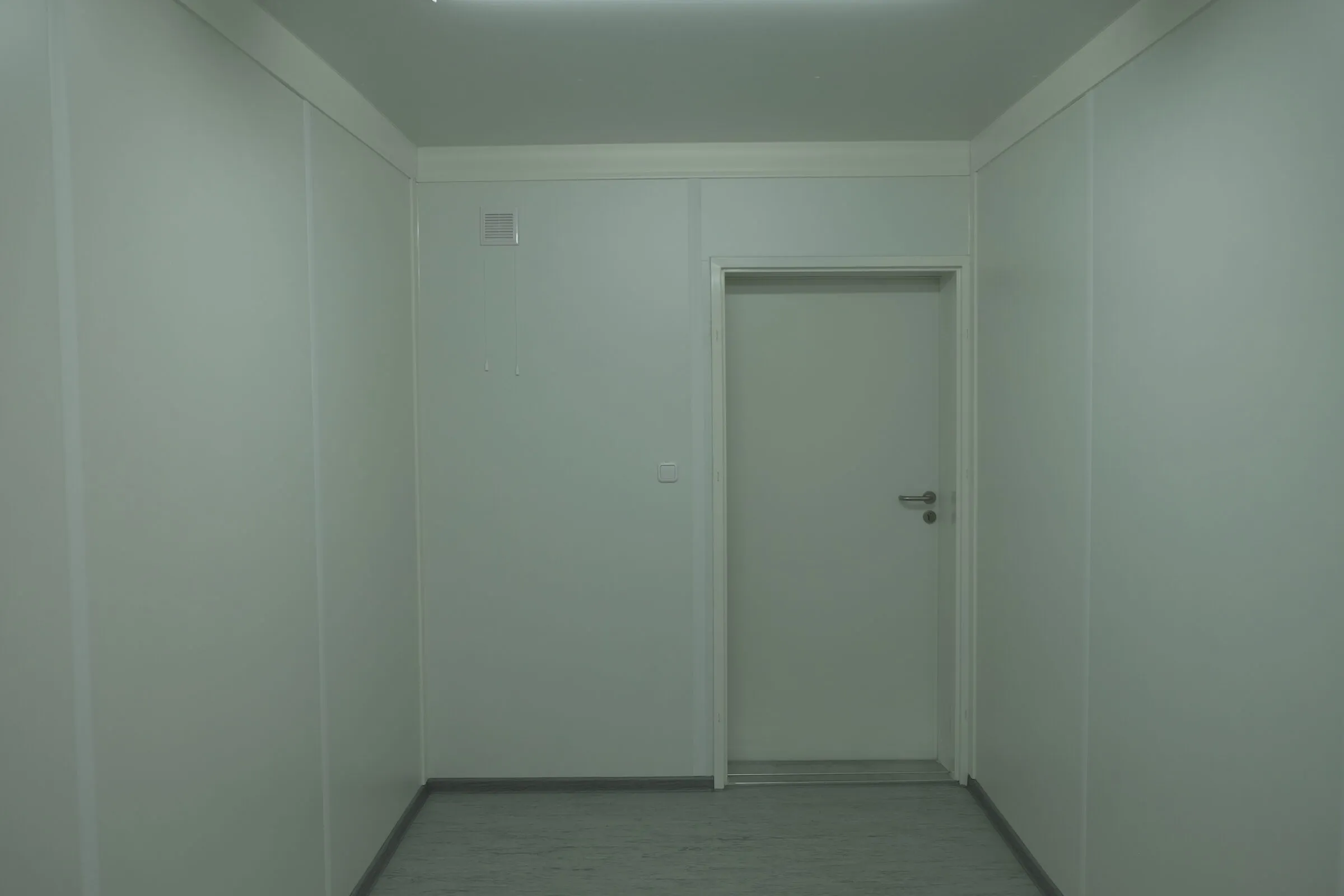

Cell with internal door

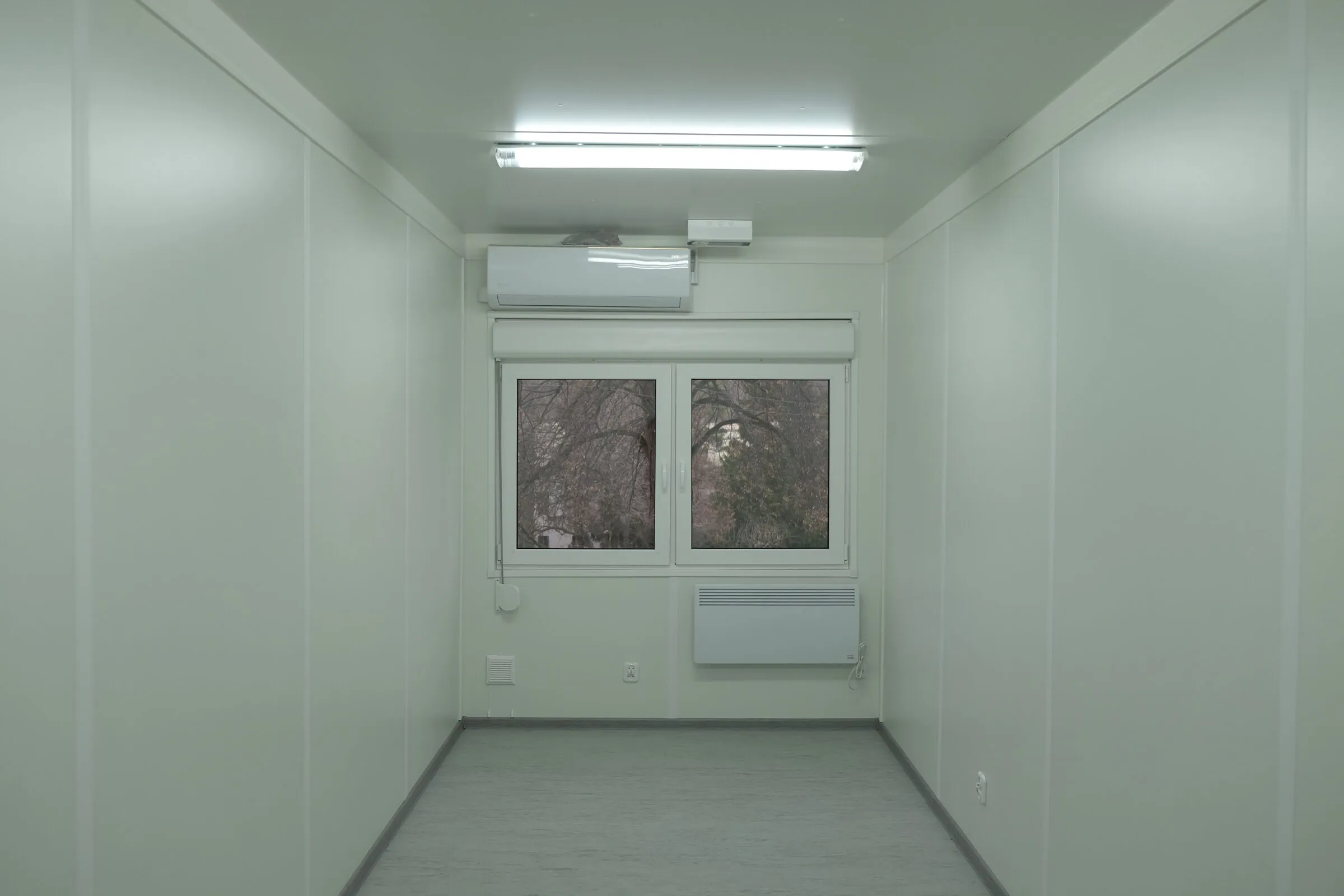

Cell lighting and window
Visualisations
Renders and drawings, labelled as such
VisualisationVisualisationField medical modules
Standards
What we build to and what we issue
- AQAP 2110
- EN 1090-1 EXC2 / EN ISO 3834-2
- ISO 668:2020 Amd 1 / ISO 1161 / ISO 1496
- EN 60309
- EN 12464-1
- EN 50131-1
- ISO 2808
| Standard | What it covers |
|---|---|
| AQAP 2110 | Quality assurance for design, development and production |
| EN 1090-1 EXC2 / EN ISO 3834-2 | Steel execution and welding |
| ISO 668:2020 Amd 1 / ISO 1161 / ISO 1496 | Dimensions, castings, structural test |
| EN 60309 | Industrial connectors |
| EN 12464-1 | Lighting levels |
| EN 50131-1 | Intrusion alarm grading where specified |
| ISO 2808 | Coating thickness verification |
Documentation issued
Design package, coating and thickness report, electrical inspection, functional test protocol, integrated logistic support package, verification and validation plan, train-the-trainer material, SK and EN operating and installation manuals, spare-parts list with 20-year availability statement.
Proof
Deployments with a number in them
- 01
200+ modules delivered
Under a multi-year framework in the €16 M class for a Central European ministry of defence, running to 2028: accommodation, corridor and sanitary modules, plus storage call-offs.
Read the case study - 02
80 modules in about ten working days
Assembled into two connected 40-unit sets, with crane, hiab, riggers, optical levelling and the full acceptance sequence.
Read the case study - 03
160 modules in one quarter
Delivered and accepted across two garrison sites, at rates rising from 15 to 20 trucks a day.
Read the case study
Scope
What the price includes, and what it does not
Included
- Modules
- Connection into sets
- Levelling and siting on prepared pads
- Commissioning
- Coating to CARC specification
- Documentation package
- Training
- Spare-parts list
Not included
- Site preparation, hard standing, foundations
- External utility supply
- Electronics, communications and cryptographic equipment
- EMI/TEMPEST verification, which is a partner scope
- Armed escort or site security
If we have not built exactly this before, we will say so and tell you what we have built that is closest. Two prototype programmes in this factory were delivered below cost because nobody said that early enough. We do not do that any more, to you or to us.
Lead times
By variant
| Variant | Lead time |
|---|---|
| Single command or storage module | 8-12 weeks |
| 16-module set | 14-18 weeks |
| 40-module set | 18-24 weeks |
| Framework call-off against an established design | 60 days is achievable and has been contracted |
Engagement
Four ways to buy
Buy a catalogue unit
Pick from 94 published SKUs with full specifications, get a price, get a delivery date.
Modify a catalogue unit
Start from a standard shell and change what needs changing. Fastest route to a non-standard requirement.
Build to your specification
You bring the specification or the drawings, we review them, we build. Prototype and serial priced separately.
Subcontract fabrication
You are the prime, we are the hall. EN 1090-1 EXC2 capacity with AQAP 2110 assurance behind it.
Process
Specification to delivery in five steps
- 01
Send the specification.
A drawing, a tender annex, or three sentences. Whichever you have.
- 02
Review, in writing.
We tell you what is missing or contradictory before anyone quotes. 3-5 working days.
- 03
Quotation.
Bottom-up: material at purchase cost, co-operation, direct hours at a fully absorbed rate. 2-3 weeks for a complex build.
- 04
Design freeze and build.
Changes after freeze are variations, priced and agreed.
- 05
Test, document, deliver.
Factory acceptance where specified, full document pack, delivery and installation where quoted.
FAQ
Questions procurement asks
Do you hold defence quality accreditation?
Yes. AQAP 2110 alongside ISO 9001, ISO 14001 and EN ISO 3834-2, with EN 1090-1 EXC2 for the steel. We are a registered defence supplier with a CAGE code and hold a national defence trade licence.
Can you deliver a whole camp?
Yes. Accommodation, sanitary, laundry, kitchen, cold chain, water, waste, fuel, power generation and power distribution, plus storage, delivered and connected as a system.
Do you do EMI or TEMPEST shielding?
We build the shelter and the shielding provisions. Verified shielded fit-out is delivered with an electronics partner. We will not claim a capability we do not test in-house.
What is CARC RAL 6003?
The matt olive-green chemical-agent-resistant coating standard used on defence equipment. We apply it and measure it per ISO 2808.
How fast can you install?
Two connected 40-module sets in about ten working days, given a crane, a hiab, riggers and a prepared surface.
