Tank

Tank

Request offer Back to catalogue

Units in this family

Tank
SKU	Designation	External length	External height	Max payload	Max gross mass
10 ft Sewage Tank, 2300 lTC-TNK-10-2300	-	2 991	420	-	-
10 ft Sewage Tank, 4300 lTC-TNK-10-4300	-	2 991	700	-	-
20 ft Sewage Tank, 4600 lTC-TNK-20-4600	-	6 058	420	-	-
20 ft Sewage Tank, 8600 lTC-TNK-20-8600	-	6 058	700	-	-
20 ft Sewage Tank, 6 m3, HeatedTC-TNK-20-6000H	-	6 058	710	-	-
Septic container 20 ftSanitary & Septic	Format: ISO 20 ft, half height	Footprint: 6,058 × 2,438 mm	-	-	-
Fecal cistern 12 m³, hook-liftSanitary & Septic	Tank: 12 m³, two chambers	Sludge chamber: 9,000 l	-	-	-
Flat septic tank for sanitary containersSanitary & Septic	Height: 700 mm	Volumes: 6 or 10 m³	-	-	-

8 results

8 results

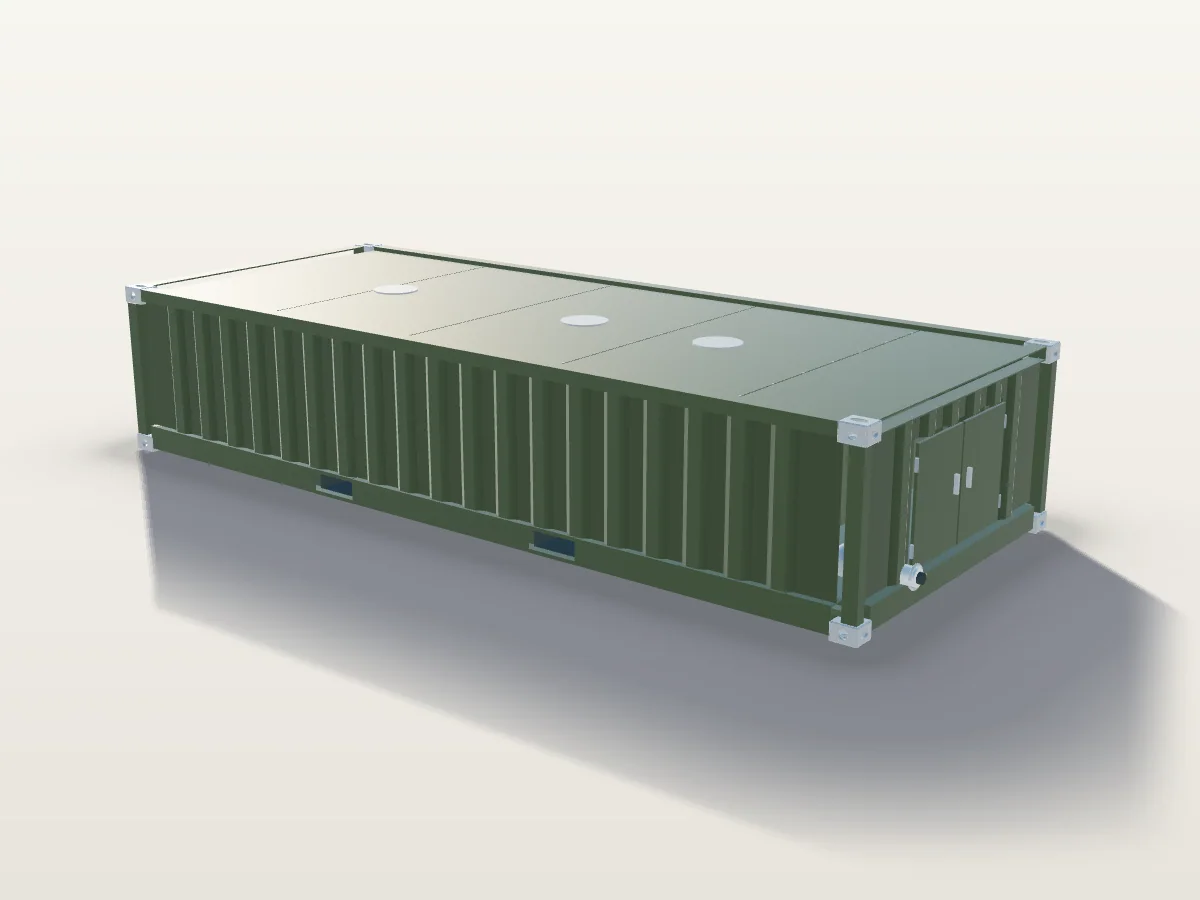

Septic container 20 ft: a half-height ISO container with a built-in wastewater tank, drawn to scale beside a 1.80 m person

Septic container 20 ft

Collection tank in a stackable half-height ISO frame.

6 058 × 2 438 × 1 219 mm

Length: 6 058 mm
Width: 2 438 mm
Height: 1 219 mm

Format: ISO 20 ft, half height
Footprint: 6,058 × 2,438 mm
Module height: 1,219 mm

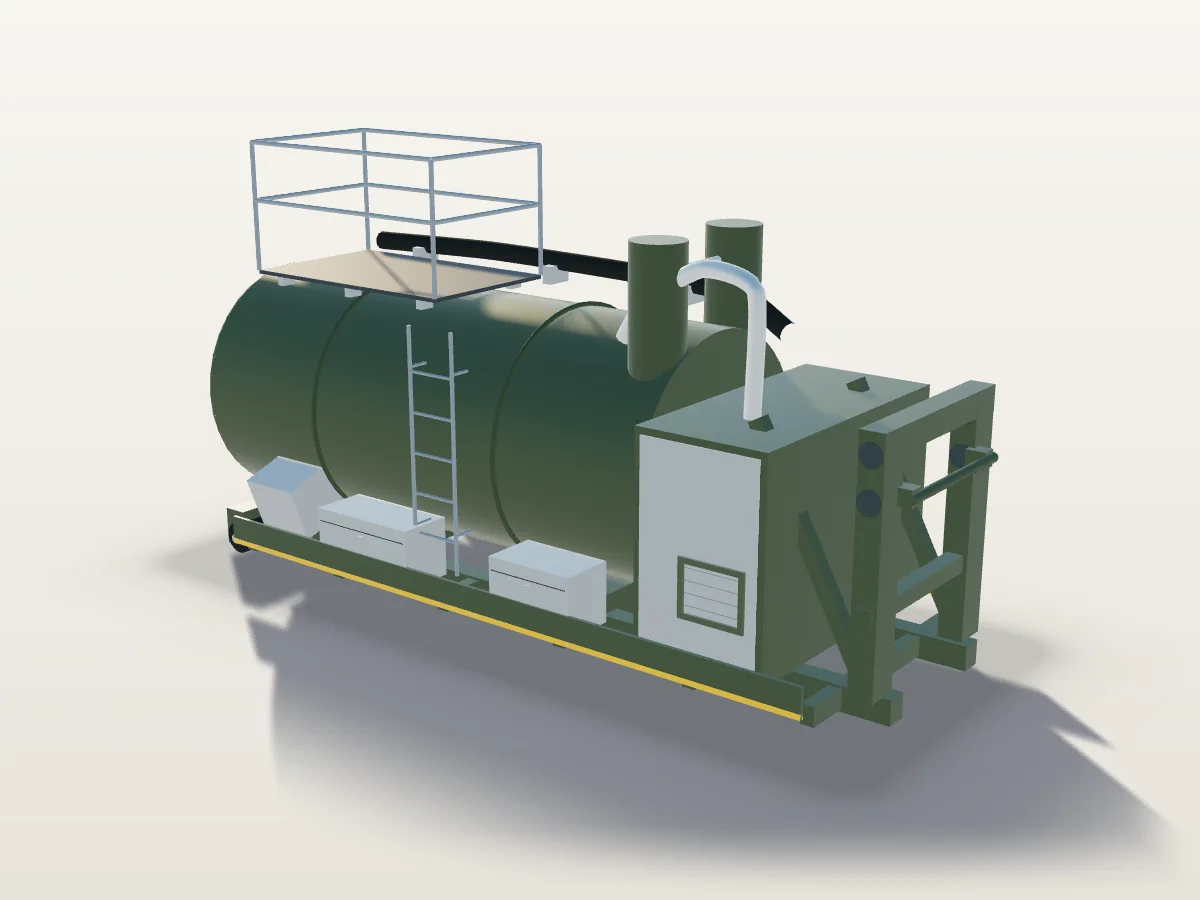

Fecal cistern 12 m³ on a hook-lift frame: the hook-lift vacuum tanker drawn to scale beside a 1.80 m person

Fecal cistern 12 m³, hook-lift

Hook-lift vacuum cistern with its own drive. Empties the tanks, flushes the sewers.

6 058 mm × 2 438 mm ×

Length: 6 058 mm
Width: 2 438 mm
Height

Tank: 12 m³, two chambers
Sludge chamber: 9,000 l
Water chamber: 3,000 l

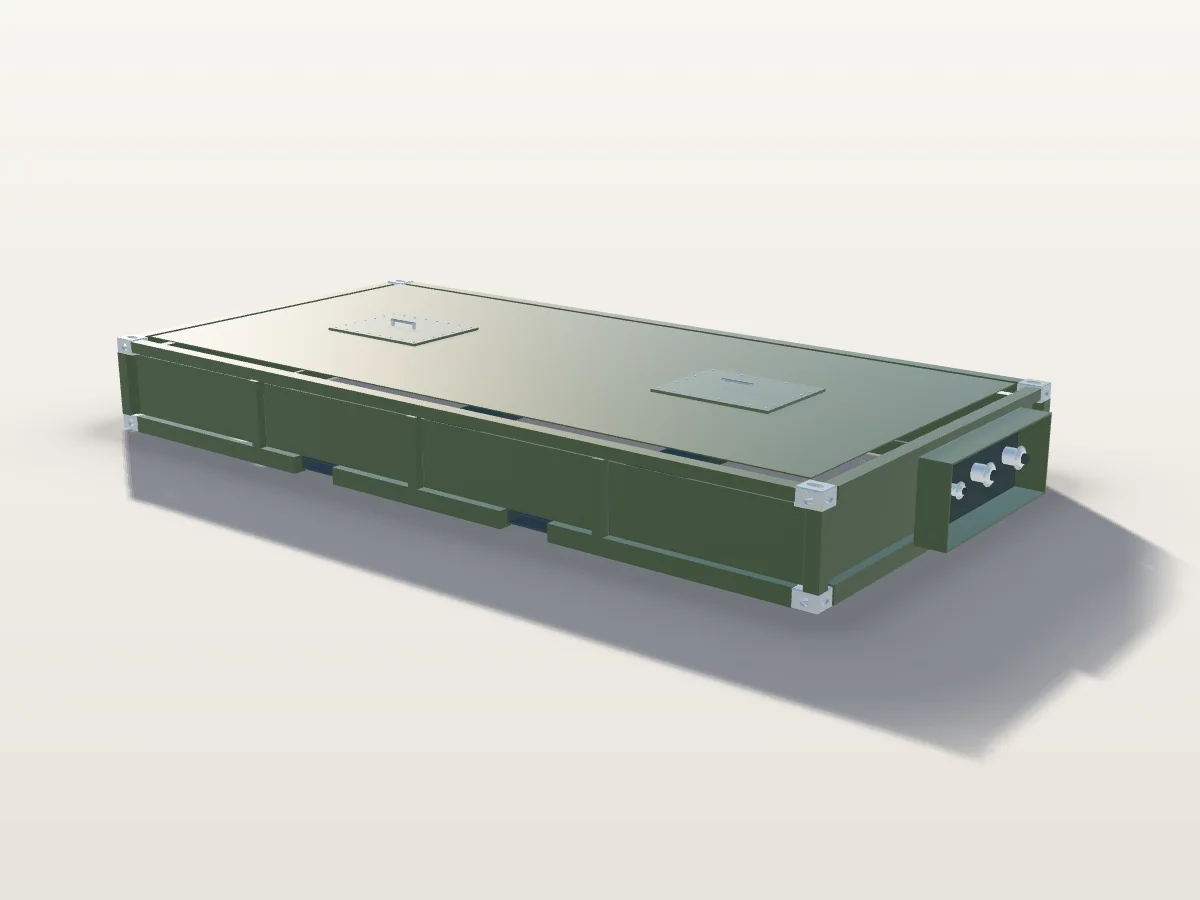

Flat septic tank for sanitary containers, 700 mm high, drawn to scale beside a 1.80 m person

Flat septic tank for sanitary containers

Sits under a toilet or shower container. 6 or 10 m³, 700 mm high.

6 058 × 2 990 × 700 mm

Length: 6 058 mm
Width: 2 990 mm
Height: 700 mm

Height: 700 mm
Volumes: 6 or 10 m³
Width: 2,438 or 2,990 mm

10 ft Sewage Tank, 2300 l

Shallow 10 ft sewage tank for short site programmes.

2 991 × 2 438 × 420 mm

Length: 2 991 mm
Width: 2 438 mm
Height: 420 mm

10 ft Sewage Tank, 4300 l

Deeper 10 ft sewage tank, nearly double the capacity on the same footprint.

2 991 × 2 438 × 700 mm

Length: 2 991 mm
Width: 2 438 mm
Height: 700 mm

20 ft Sewage Tank, 4600 l

Shallow 20 ft sewage tank, low profile for restricted headroom.

6 058 × 2 438 × 420 mm

Length: 6 058 mm
Width: 2 438 mm
Height: 420 mm

20 ft Sewage Tank, 8600 l

Largest tank in the range at 8600 litres on a 20 ft footprint.

6 058 × 2 438 × 700 mm

Length: 6 058 mm
Width: 2 438 mm
Height: 700 mm

20 ft Sewage Tank, 6 m3, Heated

Low profile 20 ft sewage tank with a heating cable for winter sites.

6 058 × 2 438 × 710 mm

Length: 6 058 mm
Width: 2 438 mm
Height: 710 mm
