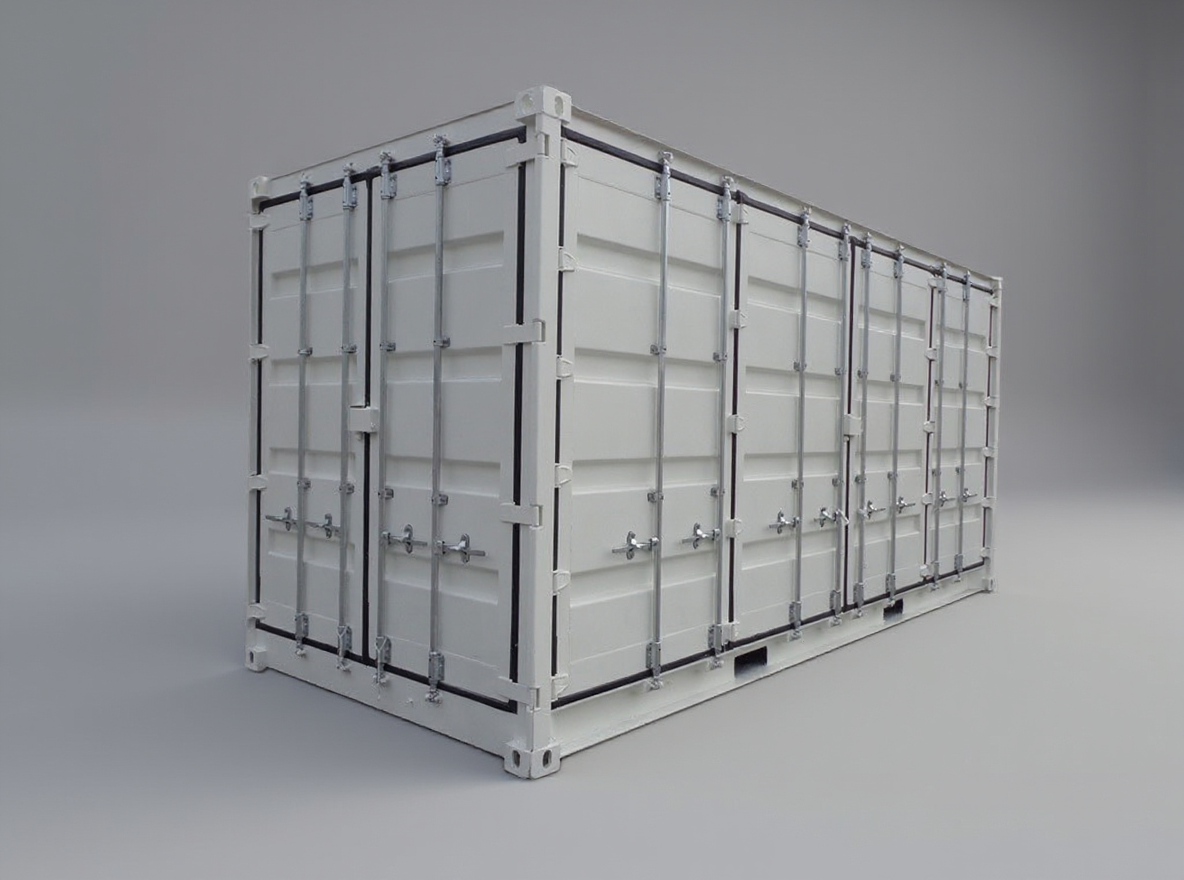

20 ft High Cube Double Door plus Side Door Container
20 ft high cube with doors at both ends and one side door.
Last updated:
Multi-door
SKU: TC-MD-20-HC-DD-SD
On request
Pricing on request. Contact us for a tailored offer.
CSC certified
EU delivery
B2B invoice
Certification
- ISO 9001
- ISO 14001
- ISO 3834-2
- EN 1090-1
- CSC plate
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
Technical specifications
| Designation | TC-MD-20-HC-DD-SD | Manufacturer data sheet |
|---|---|---|
| Designation | ||
| ISO 668 designation | 1CCC | ISO 668:2020 |
| External dimensions | ||
| External length | 6 058 mm | Manufacturer data sheet |
| External width | 2 438 mm | Manufacturer data sheet |
| External height | 2 896 mm | Manufacturer data sheet |
| Internal dimensions | ||
| Internal length | 5 898 mm | Manufacturer data sheet |
| Internal width | 2 287 mm | Manufacturer data sheet |
| Internal height | 2 607 mm | Manufacturer data sheet |
| Openings | ||
| Door opening width | 2 226 mm | Manufacturer data sheet |
| Door opening height | 2 494 mm | Manufacturer data sheet |
| Side door opening width | 5 846 mm | Manufacturer data sheet |
| Side door opening height | 2 494 mm | Manufacturer data sheet |
| Weights | ||
| Tare weight | 3 550 kg | Manufacturer data sheet |
| Max payload | 26 930 kg | Manufacturer data sheet |
| Max gross mass | 30 480 kg | Manufacturer data sheet |
| Capacity | ||
| Internal volume | 35.2 m³ | Manufacturer data sheet |
| Internal volume in cubic feet | 1243.1 ft3 | Manufacturer data sheet |
| Construction | ||
| Construction material | Corten steel | Manufacturer data sheet |
| Floor construction | Hardwood | Manufacturer data sheet |
| Configuration | ||
| Door configuration | Both short sides plus one long side | Manufacturer data sheet |
| Fittings and finish | ||
| Standard fittings | Lockboxes, forklift pockets | Manufacturer data sheet |
| Paint finish | RAL 9010 (pure white) | Manufacturer data sheet |
