Open top and flat rackSKU: TC-HT-40-HC

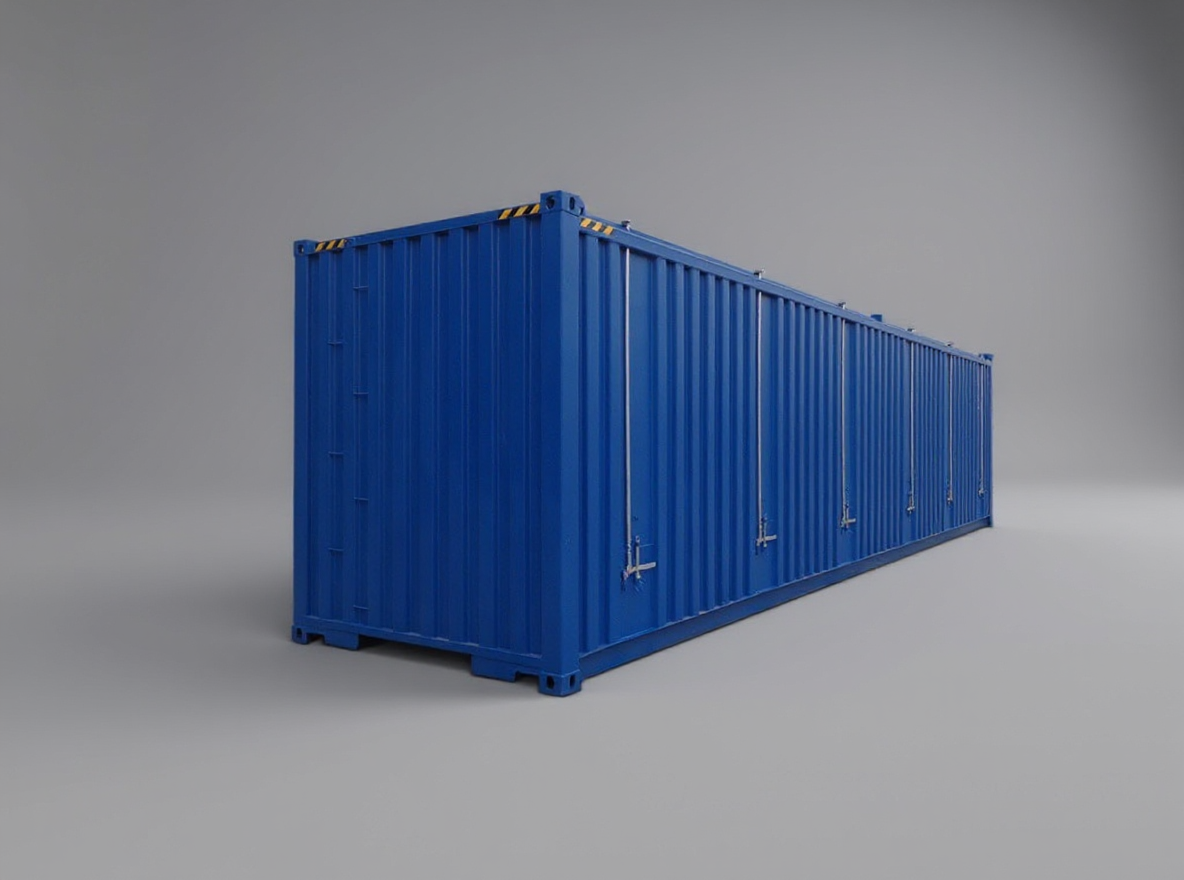

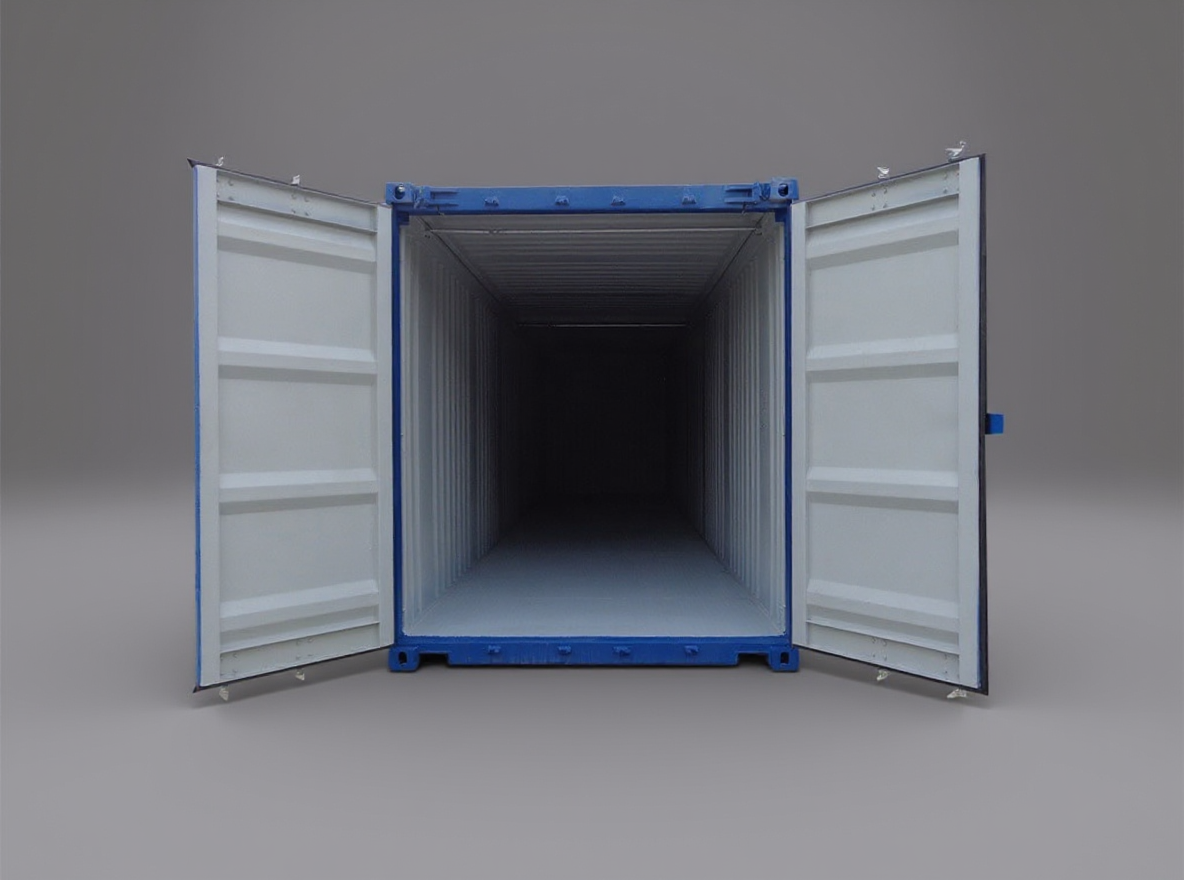

40 ft High Cube Hard Top Container One way

40 ft high cube with a removable steel roof for crane loading.

Photography

4 photographs

Configure

Configure this unit

Your selection travels with the enquiry, so the offer starts from what you chose.

Colour
ColourAs published

Published finishes, as delivered by the factory.

Common finishes

The five codes the catalogue publishes most often. Shortcuts into the RAL picker, nothing more: a finish outside this unit's published set is quoted as a custom finish.

Screen colours are approximate. The RAL sample card is binding.

Your configuration

As published, one unit.

Request offer with this configurationTalk to an engineer

Fixed quote in 3 to 5 working days Pricing on request. Contact us for a tailored offer.

  • CSC certified
  • EU delivery
  • B2B invoice
  • EN 1090 EXC2 steel

Before you ask

What buyers ask first

Condition
One way: bought in as a finished marine container, not built in our hall.
Standard fittings
Forklift pockets, lockbox, pivoting header bar on many units, high-placed handles
Lead time
6 to 10 weeks, catalogue purchase.
Offer
Fixed price and lead time, typically within 3 to 5 working days.
Delivery
EXW Bánovce nad Bebravou by default, DAP and DDP on request.

From the catalogue record and the company facts. Binding terms are set in the written offer.

Key figures

40 ft High Cube Hard Top Container

Last updated:

External length
12 192mm
External width
2 438mm
External height
2 896mm
Max payload
25 680kg
Internal volume
75.1m³
Tare weight
4 800kg

To scale

The unit beside a person

Drawn from the unit's own published millimetres, beside a 1.80 m person. Drag to turn it; the colour follows your choice in the configurator.

Shown in RAL 5010

Drawn to the published dimensions. The photographs show the unit as delivered.

Technical specifications

22 figures in 9 groups

Every figure is from the Manufacturer data sheet; the designation rows follow ISO 668:2020.

Designation 40 ft High Cube Hard Top Container
ISO 668 designation1AAAISO 668:2020

External dimensions 40 ft High Cube Hard Top Container
External length12 192 mm
External width2 438 mm
External height2 896 mm

Internal dimensions 40 ft High Cube Hard Top Container
Internal length12 032 mm
Internal width2 332 mm
Internal height2 678 mm

Openings 40 ft High Cube Hard Top Container
Door opening width2 338 mm
Door opening height2 567 mm
Roof opening length11 704 mm
Roof opening width2 210 mm

Weights 40 ft High Cube Hard Top Container
Tare weight4 800 kg
Max payload25 680 kg
Max gross mass30 480 kg

Capacity 40 ft High Cube Hard Top Container
Internal volume75.1 m³
Internal volume in cubic feet2652.1 ft3

Construction 40 ft High Cube Hard Top Container
Construction materialCorten steel
Floor constructionSteel

Configuration 40 ft High Cube Hard Top Container
End wall configurationDouble doors with locking rods
Roof configurationRemovable steel panels secured with bars

Fittings and finish 40 ft High Cube Hard Top Container
Standard fittingsForklift pockets, lockbox, pivoting header bar on many units, high-placed handles
Paint finishRAL 5010 (gentian blue)

Figures not published by the manufacturer: ISO 6346 size and type code

Specification notes

  • Internal volume 75.1 m3 is printed for both the 40 ft high cube open top and hard top despite different internal dimensions.
  • Lashing ring capacity is not published.

Certification

Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.

  • ISO 9001QualityAudited quality management. Every container follows one documented, repeatable process.
  • ISO 14001EnvironmentCertified environmental management across the whole production line.
  • EN ISO 3834-2WeldingTop-level certification for fusion-welding quality in steel fabrication.
  • EN 1090-1EXC2Structural steel executed to EXC2, the class required for load-bearing welded structures.
  • CSC plateTransportContainer Safety Convention plate. Approved for international stacking and transport.

Compare within the family

Open top and flat rack: 7 units on the figures that matter for this one.

All 7 units in Open top and flat rack
Compare within the family Open top and flat rack
SKUExternal lengthExternal widthExternal heightMax payloadInternal volumeTare weight
20 ft Flat Rack ContainerOne wayTC-FR-206 058 mm2 438 mm2 233 mm42 100 kg-2 900 kg
20 ft Hard Top ContainerOne wayTC-HT-206 058 mm2 438 mm2 591 mm27 590 kg32.6 m³2 890 kg
20 ft Open Top ContainerOne wayTC-OT-206 058 mm2 438 mm2 591 mm28 230 kg32.6 m³2 250 kg
40 ft Open Top ContainerOne wayTC-OT-4012 192 mm2 438 mm2 591 mm26 730 kg66.4 m³3 750 kg
40 ft Flat Rack ContainerOne wayTC-FR-40Size down12 192 mm2 438 mm2 896 mm24 120 kg-6 360 kg
40 ft High Cube Hard Top ContainerOne wayTC-HT-40-HCThis unit12 192 mm2 438 mm2 896 mm25 680 kg75.1 m³4 800 kg
40 ft High Cube Open Top ContainerOne wayTC-OT-40-HCSize up12 192 mm2 438 mm2 896 mm25 930 kg75.1 m³4 550 kg
