ISO shipping
40 ft High Cube Container One way
40 ft box at 2896 mm high cube height, doors at one end.
12 192 × 2 438 × 2 896 mm
- Max payload
- 27 000 kg
- Internal volume
- 76 m³
ISO shippingSKU: TC-ISO-45-HC

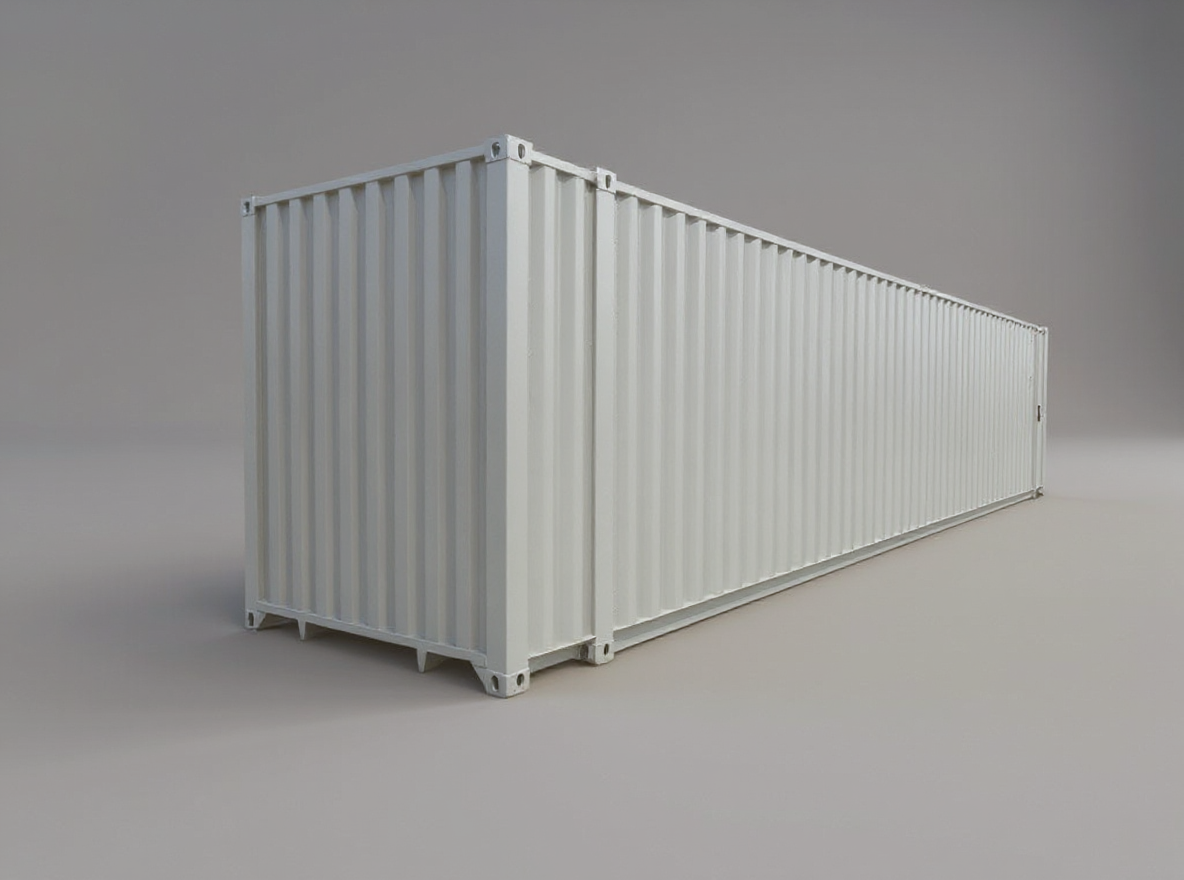

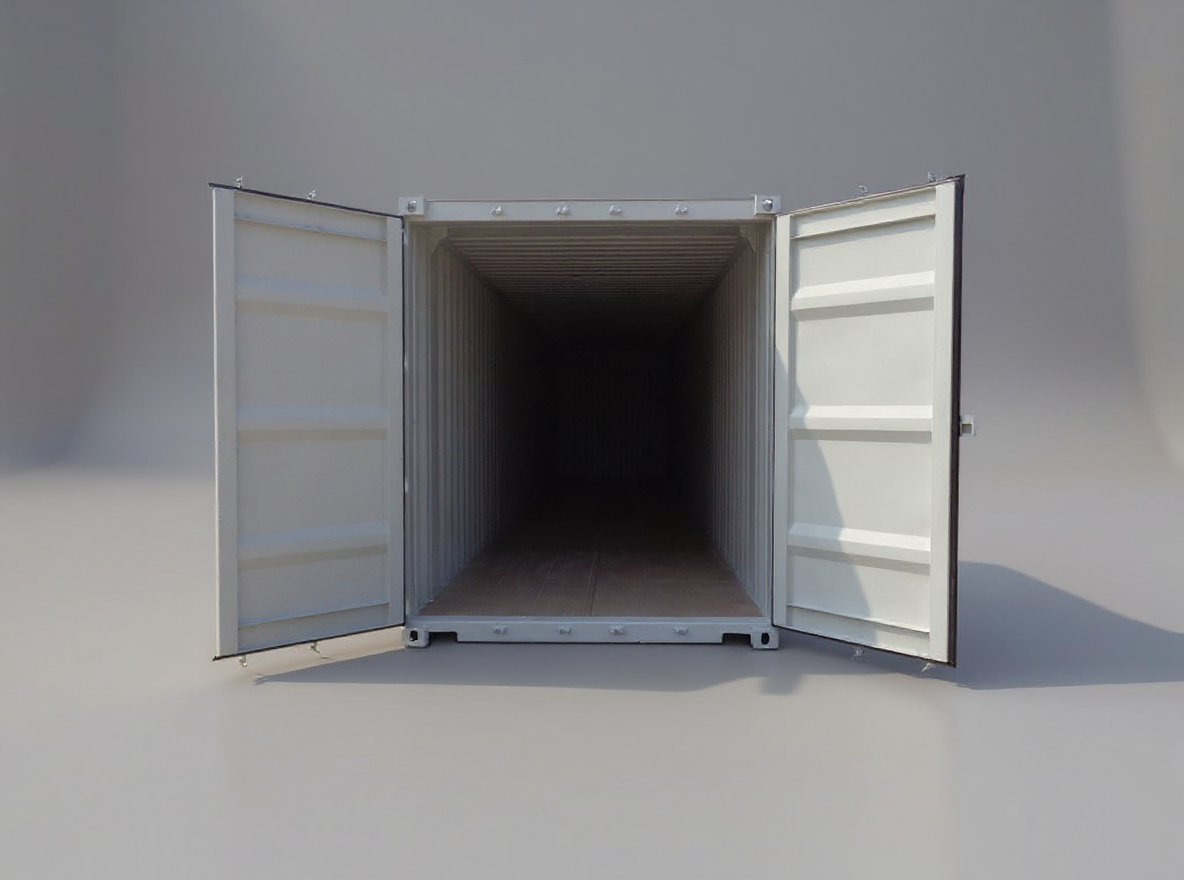

45 ft High Cube Container One way
45 ft high cube box on ISO 1EEE external dimensions.
Photography
4 photographsConfigure
Configure this unit
Your selection travels with the enquiry, so the offer starts from what you chose.
Options
Your configuration
As published, one unit.
Fixed quote in 3 to 5 working days Pricing on request. Contact us for a tailored offer.
- CSC certified
- EU delivery
- B2B invoice
- EN 1090 EXC2 steel
Before you ask
What buyers ask first
- Condition
- One way: bought in as a finished marine container, not built in our hall.
- Standard fittings
- Rear door with locking rod, high-placed handles, lockbox with special lock option
- Lead time
- 6 to 10 weeks, catalogue purchase.
- Offer
- Fixed price and lead time, typically within 3 to 5 working days.
- Delivery
- EXW Bánovce nad Bebravou by default, DAP and DDP on request.
From the catalogue record and the company facts. Binding terms are set in the written offer.
Key figures
45 ft High Cube Container
Last updated:
- External length
- 13 716mm
- External width
- 2 438mm
- External height
- 2 896mm
- Max payload
- 27 860kg
- Internal volume
- 85.9m³
- Tare weight
- 4 640kg
To scale
The unit beside a person
Drawn from the unit's own published millimetres, beside a 1.80 m person. Drag to turn it; the colour follows your choice in the configurator.
Drag to turn, arrow keys to rotate
Drawn to the published dimensions. The photographs show the unit as delivered.
Technical specifications
19 figures in 8 groups
Every figure is from the Manufacturer data sheet; the designation rows follow ISO 668:2020.
| ISO 668 designation | 1EEEISO 668:2020 |
|---|---|
| ISO 6346 size and type code | L5G1ISO 668:2020 |
| External length | 13 716 mm |
|---|---|
| External width | 2 438 mm |
| External height | 2 896 mm |
| Internal length | 13 556 mm |
|---|---|
| Internal width | 2 350 mm |
| Internal height | 2 698 mm |
| Door opening width | 2 340 mm |
|---|---|
| Door opening height | 2 585 mm |
| Tare weight | 4 640 kg |
|---|---|
| Max payload | 27 860 kg |
| Max gross mass | 32 500 kg |
| Internal volume | 85.9 m³ |
|---|---|
| Internal volume in cubic feet | 3033.5 ft3 |
| Construction material | Corten steel |
|---|---|
| Floor construction | Hardwood |
| Standard fittings | Rear door with locking rod, high-placed handles, lockbox with special lock option |
|---|---|
| Paint finish | RAL 7035 (light grey) |
Specification notes
- Max gross 32,500 kg is vendor specific. ISO 668:2020 rates 1EEE at 30,480 kg.
Certification
Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.
- ISO 9001QualityAudited quality management. Every container follows one documented, repeatable process.
- ISO 14001EnvironmentCertified environmental management across the whole production line.
- EN ISO 3834-2WeldingTop-level certification for fusion-welding quality in steel fabrication.
- EN 1090-1EXC2Structural steel executed to EXC2, the class required for load-bearing welded structures.
- CSC plateTransportContainer Safety Convention plate. Approved for international stacking and transport.
Compare within the family
ISO shipping: 12 units on the figures that matter for this one.
| SKU | External length | External width | External height | Max payload | Internal volume | Tare weight |
|---|---|---|---|---|---|---|
| 6 ft Mini ContainerOne wayTC-MINI-06 | 1 829 mm | 1 960 mm | 1 920 mm | 4 400 kg | 5.45 m³ | 600 kg |
| 8 ft Mini ContainerOne wayTC-MINI-08 | 2 438 mm | 2 200 mm | 2 260 mm | 5 100 kg | 9.95 m³ | 900 kg |
| 8 ft High Cube Mini ContainerOne wayTC-MINI-08-HC | 2 438 mm | 2 200 mm | 2 565 mm | 5 000 kg | 11.4 m³ | 1 000 kg |
| 10 ft Mini ContainerOne wayTC-MINI-10 | 2 991 mm | 2 438 mm | 2 591 mm | 8 910 kg | 16 m³ | 1 250 kg |
| 10 ft High Cube Mini ContainerOne wayTC-MINI-10-HC | 2 991 mm | 2 438 mm | 2 896 mm | 10 000 kg | 18 m³ | 1 350 kg |
| 20 ft Low Cube ContainerOne wayTC-ISO-20-LC | 6 058 mm | 2 438 mm | 2 438 mm | 28 330 kg | 31 m³ | 2 150 kg |
| 20 ft Standard Dry Van ContainerOne wayTC-ISO-20-DV | 6 058 mm | 2 438 mm | 2 591 mm | 28 480 kg | 33.1 m³ | 2 000 kg |
| 20 ft High Cube ContainerOne wayTC-ISO-20-HC | 6 058 mm | 2 438 mm | 2 896 mm | 28 330 kg | 37.4 m³ | 2 150 kg |
| 40 ft Standard Dry Van ContainerOne wayTC-ISO-40-DV | 12 192 mm | 2 438 mm | 2 591 mm | 27 100 kg | 67.6 m³ | 3 380 kg |
| 40 ft High Cube ContainerOne wayTC-ISO-40-HCSize down | 12 192 mm | 2 438 mm | 2 896 mm | 27 000 kg | 76.3 m³ | 3 480 kg |
| 45 ft High Cube ContainerOne wayTC-ISO-45-HCThis unit | 13 716 mm | 2 438 mm | 2 896 mm | 27 860 kg | 85.9 m³ | 4 640 kg |
| 45 ft High Cube Pallet Wide ContainerOne wayTC-ISO-45-HC-PWSize up | 13 716 mm | 2 500 mm | 2 896 mm | 29 140 kg | 88.9 m³ | 4 860 kg |
