20 ft Sanitary Unit, Layout A

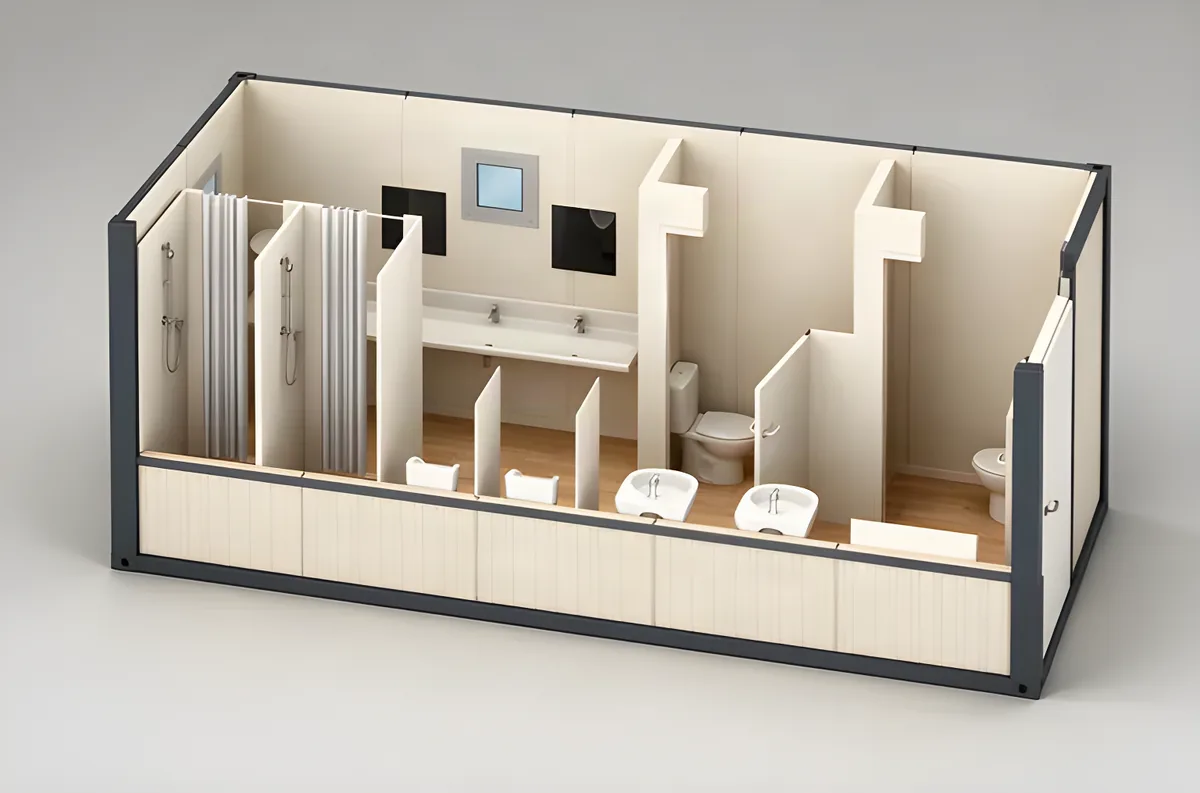

Full 20 ft sanitary block, base layout.

Last updated:
Photograph not uploaded yet
Sanitary
Photograph not uploaded yet
Photograph not uploaded yet
Photograph not uploaded yet
SKU: TC-SAN-20-A
On request
Pricing on request. Contact us for a tailored offer.
Request offerBack to category
CSC certified
EU delivery
B2B invoice

Certification

  • ISO 9001
  • ISO 14001
  • ISO 3834-2
  • EN 1090-1
  • CSC plate

Tanax Containers production is certified to the following standards. They cover the manufacturing, finishing and quality system behind every unit we supply, not the individual container.

Technical specifications

Technical specifications 20 ft Sanitary Unit, Layout A
DesignationTC-SAN-20-AManufacturer data sheet
External dimensions
External length6 058 mmManufacturer data sheet
External width2 438 mmManufacturer data sheet
External height2 800 mmManufacturer data sheet
Internal dimensions
Internal height2 500 mmManufacturer data sheet
Loading
Floor load200 kg/m2Manufacturer data sheet
Snow load1.6 kN/m2Manufacturer data sheet
Stackable levels3Manufacturer data sheet
Climate and power
HeatingElectric convector heaterManufacturer data sheet
ElectricalFlush installation, fuse board, 230 V sockets, IP65 fittings with 2 x 18 W LED, external 400 V 5P 32 A industrial socket and plug, frame earthed via M10 bolt, to PN-HD 60364Manufacturer data sheet
Construction
Construction materialEXC2 to PN EN 1090-1, bolted cold-formed steel profiles, CE markedManufacturer data sheet
Floor construction2 PVC grey welded / 22 P5 chipboard / 100 mineral wool / 0.5 galvanised T-8 trapezoidal sheetManufacturer data sheet
Wall construction0.5 galvanised trapezoidal sheet RAL 7035 / 60 mineral wool / PE foil / 12 laminated chipboard whiteManufacturer data sheet
Roof construction0.5 galvanised steel sheet / 12 chipboard / 100 mineral wool / vapour barrier / 12 laminated chipboard RAL 9010Manufacturer data sheet
Configuration
Windows930 x 1295 PVC white, tilt and turn, double glazed U = 1.1 W/m2K, external roller shutterManufacturer data sheet
Certification
ConformityCE Declaration of PerformanceManufacturer data sheet
Quality standardsISO 9001, ISO 1090, ISO 3834, ISO 14001, ISO 27001, ISO 22301, PN-HD 60364, PN EN ISO 8501Manufacturer data sheet
Fittings and finish
Standard fittingsNot fitted as standard, available as the Lift optionManufacturer data sheet
Paint finishFrame RAL 3000Manufacturer data sheet
OptionsSR frame without perimeter gutters, L transport pockets, FP flat packManufacturer data sheet
