Septic container 20 ft
The septic container collects wastewater from toilet, shower and laundry containers on a site with no sewer. The tank is built into a half-height 20 ft ISO frame, so it is lifted, moved and stacked like any other container. Sanitary containers pump into it through a hose. A vacuum tanker empties it through the valve at the end.
- FormatISO 20 ft, half height
- Footprint6,058 × 2,438 mm
- Module height1,219 mm
- Tank body4,000 × 2,000 × 800 mm
To scale

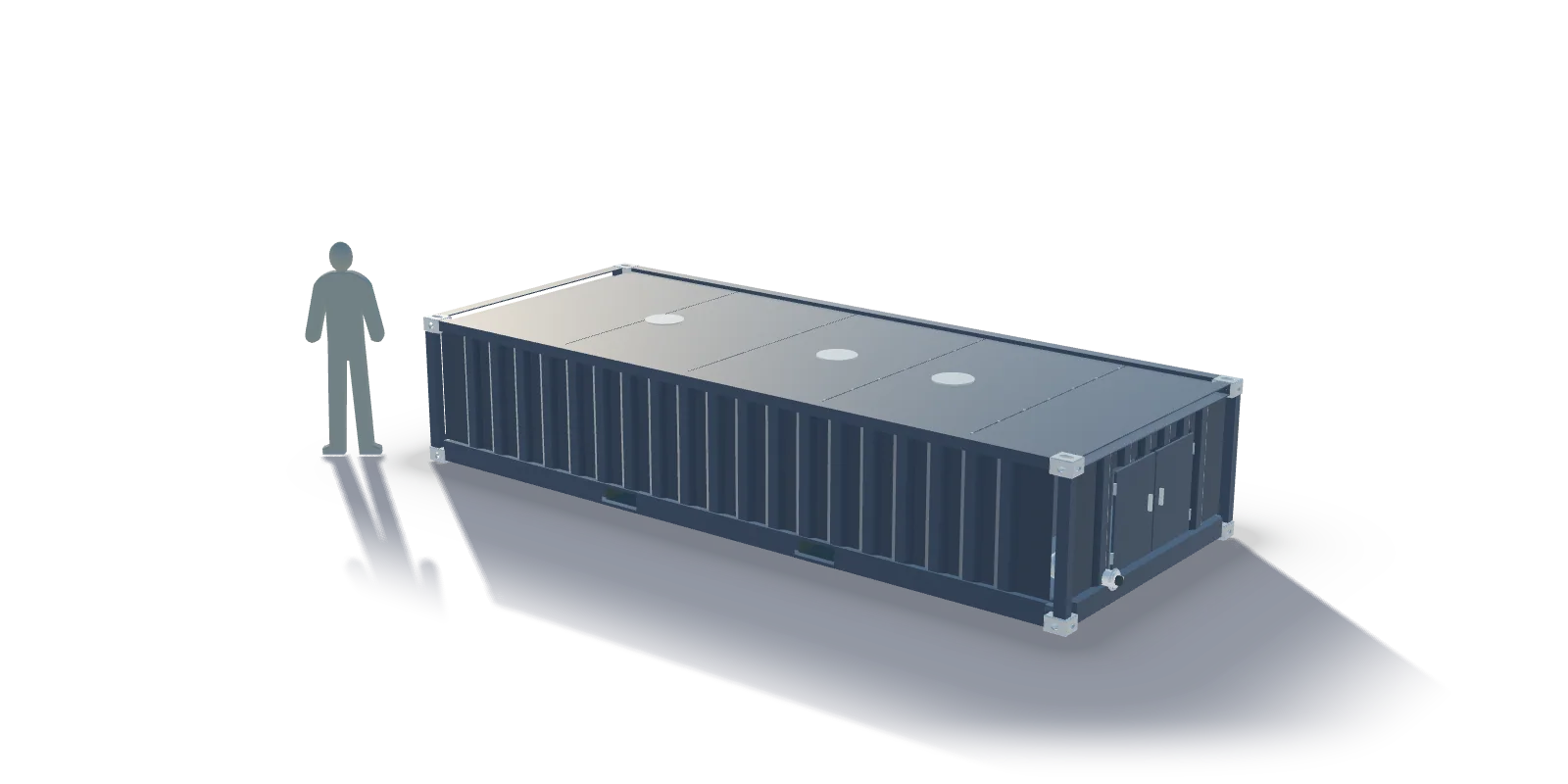

The unit beside a person
Drawn from the published dimensions, beside a 1.80 m person. Drag to turn it.
Drawn to the published dimensions. The positions of fittings are representative.
Request an offerBuilt like a container
A welded S355 steel frame with ISO corner castings at all eight corners, corrugated steel side walls and forklift pockets in the bottom rails. The footprint is a standard 20 ft, 6,058 × 2,438 mm. The module is 1,219 mm high, so two of them stack to the height of one standard container and travel on one trailer.
Inside
The tank body measures 4,000 × 2,000 × 800 mm. Inlet connections and a manhole sit on top of the tank, under removable roof plates. A sight glass shows the level. At one end a service cabinet with doors holds the outlet ball valve, so emptying is done from the ground without opening the roof.
On site
Set it on level ground next to the sanitary containers. Connect their pump outlets to the inlets on top. When the sight glass shows it is full, a vacuum tanker or our hook-lift fecal cistern connects to the valve in the cabinet and empties it.
Tanax design
Designed by Tanax and made to order in Slovakia. The design and production drawings are ours, so connections and fittings can be adapted to your project.
Specification
| Format | ISO 20 ft, half-height module |
|---|---|
| Footprint | 6,058 × 2,438 mm |
| Module height | 1,219 mm. Two modules stack to 2,438 mm, the height of a standard container |
| Frame | Welded structural steel S355, ISO corner castings, corrugated side walls, forklift pockets |
| Floor | 5 mm checker plate |
| Tank body | 4,000 × 2,000 × 800 mm |
| Inlets | Inlet connections and a manhole on top of the tank, under removable roof plates |
| Outlet | Ball valve with outlet pipe in a service cabinet with doors at one end |
| Level check | Sight glass |
| Handling | Crane via ISO corners, forklift pockets, transport on any 20 ft container trailer or flatrack |
| Design | Tanax, 2023, made to order in Slovakia |
Figures as published by Tanax. Anything not listed here is confirmed with the offer.
FAQ
Questions procurement asks
Does it need a sewer connection?
No. It is a holding tank. The wastewater stays in the tank until a vacuum tanker empties it.
How is it moved?
Like any 20 ft container: by crane on the ISO corners, by forklift in the pockets, on a standard container trailer.
Can it be stacked?
Yes. The module is half height, two of them stack to the height of a standard container.
How is it emptied?
Through the ball valve in the service cabinet at the end, by a vacuum tanker or by our hook-lift fecal cistern.
Tell us how many people the site serves and how often it can be emptied. We size the setup and send an offer.
